Z300 Series
Available models: Z335EZ345MZ345RZ355EZ355RZ365RZ375R
Details:

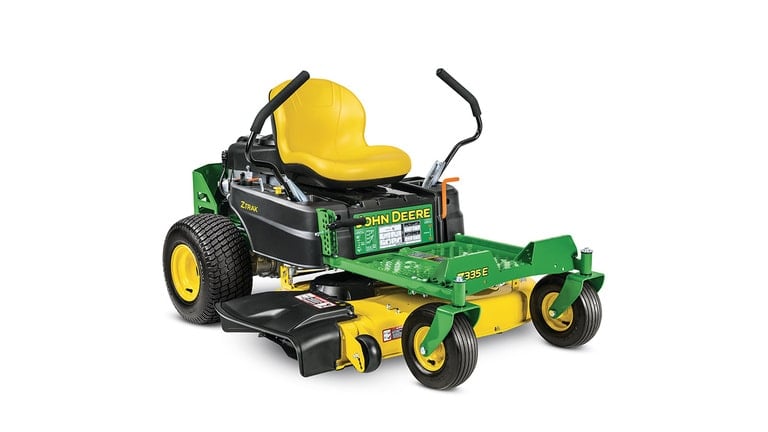

Z335E
ZTrak™ Mower with 42-in. Deck
- 20 HP* (14.9 kW) V-Twin engine
- 42-in (107 cm) Accel Deep™ Mower Deck, compatible with optional MulchControl™ kit
- Dual hydrostatic Hydro-Gear® transmission, maximum forward speed 7 mph
- 2-year/120-hour bumper-to-bumper warranty
Features:
- Smooth and powerful V-twin engine
- Get an even cut with the 42-in. (107-cm) Accel Deep™ (42A) Mower Deck
- Comfortable ride delivered by operator station with adjustable controls and seat position
- Convenient machine service includes bumper-to-bumper warranty
- Easy to find and use instruments and controls
- Great appearance, reliability, and performance delivered by a heavy-duty design
- Reliable and easy-to-use electric power take-off (PTO) clutch
- Efficiency and durability from dual transmissions with large, 1-in. (2.5-cm) diameter axles
- Easy refueling with a conveniently located fuel tank
- Help maintain your mower and lawn with the MowerPlus™ app and connector
Specifications:
Key Specs
-
Engine power
20 hp
14.9 kW -
Engine model number
M40 Intek
-
Forward speed
0-7 mph
0-11.3 km/h -
Front caster tires
11x4-5
-
Drive tires
18x8.5-8
-
Seat back height
Medium back, 15 in.
38.1 cm -
Width of cut
Accel Deep™ mower deck, 42 in.
107 cm -
Mulching system
Optional MulchControl™ attachment
-
Warranty
2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
20 hp
14.9 kW -
Model number
M40 Intek
-
Displacement
40 cu in.
656 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
300 CCA -
Choke/speed control
Single lever
-
Cooling method
Air
-
Fuel tank capacity
2.1 U.S. gal.
7.9 L -
Fuel gauge
Low-fuel light
Drive train
-
Dual hydros
Hydro-Gear EZT with 1-in. (2.5-cm) axles
Travel speed
-
Forward speed
0-7 mph
0-11.3 km/h -
Reverse speed
0-3.5 mph
0-5.6 km/h -
Speed and direction control
Twin levers
-
Control adjustment
2-height/9-fore-aft, 18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
11x4-5
-
Front caster bearings
Sealed ball bearings
-
Drive tires
18x8.5-8
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
Medium back, 15 in.
38.1 cm -
Fore-aft adjustment
2.5 in.
6.35 cm -
Seat suspension
Two springs
Lift system
-
Type
Hand lever with optional foot lift
-
Mower cut height
1-4 in.
2.5-10.2 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
Accel Deep™ mower deck, 42 in.
107 cm -
Type
Side discharge
-
Mower deck material
12 gauge
0.105 in.
2.7 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 105 lb-ft
142 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
47.5 in.
121 cm -
Overall length
72.2 in.
183.5 cm -
Width without mower
44 in.
111.9 cm -
Width with mower
51.9 in.
131.9 cm -
Width with mower (deflector raised for storage)
46.3 in.
117.6 cm -
Height
36.3 in.
92.2 cm -
Weight
With mower and fuel, 491 lb
223 kg
Operation
-
Rollover protective structure (ROPS)
No
-
Slope operating limit
13 degrees; 10 degrees with Material Collection System
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Mower wash port makes cleaning the deck easier
-
Note 2
Flip-up foot platform for easy service access
-
Note 3
18-position adjustable motion-control levers
-
Warranty
2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl™ attachment
-
Rubber floor mat
Yes
-
Sun shade
Yes
-
Mounted sprayer
Not available
-
Storage cover
Yes
-
Light kit
Dual headlight kit
-
Material collection system
Two-bag cut-and-throw MCS, 6.5 bu
229.1 L
Back to Top
Details:
Z345M
ZTrak™ Mower with 42-in. Deck
- 22 hp* (16.4 kW) V-Twin engine
- 42-in (107 cm) Accel Deep™ Mower Deck, compatible with optional MulchControl™ kit
- 18-in two spring suspension seat with armrests
- 2-year/120-hour bumper-to-bumper warranty
Features:
- Great performance and long life with a smooth and powerful V-twin engine
- Get an even cut with the 42-in. (107-cm) Accel Deep™ (42A) Mower Deck
- Comfortable ride delivered by operator station with adjustable controls and seat position
- Convenient machine service includes bumper-to-bumper warranty
- Easy to find and use instruments and controls
- Great appearance, reliability, and performance delivered by a heavy-duty design
- Reliable and easy-to-use electric power take-off (PTO) clutch
- Efficiency and durability from dual transmissions with large, 1-in. (2.5-cm) diameter axles
- Easy refueling with a conveniently located fuel tank
- Help maintain your mower and lawn with the MowerPlus™ app and connector
Specifications:
Key Specs
-
Engine power
22 hp
16.4 kW -
Engine model number
M44 Intek
-
Forward speed
0-7 mph
0-11.3 km/h -
Front caster tires
11x4-5
-
Drive tires
18x8.5-8
-
Seat back height
Medium back with armrests, 18 in.
45.7 cm -
Width of cut
Accel Deep™ mower deck, 42 in.
107 cm -
Mulching system
Optional MulchControl™ attachment
-
Warranty
2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
22 hp
16.4 kW -
Model number
M44 Intek
-
Displacement
44.2 cu in.
724 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
300 CCA -
Choke/speed control
Single lever
-
Cooling method
Air
-
Fuel tank capacity
2.1 U.S. gal.
7.9 L -
Fuel gauge
Low-fuel light
Drive train
-
Dual hydros
Hydro-Gear EZT with 1-in. (2.5-cm) axles
Travel speed
-
Forward speed
0-7 mph
0-11.3 km/h -
Reverse speed
0-3.5 mph
0-5.6 km/h -
Speed and direction control
Twin levers
-
Control adjustment
2-height/9-fore-aft, 18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
11x4-5
-
Front caster bearings
Sealed ball bearings
-
Drive tires
18x8.5-8
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
Medium back with armrests, 18 in.
45.7 cm -
Fore-aft adjustment
2.5 in.
6.35 cm -
Seat suspension
Two springs
Lift system
-
Type
Hand lever with optional foot lift
-
Mower cut height
1-4 in.
2.5-10.2 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
Accel Deep™ mower deck, 42 in.
107 cm -
Type
Side discharge
-
Mower deck material
12 gauge
0.105 in.
2.7 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 105 lb-ft
142 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
47.5 in.
121 cm -
Overall length
72.2 in.
183.5 cm -
Width without mower
44 in.
111.9 cm -
Width with mower
51.9 in.
131.9 cm -
Width with mower (deflector raised for storage)
46.3 in.
117.6 cm -
Height
40.1 in.
101.9 cm -
Weight
With mower and fuel, 496 lb
225 kg
Operation
-
Rollover protective structure (ROPS)
No
-
Slope operating limit
13 degrees; 10 degrees with Material Collection System
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Mower wash port makes cleaning the deck easier
-
Note 2
Flip-up foot platform for easy service access
-
Note 3
18-position adjustable motion-control levers
-
Warranty
2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl attachment
-
Rubber floor mat
Yes
-
Sun shade
Yes
-
Mounted sprayer
Not available
-
Storage cover
Yes
-
Light kit
Dual headlight kit
-
Material collection system
Two-bag cut-and-throw MCS, 6.5 bu
229.1 L
Back to Top
Details:

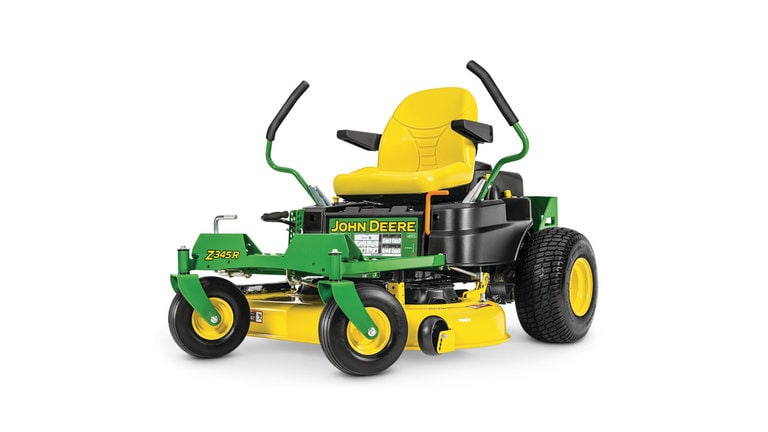

Z345R
ZTrak™ Mower with 42-in. Deck
- 22 hp* (16.4 kW) V-Twin engine
- 42-in (107 cm) Accel Deep™ Mower Deck, compatible with optional MulchControl™ kit
- 18-in two spring suspension seat with armrests
- Rubber floor mats, foot lift, and premium control levers come standard
- 2-year/120-hour bumper-to-bumper warranty
Features:
- Great performance and long life with a smooth and powerful V-twin engine
- Get an even cut with the 42-in. (107-cm) Accel Deep™ (42A) Mower Deck
- Comfortable ride delivered by operator station with adjustable controls and seat position
- Convenient machine service includes bumper-to-bumper warranty
- Easy-to-find-and-use instruments and controls
- Great appearance, reliability, and performance delivered by a heavy-duty design
- Efficiency and durability from dual transmissions with large, 1-in. (2.5-cm) diameter axles
- Easy refueling with a conveniently located fuel tank
- Help maintain your mower and lawn with the MowerPlus™ app and connector
Specifications:
Key Specs
-
Engine power
22 hp
16.4 kW -
Engine model number
M44 Intek
-
Forward speed
0-7 mph
0-11.3 km/h -
Front caster tires
11x4-5
-
Drive tires
18x8.5-8
-
Seat back height
Medium back with armrests, 18 in.
45.7 cm -
Width of cut
Accel Deep™ mower deck, 42 in.
107 cm -
Mulching system
Optional MulchControl™ attachment
-
Warranty
2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
22 hp
16.4 kW -
Model number
M44 Intek
-
Displacement
44.2 cu in.
724 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
300 CCA -
Choke/speed control
Single lever
-
Cooling method
Air
-
Fuel tank capacity
2.1 U.S. gal.
7.9 L -
Fuel gauge
Low-fuel light
Drive train
-
Dual hydros
Hydro-Gear EZT with 1-in. (2.5-cm) axles
Travel speed
-
Forward speed
0-7 mph
0-11.3 km/h -
Reverse speed
0-3.5 mph
0-5.6 km/h -
Speed and direction control
Twin premium levers
-
Control adjustment
2-height/9-fore-aft, 18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
11x4-5
-
Front caster bearings
Sealed ball bearings
-
Drive tires
18x8.5-8
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
Medium back with armrests, 18 in.
45.7 cm -
Fore-aft adjustment
2.5 in.
6.35 cm -
Seat suspension
Two springs
Lift system
-
Type
Hand lever and foot lift
-
Mower cut height
1-4 in.
2.5-10.2 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
Accel Deep™ mower deck, 42 in.
107 cm -
Type
Side discharge
-
Mower deck material
12 gauge
0.105 in.
2.7 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 105 lb-ft
142 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
47.5 in.
121 cm -
Overall length
72.2 in.
183.5 cm -
Width without mower
44 in.
111.9 cm -
Width with mower
51.9 in.
131.9 cm -
Width with mower (deflector raised for storage)
46.3 in.
117.6 cm -
Height
40.1 in.
101.9 cm -
Weight
With mower and fuel, 500 lb
227 kg
Operation
-
Rollover protective structure (ROPS)
No
-
Slope operating limit
13 degrees; 10 degrees with Material Collection System
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Mower wash port makes cleaning the deck easier
-
Note 2
Flip-up foot platform for easy service access
-
Note 3
18-position adjustable motion-control levers
-
Warranty
2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl™ attachment
-
Rubber floor mat
Standard
-
Sun shade
Yes
-
Mounted sprayer
Not available
-
Storage cover
Yes
-
Light kit
Dual headlight kit
-
Material collection system
Two-bag cut-and-throw MCS, 6.5 bu
229.1 L
Back to Top
Details:
Z355E
ZTrak™ Mower with 48-in. Deck
- 22 hp* (16.4 kW) V-Twin engine
- 48-in (122 cm) Accel Deep™ Mower Deck, compatible with optional MulchControl™ kit
- Heavy-duty dual hydrostatic Hydro-Gear® transmission, maximum forward speed 7 mph
- 2-year/120-hour bumper-to-bumper warranty
Features:
- Great performance and long life with a smooth and powerful V-twin engine
- Get a clean cut with the flat-top design of the 48-in. (122-cm) Accel Deep™ (48A) Mower Deck
- Comfortable ride delivered by operator station with adjustable controls and seat position
- Convenient machine service includes bumper-to-bumper warranty
- Easy to find and use instruments and controls
- Great appearance, reliability, and performance delivered by a heavy-duty design
- Reliable and easy-to-use electric power take-off (PTO) clutch
- Efficiency and durability from dual transmissions with large, 1-in. (2.5-cm) diameter axles
- Easy refueling with a conveniently located fuel tank
- Help maintain your mower and lawn with the MowerPlus™ app and connector
Specifications:
Key Specs
-
Engine power
22 hp
16.4 kW -
Engine model number
M44 Intek
-
Forward speed
0-7 mph
0-11.3 km/h -
Front caster tires
13x5-6
-
Drive tires
20x9-10
-
Seat back height
Medium back with armrests, 15 in.
38.1 cm -
Width of cut
Accel Deep™ mower deck, 48 in.
122 cm -
Mulching system
Optional MulchControl™ attachment
-
Warranty
2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
22 hp
16.4 kW -
Model number
M44 Intek
-
Displacement
44.2 cu in.
724 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
300 CCA -
Choke/speed control
Single lever
-
Cooling method
Air
-
Fuel tank capacity
2.1 U.S. gal.
7.9 L -
Fuel gauge
Low-fuel light
Drive train
-
Dual hydros
Hydro-Gear EZT with 1-in. (2.5-cm) axles
Travel speed
-
Forward speed
0-7 mph
0-11.3 km/h -
Reverse speed
0-3.5 mph
0-5.6 km/h -
Speed and direction control
Twin levers
-
Control adjustment
2-height/9-fore-aft, 18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
20x9-10
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
Medium back with armrests, 15 in.
38.1 cm -
Fore-aft adjustment
2.5 in.
6.35 cm -
Seat suspension
Two springs
Lift system
-
Type
Hand lever with optional foot lift
-
Mower cut height
1-4 in.
2.5-10.2 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
Accel Deep™ mower deck, 48 in.
122 cm -
Type
Side discharge
-
Mower deck material
10 gauge
0.135 in.
3.4 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 105 lb-ft
142 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
47.5 in.
121 cm -
Overall length
72.2 in.
183.5 cm -
Width without mower
44 in.
111.9 cm -
Width with mower
62.6 in.
158.8 cm -
Width with mower (deflector raised for storage)
54 in.
137 cm -
Height
36.3 in.
92.2 cm -
Weight
With mower and fuel, 570 lb
259 kg
Operation
-
Rollover protective structure (ROPS)
No
-
Slope operating limit
13 degrees
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Mower wash port makes cleaning the deck easier
-
Note 2
Flip-up foot platform for easy service access
-
Note 3
18-position adjustable motion-control levers
-
Warranty
2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl™ attachment
-
Rubber floor mat
Yes
-
Sun shade
Yes
-
Mounted sprayer
Not available
-
Storage cover
Yes
-
Light kit
Dual headlight kit
-
Material collection system
Not available
Back to Top
Details:
Z355R
ZTrak™ Mower with 48-in. Deck
- 22 hp* (16.4 kW) V-Twin engine
- 48-in (122 cm) Accel Deep™ Mower Deck, compatible with optional MulchControl™ kit
- 18-in two spring suspension seat with armrests
- Rubber floor mats, foot lift, and premium control levers come standard
- 2-year/120-hour bumper-to-bumper warranty
Features:
- Great performance and long life with a smooth and powerful V-twin engine
- Get a clean cut with the flat-top design of the 48-in. (122-cm) Accel Deep™ (48A) Mower Deck
- Comfortable ride delivered by operator station with adjustable controls and seat position
- Convenient machine service includes bumper-to-bumper warranty
- Easy-to-find-and-use instruments and controls
- Great appearance, reliability, and performance delivered by a heavy-duty design
- Efficiency and durability from dual transmissions with large, 1-in. (2.5-cm) diameter axles
- Easy refueling with a conveniently located fuel tank
- Help maintain your mower and lawn with the MowerPlus™ app and connector
Specifications:
Key Specs
-
Engine power
22 hp
16.4 kW -
Engine model number
M44 Intek
-
Forward speed
0-7 mph
0-11.3 km/h -
Front caster tires
13x5-6
-
Drive tires
20x9-10
-
Seat back height
Medium back with armrests, 18 in.
45.7 cm -
Width of cut
Accel Deep™ mower deck, 48 in.
122 cm -
Mulching system
Optional MulchControl™ attachment
-
Warranty
2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
22 hp
16.4 kW -
Model number
M44 Intek
-
Displacement
44.2 cu in.
724 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
300 CCA -
Choke/speed control
Single lever
-
Cooling method
Air
-
Fuel tank capacity
2.1 U.S. gal.
7.9 L -
Fuel gauge
Low-fuel light
Drive train
-
Dual hydros
Hydro-Gear EZT with 1-in. (2.5-cm) axles
Travel speed
-
Forward speed
0-7 mph
0-11.3 km/h -
Reverse speed
0-3.5 mph
0-5.6 km/h -
Speed and direction control
Twin premium levers
-
Control adjustment
2-height/9-fore-aft, 18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
20x9-10
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
Medium back with armrests, 18 in.
45.7 cm -
Fore-aft adjustment
2.5 in.
6.35 cm -
Seat suspension
Two springs
Lift system
-
Type
Hand lever and foot lift
-
Mower cut height
1-4 in.
2.5-10.2 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
Accel Deep™ mower deck, 48 in.
122 cm -
Type
Side discharge
-
Mower deck material
10 gauge
0.135 in.
3.4 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 105 lb-ft
142 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
47.5 in.
121 cm -
Overall length
72.2 in.
183.5 cm -
Width without mower
44 in.
111.9 cm -
Width with mower
62.6 in.
158.8 cm -
Width with mower (deflector raised for storage)
54 in.
137 cm -
Height
40.1 in.
101.9 cm -
Weight
With mower and fuel, 575 lb
261 kg
Operation
-
Rollover protective structure (ROPS)
No
-
Slope operating limit
13 degrees
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Mower wash port makes cleaning the deck easier
-
Note 2
Flip-up foot platform for easy service access
-
Note 3
18-position adjustable motion-control levers
-
Warranty
2 year or 120 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl™ attachment
-
Rubber floor mat
Standard
-
Sun shade
Yes
-
Mounted sprayer
Not available
-
Storage cover
Yes
-
Light kit
Dual headlight kit
-
Material collection system
Not available
Back to Top
Details:
Z365R
ZTrak™ Mower with 48-in. Deck
- 24 hp* (17.9 kW) V-Twin engine
- 48-in (122 cm) Accel Deep™ Mower Deck, with factory standard MulchControl™ kit
- Easy Change™ 30-Second Oil Change System, 18-in seat with armrests, rubber floor mats, foot lift, and premium control levers come standard
- 2-year/120-hour bumper-to-bumper warranty
Features:
- Get great performance and long life with a smooth and powerful V-twin engine
- Changing the engine oil is easy, quick, and clean with the John Deere Easy Change™ 30-second oil change system
- Extra reliability and longer life with a full-featured engine
- Easily change to and from mulching with 48-in. (122-cm) Accel Deep™ (48A) Mower Deck with standard MulchControl™ system
- Comfortable ride delivered by operator station with adjustable controls and seat position
- Convenient machine service includes bumper-to-bumper warranty
- Easy-to-find-and-use instruments and controls
- Great appearance, reliability, and performance delivered by a heavy-duty design
- Efficiency and durability from dual transmissions with large, 1-in. (2.5-cm) diameter axles
- Easy refueling with a conveniently located fuel tank
- Help maintain your mower and lawn with the MowerPlus™ app and connector
Specifications:
Key Specs
-
Engine power
24 hp
17.9 kW -
Engine model number
M44 Extended Life Series (ELS) with ECOF (Easy Change Oil Filter)
-
Forward speed
0-7 mph
0-11.3 km/h -
Front caster tires
13x5-6
-
Drive tires
20x9-10
-
Seat back height
Medium back with armrests, 18 in.
45.7 cm -
Width of cut
Accel Deep™ mower deck, 48 in.
122 cm -
Mulching system
MulchControl™ attachment installed
-
Warranty
2 year or 120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
24 hp
17.9 kW -
Model number
M44 Extended Life Series (ELS) with ECOF (Easy Change Oil Filter)
-
Displacement
44.2 cu in.
724 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
300 CCA -
Choke/speed control
Single lever
-
Cooling method
Air
-
Fuel tank capacity
2.1 U.S. gal.
7.9 L -
Fuel gauge
Low-fuel light
Drive train
-
Dual hydros
Hydro-Gear EZT with 1-in. (2.5-cm) axles
Travel speed
-
Forward speed
0-7 mph
0-11.3 km/h -
Reverse speed
0-3.5 mph
0-5.6 km/h -
Speed and direction control
Twin premium levers
-
Control adjustment
2-height/9-fore-aft, 18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
20x9-10
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
Medium back with armrests, 18 in.
45.7 cm -
Fore-aft adjustment
While seated, 2.5 in.
6.35 cm -
Seat suspension
Two springs
Lift system
-
Type
Hand lever and foot lift
-
Mower cut height
1-4 in.
2.5-10.2 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
Accel Deep™ mower deck, 48 in.
122 cm -
Type
Side discharge
-
Mower deck material
10 gauge
0.135 in.
3.4 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 105 lb-ft
142 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
47.5 in.
121 cm -
Overall length
72.2 in.
183.5 cm -
Width without mower
44 in.
111.9 cm -
Width with mower
62.6 in.
158.8 cm -
Width with mower (deflector raised for storage)
54 in.
137 cm -
Height
40.1 in.
101.9 cm -
Weight
With mower and fuel, 575 lb
261 kg
Operation
-
Rollover protective structure (ROPS)
No
-
Slope operating limit
13 degrees
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Mower wash port makes cleaning the deck easier
-
Note 2
Flip-up foot platform for easy service access
-
Note 3
18-position adjustable motion-control levers
-
Warranty
2 year or 120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl™ attachment
-
Rubber floor mat
Standard
-
Sun shade
Yes
-
Mounted sprayer
Not available
-
Storage cover
Yes
-
Light kit
Dual headlight kit
-
Material collection system
Not available
Back to Top
Details:
Z375R
ZTrak™ Mower with 54-in. Deck
- 25 hp* (18.6 kW) V-Twin engine
- 54-in (137 cm) Accel Deep™ Mower Deck, compatible with optional MulchControl™ kit
- 18-in seat with armrests, rubber floor mats, foot lift, and premium control levers come standard
- 2-year/120-hour bumper-to-bumper warranty
Features:
- Superior performance and long life with a smooth and powerful V-twin engine
- Extra reliability and longer life with a full-featured engine
- Get a clean cut with the flat-top design of the 54-in. (138-cm) Accel Deep™ (54A) Mower Deck
- Comfortable ride delivered by operator station with adjustable controls and seat position
- Convenient machine service includes bumper-to-bumper warranty
- Easy-to-find-and-use instruments and controls
- Great appearance, reliability, and performance delivered by a heavy-duty design
- Efficiency and durability from dual transmissions with large, 1-in. (2.5-cm) diameter axles
- Easy refueling with a conveniently located fuel tank
- Help maintain your mower and lawn with the MowerPlus™ app and connector
Specifications:
Key Specs
-
Engine power
25 hp
18.6 kW -
Engine model number
M44 Extended Life Series (ELS)
-
Forward speed
0-7 mph
0-11.3 km/h -
Front caster tires
13x5-6
-
Drive tires
20x9-10
-
Seat back height
Medium back with armrests, 18 in.
45.7 cm -
Width of cut
Accel Deep™ mower deck, 54 in.
137 cm -
Mulching system
Optional MulchControl™ attachment
-
Warranty
year or 120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
25 hp
18.6 kW -
Model number
M44 Extended Life Series (ELS)
-
Displacement
44.2 cu in.
724 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
300 CCA -
Choke/speed control
Single lever
-
Cooling method
Air
-
Fuel tank capacity
2.1 U.S. gal.
8 L -
Fuel gauge
Low-fuel light
Drive train
-
Dual hydros
Hydro-Gear EZT with 1-in. (2.5-cm) axles
Travel speed
-
Forward speed
0-7 mph
0-11.3 km/h -
Reverse speed
0-3.5 mph
0-5.6 km/h -
Speed and direction control
Twin premium levers
-
Control adjustment
2-height/9-fore-aft, 18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
20x9-10
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
Medium back with armrests, 18 in.
45.7 cm -
Fore-aft adjustment
While seated, 2.5 in.
6.35 cm -
Seat suspension
Two springs
Lift system
-
Type
Hand lever and foot lift
-
Mower cut height
1-4 in.
2.5-10.2 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
Accel Deep™ mower deck, 54 in.
137 cm -
Type
Side discharge
-
Mower deck material
10 gauge
0.135 in.
3.4 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 105 lb-ft
142.4 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
47.5 in.
121 cm -
Overall length
72.2 in.
183.5 cm -
Width without mower
44 in.
111.9 cm -
Width with mower
68.8 in.
174.8 cm -
Width with mower (deflector raised for storage)
59.7 in.
151.6 cm -
Height
40.1 in.
101.9 cm -
Weight
With mower and fuel, 590 lb
268 kg
Operation
-
Rollover protective structure (ROPS)
No
-
Slope operating limit
13 degrees
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Mower wash port makes cleaning the deck easier
-
Note 2
Flip-up foot platform for easy service access
-
Note 3
18-position adjustable motion-control levers
-
Warranty
2 year or 120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl™ attachment
-
Rubber floor mat
Standard
-
Sun shade
Yes
-
Mounted sprayer
Not available
-
Storage cover
Yes
-
Light kit
Dual headlight kit
-
Material collection system
Not available
Back to Top
Z500 Series
Available models: Z515EZ530MZ530RZ545R
Details:

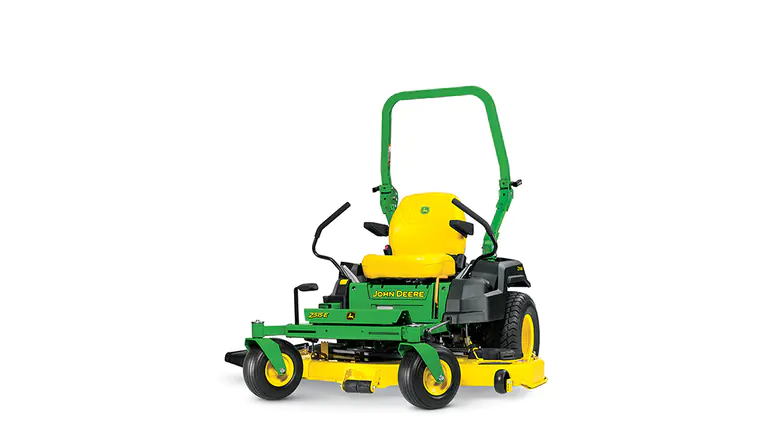

Z515E
Available in 54- and 60-inch mower deck sizes
- 24 hp* (17.9 kW) V-Twin engine
- 54-in (137 cm) Accel Deep™ deck, compatible with optional MulchControl™ kit
- Folding Rollover Protective Structure (ROPS)
- 18-in. cut and sewn seat with armrests and easy to read fuel gauge
- 4-year/300-hour bumper-to-bumper warranty
Features:
- Comfortable ride delivered by an operator station with adjustable controls and seat position
- Easy-to-see-and-use electric fuel gauge, instruments, and controls
- Superior cut quality and productivity from the flat-top design of Accel Deep™ Mower Decks
- Great performance and long life with a smooth and powerful 44.2-cu in. (724-cc) V-twin engine
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Great appearance, reliability, and performance delivered by a heavy-duty design
- Maximize mowing efficiency with dual transmissions that offer mowing speeds up to 8 mph (12.9 km/h)
- Convenient machine service includes 4-year bumper-to-bumper warranty
- Help maintain your mower and lawn with the MowerPlus™ app and connector
Specifications:
Key Specs
-
Engine power
24 hp
17.9 kW -
Engine model number
M44 Extended Life Series (ELS)
-
Forward speed
0-8 mph
0-12.9 km/h -
Front caster tires
13x6.5-6
-
Drive tires
22x9.5-10
-
Seat back height
Medium back with armrests, 18 in.
45.7 cm -
Width of cut
Accel Deep™ mower deck, 48 in.
122 cm
Accel Deep mower deck, 54 in.
137 cm
Accel Deep mower deck, 60 in.
152 cm -
Mulching system
Optional MulchControl™ attachment, 48 in.
122 cm
Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl attachment, 60 in.
152 cm -
Warranty
4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
24 hp
17.9 kW -
Model number
M44 Extended Life Series (ELS)
-
Displacement
44.2 cu in.
724 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
300 CCA -
Choke/speed control
Separate levers
-
Cooling method
Air
-
Fuel tank capacity
4.5 U.S. gal.
17 L -
Fuel gauge
Electric gauge and fuel level sight line
Drive train
-
Dual hydros
Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles
Travel speed
-
Forward speed
0-8 mph
0-12.9 km/h -
Reverse speed
0-4 mph
0-6.4 km/h -
Speed and direction control
Twin levers
-
Control adjustment
2-height/9-fore-aft, 18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x6.5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
22x9.5-10
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
Medium back with armrests, 18 in.
45.7 cm -
Fore-aft adjustment
While seated, 3 in.
7.6 cm -
Seat suspension
Two springs
Lift system
-
Type
Foot lift
-
Mower cut height
1-4 in.
2.5-10.2 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
Accel Deep mower deck, 48 in.
122 cm
Accel Deep mower deck, 54 in.
137 cm
Accel Deep mower deck, 60 in.
152 cm -
Type
Side discharge
-
Mower deck material
10 gauge
0.135 in.
3.4 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 105 lb-ft
142.4 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
49.2 in.
125 cm -
Overall length
76.9 in.
195.3 cm -
Width without mower
46.6 in.
118.4 cm -
Width with mower
48A - 62.8 in.
159.5 cm
54A - 68.6 in.
174.2 cm
60A - 73.4 in.
186.4 cm -
Width with mower (deflector raised for storage)
48A - 54 in.
137 cm
54A - 59.7 in.
152 cm
60A - 65.6 in.
167 cm -
Height
47.6 in.
121 cm
With rollover protective structure (ROPS) up position - 70.1 in.
178 cm -
Weight
With mower and fuel, 48A, 768 lb
349 kg
With mower and fuel, 54A, 776 lb
353 kg
With mower and fuel, 60A, 784 lb
356 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
15 degrees, 10 degrees with an MCS
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Mower wash port makes cleaning the deck easier
-
Note 2
Flip-up foot platform for easy service access
-
Note 3
18-position adjustable motion-control levers
-
Warranty
4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl attachment, 48 in.
122 cm
Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl attachment, 60 in.
152 cm -
Rubber floor mat
Optional
-
Sun shade
Optional
-
Mounted sprayer
No
-
Storage cover
No
-
Light kit
Optional 4-point LED Light kit
-
Material collection system
Power Flow rear bagger, 6.5 bu
230 L
Not available on 60A
Back to Top
Details:
Z530M
Available in 48-, 54- and 60-inch mower deck sizes
- 24 hp* (17.9 kW) V-Twin engine
- 48-in (122 cm) Accel Deep™ deck, compatible with optional MulchControl™ kit
- 20-in. cut and sewn seat with ComfortGlide™ suspension
- Folding Rollover Protective Structure (ROPS)
- Rubber floor mats, foot lift, and premium control levers come standard
- 4-year/300-hour bumper-to-bumper warranty
Features:
- Comfortable ride delivered by an operator station with adjustable controls and ComfortGlide™ suspension
- Easy-to-see-and-use electric fuel gauge, instruments, and controls
- Superior cut quality and productivity from the flat-top design of Accel Deep™ Mower Decks
- Superior performance and long life with a smooth and powerful 44.3-cu in. (726-cc) V-twin engine
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Great appearance, reliability, and performance delivered by a heavy-duty design
- Maximize mowing efficiency with dual transmissions that offer mowing speeds up to 8 mph (12.9 km/h)
- Convenient machine service includes 4-year bumper-to-bumper warranty
- Help maintain your mower and lawn with the MowerPlus™ app and connector
Specifications:
Key Specs
-
Engine power
24 hp
17.9 kW -
Engine model number
FR730V
-
Forward speed
0-8 mph
0-12.9 km/h -
Front caster tires
13x6.5-6
-
Drive tires
22x9.5-10
-
Seat back height
High back with armrests and ComfortGlide™, 20 in.
50.8 cm -
Width of cut
Accel Deep™ mower deck, 48 in.
122 cm
Accel Deep mower deck, 54 in.
137 cm
Accel Deep mower deck, 60 in.
152 cm -
Mulching system
Optional MulchControl™ attachment, 48 in.
122 cm
Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl attachment, 60 in.
152 cm -
Warranty
4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
24 hp
17.9 kW -
Model number
FR730V
-
Displacement
44.3 cu in.
726 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
300 CCA -
Choke/speed control
Separate control levers
-
Cooling method
Air
-
Fuel tank capacity
4.5 U.S. gal.
17 L -
Fuel gauge
Electric gauge and fuel level sight line
Drive train
-
Dual hydros
Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles
Travel speed
-
Forward speed
0-8 mph
0-12.9 km/h -
Reverse speed
0-4 mph
0-6.4 km/h -
Speed and direction control
Twin premium levers
-
Control adjustment
2-height/9-fore-aft, 18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x6.5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
22x9.5-10
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
High back with armrests and ComfortGlide, 20 in.
50.8 cm -
Fore-aft adjustment
While seated, 3 in.
7.6 cm -
Seat suspension
Two springs and ComfortGlide
Lift system
-
Type
Foot lift
-
Mower cut height
1-4 in.
2.5-10.2 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
Accel Deep mower deck, 48 in.
122 cm
Accel Deep mower deck, 54 in.
137 cm
Accel Deep mower deck, 60 in.
152 cm -
Type
Side discharge
-
Mower deck material
10 gauge
0.135 in.
3.4 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 105 lb-ft
142.4 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
49.2 in.
125 cm -
Overall length
76.9 in.
195.3 cm -
Width without mower
46.6 in.
118.4 cm -
Width with mower
48A - 62.8 in.
159.5 cm
54A - 68.6 in.
174.2 cm
60A - 73.4 in.
186.4 cm -
Width with mower (deflector raised for storage)
48A - 54 in.
137 cm
54A - 59.7 in.
152 cm
60A - 65.6 in.
167 cm -
Height
47.6 in.
121 cm
With rollover protective structure (ROPS) up position - 70.1 in.
178 cm -
Weight
With mower and fuel, 48A, 772 lb
351 kg
With mower and fuel, 54A, 780 lb
355 kg
With mower and fuel, 60A, 788 lb
358 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
15 degrees, 10 degrees with an MCS
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Mower wash port makes cleaning the deck easier
-
Note 2
Flip-up foot platform for easy service access
-
Note 3
18-position adjustable motion-control levers
-
Warranty
4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl attachment, 48 in.
122 cm
Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl attachment, 60 in.
152 cm -
Rubber floor mat
Foot platform only
-
Sun shade
Optional
-
Mounted sprayer
No
-
Storage cover
No
-
Light kit
Optional 4-point LED Light kit
-
Material collection system
Power Flow rear bagger, 6.5 bu
230 L
Not available on 60A
Back to Top
Details:
Z530R
Available in 54- and 60-inch mower deck sizes
- 24 hp* (17.9 kW) V-Twin engine
- 54-in (137 cm) High Capacity mower deck, compatible with optional MulchControl™ kit
- 22.5-in seat with armrests and ComfortGlide™ suspension
- Folding Rollover Protective Structure (ROPS)
- Rubber floor mats, foot lift, and premium control levers come standard
- 4-year/500-hour bumper-to-bumper warranty
Features:
- Comfortable ride delivered by an operator station with premium controls and ComfortGlide™ suspension
- Easy-to-see-and-use advanced instrument display with electric fuel gauge and controls
- Superior durability and productivity from flat-top design of 9-gauge, 0.15-in. (3.8-mm) high capacity mower decks
- Superior performance and long life with a smooth and powerful 44.3-cu in. (726-cc) V-twin engine
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Great looks, reliability, and performance delivered by a heavy-duty design with extra appearance features
- Maximize mowing efficiency with premium control levers and dual transmissions that offer speeds up to 9 mph (14.5 km/h)
- Convenient machine service includes 4-year bumper-to-bumper warranty
- Help maintain your mower and lawn with the MowerPlus™ app and connector
Specifications:
Key Specs
-
Engine power
24 hp
17.9 kW -
Engine model number
FR730V
-
Forward speed
0-9 mph
0-14.5 km/h -
Front caster tires
13x6.5-6
-
Drive tires
23x10.5-12
-
Seat back height
High back with armrests and ComfortGlide™, 22.5 in.
57.1 cm -
Width of cut
High capacity mower deck, 54 in.
137 cm
High capacity mower deck, 60 in.
152 cm -
Mulching system
Optional MulchControl™ attachment, 54 in.
137 cm
Optional MulchControl kit, 60 in.
152 cm -
Warranty
4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
24 hp
17.9 kW -
Model number
FR730V
-
Displacement
44.3 cu in.
726 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
300 CCA -
Choke/speed control
Separate control levers
-
Cooling method
Air
-
Fuel tank capacity
4.5 U.S. gal.
17 L -
Fuel gauge
Electric gauge and fuel level sight line
Drive train
-
Dual hydros
Tuff Torq TZT7-M with 1-in. (2.5-cm) axles
Travel speed
-
Forward speed
0-9 mph
0-14.5 km/h -
Reverse speed
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin premium levers
-
Control adjustment
2-height/9-fore-aft, 18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x6.5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
23x10.5-12
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes and covered
-
Cup holder
Yes
Seat
-
Seat back height
High back with armrests and ComfortGlide, 22.5 in.
57.1 cm -
Fore-aft adjustment
While seated, 3 in.
7.6 cm -
Seat suspension
Two springs and ComfortGlide
Lift system
-
Type
Foot lift
-
Mower cut height
1-4 in.
2.5-10.2 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
High capacity mower deck, 54 in.
137 cm
High capacity mower deck, 60 in.
152 cm -
Type
High-capacity side discharge
-
Mower deck material
9 gauge
0.15 in.
3.8 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 125 lb-ft
169.5 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
49.2 in.
125 cm -
Overall length
81.9 in.
208 cm -
Width without mower
48.7 in.
123.7 cm -
Width with mower
54HC - 68.3 in.
173.5 cm
60HC - 73.5 in.
186.7 cm -
Width with mower (deflector raised for storage)
54HC - 59.6 in.
151 cm
60HC - 65.6 in.
167 cm -
Height
48.3 in.
122.8 cm
With rollover protective structure (ROPS) up position - 70.7 in.
179.6 cm -
Weight
With mower and fuel, 54HC, 834 lb
379 kg
With mower and fuel, 60HC, 842 lb
383 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
15 degrees, 10 degrees with an MCS
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Mower wash port makes cleaning the deck easier
-
Note 2
Flip-up foot platform for easy service access
-
Note 3
18-position adjustable motion-control levers
-
Warranty
4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl kit, 60 in.
152 cm -
Rubber floor mat
Foot platform and toe board
-
Sun shade
Optional
-
Mounted sprayer
No
-
Storage cover
Yes
-
Light kit
4-point LED Light kit
-
Material collection system
Power Flow rear bagger, 6.5 bu
230 L
Not available on 60HC
Back to Top
Details:
Z545R
Available in 48-, 54- and 60-inch mower deck sizes
- 25 hp* (18.6 kW) EFI engine with Electronic Throttle Control
- 48-in (122 cm) High Capacity mower deck, compatible with optional MulchControl™ kit
- 22.5-in seat with armrests and ComfortGlide™ suspension
- Folding Rollover Protective Structure (ROPS)
- Rubber floor mats, toe board mat, foot lift, premium control levers, LED lights, and rear hitch come standard
- 4-year/500-hour bumper-to-bumper warranty
Features:
- Comfortable ride delivered by an operator station with premium controls and ComfortGlide™ suspension
- Easy-to-see-and-use advanced instrument display with electric fuel gauge and controls
- Superior durability and productivity from flat-top design of 9-gauge, 0.15-in. (3.8-mm) high capacity mower decks
- Quick starts and top performance from 44.2-cu in. (724-cc) V-twin engine with electronic fuel injection (EFI) and electronic throttle control (ETC)
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Great looks, reliability, and performance delivered by a heavy-duty design with extra appearance features
- Maximize mowing efficiency with premium control levers and dual transmissions that offer speeds up to 9 mph (14.5 km/h)
- Convenient machine service includes 4-year bumper-to-bumper warranty
- Help maintain your mower and lawn with the MowerPlus™ app and connector
Specifications:
Key Specs
-
Engine power
25 hp
18.6 kW -
Engine model number
HTR EFI/ETC
-
Forward speed
0-9 mph
0-14.5 km/h -
Front caster tires
13x6.5-6
-
Drive tires
23x10.5-12
-
Seat back height
High back with armrests and ComfortGlide™, 22.5 in.
57.1 cm -
Width of cut
High capacity mower deck, 48 in.
122 cm
High capacity mower deck, 54 in.
137 cm
High capacity mower deck, 60 in.
152 cm -
Mulching system
Optional MulchControl™ attachment, 48 in.
122 cm
Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl kit, 60 in.
152 cm -
Warranty
4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
25 hp
18.6 kW -
Model number
HTR EFI/ETC
-
Displacement
44.2 cu in.
724 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
300 CCA -
Choke/speed control
Separate control levers
-
Cooling method
Air
-
Fuel tank capacity
4.5 U.S. gal.
17 L -
Fuel gauge
Electric gauge and fuel level sight line
Drive train
-
Dual hydros
Tuff Torq TZT7-M with 1-in. (2.5-cm) axles
Travel speed
-
Forward speed
0-9 mph
0-14.5 km/h -
Reverse speed
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin premium levers
-
Control adjustment
2-height/9-fore-aft, 18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x6.5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
23x10.5-12
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes and covered
-
Cup holder
Yes
Seat
-
Seat back height
High back with armrests and ComfortGlide, 22.5 in.
57.1 cm -
Fore-aft adjustment
While seated, 3 in.
7.6 cm -
Seat suspension
Two springs and ComfortGlide
Lift system
-
Type
Foot lift
-
Mower cut height
1-4 in.
2.5-10.2 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
High capacity mower deck, 48 in.
122 cm
High capacity mower deck, 54 in.
137 cm
High capacity mower deck, 60 in.
152 cm -
Type
High-capacity side discharge
-
Mower deck material
9 gauge
0.15 in.
3.8 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 125 lb-ft
169.5 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
49.2 in.
125 cm -
Overall length
81.9 in.
208 cm -
Width without mower
48.7 in.
123.7 cm -
Width with mower
48HC - 62.4 in.
158.5 cm
54HC - 68.3 in.
173.5 cm
60HC - 73.5 in.
186.7 cm -
Width with mower (deflector raised for storage)
48HC - 53.6 in.
136.1 cm
54HC - 59.6 in.
151 cm
60HC - 65.6 in.
167 cm -
Height
48.3 in.
122.8 cm
With rollover protective structure (ROPS) up position - 70.7 in.
179.6 cm -
Weight
With mower and fuel, 48HC, 826 lb
375 kg
With mower and fuel, 54HC, 832 lb
378 kg
With mower and fuel, 60HC, 840 lb
382 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
15 degrees, 10 degrees with an MCS
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Mower wash port makes cleaning the deck easier
-
Note 2
Flip-up foot platform for easy service access
-
Note 3
18-position adjustable motion-control levers
-
Warranty
4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl kit, 60 in.
152 cm -
Rubber floor mat
Foot platform and toe board
-
Sun shade
Optional
-
Mounted sprayer
No
-
Storage cover
Yes
-
Light kit
4-point LED Light kit
-
Material collection system
Power Flow rear bagger, 6.5 bu
230 L
Not available on 60HC
Back to Top
Z700 Series
Available models: Z720EZ735EZ730MZ735MZ740R
Details:
Z720E
ZTrak™ Zero Turn Mower
- 23-hp (17.2 kW)* FR series engine
- 48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements
- 21-in. seat with adjustable springs for extra comfort
- Adjustable, 3-position foot platform
Features:
- Smooth and powerful V-twin engine for performance and long life
- High-capacity (HC) PRO Mower Decks offer superior cut quality and versatility
- Operator station is adjustable for superior comfort
- High-quality seat with adjustable armrests and springs for extra comfort
- Three-position, adjustable foot platform to accommodate different size operators
- Serviceability is designed-in for convenience
- Controls, including an automatic motion-control lever/parking brake system, are easy to find and use
- Heavy-duty design delivers strength and durability
- Transmission offers speeds up to 8 mph (12.8 km/h) to maximize mowing efficiency
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
Specifications:
Key Specs
-
Engine power
23 hp
17.2 kW -
Engine model number
FR691V
-
Forward speed
0-8 mph
0-12.8 km/h -
Front caster tires
13x6.5-6
-
Drive tires
23x9.5-12 (48-in. decks)
23X10.5-12 (54- and 60-in. decks) -
Seat back height
High back with adjustable armrests, 21 in.
53 cm -
Width of cut
48 in.
122 cm
54 in.
137 cm
60 in.
152 cm -
Mulching system
Optional MulchControl™ attachment
-
Warranty
4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
23 hp
17.2 kW -
Model number
FR691V
-
Displacement
44.3 cu in.
726 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
340 CCA -
Choke/speed control
Separate control levers
-
Cooling method
Air
-
Fuel tank capacity
8 U.S. gal.
30.2 L -
Fuel gauge
Fuel level sight line
Drive train
-
Dual hydros
Hydro-gear ZT3100 with 1-in. (2.54-cm) axles
Travel speed
-
Forward speed
0-8 mph
0-12.8 km/h -
Reverse speed
0-4 mph
0-6.4 km/h -
Speed and direction control
Twin standard levers
-
Control adjustment
2-height/18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x6.5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
23x9.5-12 (48-in. decks)
23X10.5-12 (54- and 60-in. decks) -
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
High back with adjustable armrests, 21 in.
53 cm -
Fore-aft adjustment
While seated, 4 in.
10.2 cm -
Seat suspension
Two four-position springs
Lift system
-
Type
Spring assisted foot lift
-
Mower cut height
1.5-5 in.
3.8-12.7 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
48 in.
122 cm
54 in.
137 cm
60 in.
152 cm -
Type
High-capacity (HC) PRO side discharge
-
Mower deck material
9 gauge
0.15 in.
3.8 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 125 lb-ft
169 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
49.9 in.
126.7 cm -
Overall length
80.6 in.
204.6 cm -
Width without mower
48.6 in.
123.5 cm -
Width with mower
48 HC, 62.3 in.
158.2 cm
54 HC, 68.2 in.
173.2 cm
60 HC, 73.3 in.
186.1 cm -
Width with mower (deflector raised for storage)
48 HC, 53.2 in.
135.1 cm
54 HC, 59.4 in.
151 cm
60 HC, 64.8 in.
164.5 cm -
Height
ROPS up - 71.1 in.
182.2 cm
ROPS down - 47.4 in.
120.3 cm -
Weight
With mower and fuel, 48 HC, 950 lb
431 kg
With mower and fuel, 54 HC, 965 lb
437 kg
With mower and fuel, 60 HC, 995 lb
451 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
15 degrees; 10 degrees with MCS
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Flip-up and adjustable foot platform for easy service access
-
Warranty
4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl attachment
-
Rubber floor mat
Optional
-
Light kit
LED - fender mounted
-
Material collection system
48 HC PRO, 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger, 6.5 bu
229.1 L
Back to Top
Details:
Z735E
ZTrak™ Zero Turn Mower
- 25-hp (18.6 kW)*, 810 cc engine
- 60-in. High-capacity PRO mower deck with welded deck reinforcements
- 21-in. seat with adjustable springs for extra comfort
- Adjustable, 3-position foot platform
Features:
- Smooth and powerful professional-grade V-twin engine for performance and long life
- High-capacity (HC) PRO Mower Decks offer superior cut quality and versatility
- Operator station is adjustable for superior comfort
- High-quality seat with adjustable armrests and springs for extra comfort
- Three-position, adjustable foot platform to accommodate different size operators
- Serviceability is designed-in for convenience
- Controls, including an automatic motion-control lever/parking brake system, are easy to find and use
- Heavy-duty design delivers strength and durability
- Transmission offers speeds up to 8 mph (12.8 km/h) to maximize mowing efficiency
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
Specifications:
Key Specs
-
Engine power
25 hp
18.6 kW -
Engine model number
HTR810
-
Forward speed
0-8 mph
0-12.8 km/h -
Front caster tires
13x6.5-6
-
Drive tires
23X10.5-12 (60-in. decks)
-
Seat back height
High back with adjustable armrests, 21 in.
53 cm -
Width of cut
60 in.
152 cm -
Mulching system
Optional MulchControl™ attachment
-
Warranty
4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
25 hp
18.6 kW -
Model number
HTR810
-
Displacement
49.4 cu in.
810 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
340 CCA -
Choke/speed control
Separate control levers
-
Cooling method
Air
-
Fuel tank capacity
8 U.S. gal.
30.2 L -
Fuel gauge
Fuel level sight line
Drive train
-
Dual hydros
Hydro-gear ZT3100 with 1-in. (2.54-cm) axles
Travel speed
-
Forward speed
0-8 mph
0-12.8 km/h -
Reverse speed
0-4 mph
0-6.4 km/h -
Speed and direction control
Twin standard levers
-
Control adjustment
2-height/18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x6.5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
23X10.5-12 (60-in. decks)
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
High back with adjustable armrests, 21 in.
53 cm -
Fore-aft adjustment
While seated, 4 in.
10.2 cm -
Seat suspension
Two four-position springs
Lift system
-
Type
Spring assisted foot lift
-
Mower cut height
1.5-5 in.
3.8-12.7 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
60 in.
152 cm -
Type
High-capacity (HC) PRO side discharge
-
Mower deck material
9 gauge
0.15 in.
3.8 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 125 lb-ft
169 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
49.9 in.
126.7 cm -
Overall length
80.6 in.
204.6 cm -
Width without mower
50.6 in.
128.4 cm -
Width with mower
60 HC, 73.3 in.
186.1 cm -
Width with mower (deflector raised for storage)
60 HC, 64.8 in.
164.5 cm -
Height
ROPS up - 71.1 in.
182.2 cm
ROPS down - 47.4 in.
120.3 cm -
Weight
With mower and fuel, 60 HC, 990 lb
449 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
15 degrees; 10 degrees with MCS
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Flip-up and adjustable foot platform for easy service access
-
Warranty
4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl attachment
-
Rubber floor mat
Optional
-
Light kit
LED - fender mounted
-
Material collection system
60 HC PRO Power Flow™ rear bagger, 6.5 bu
229.1 L
Back to Top
Details:
Z730M
ZTrak™ Zero Turn Mower
- 24-hp (17.9 kW)* FS series engine
- 54- or 60-in. High-capacity PRO mower deck with welded deck reinforcements
- 22.5-in. seat with adjustable armrests, springs and ComfortGlide™ suspension
- Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 - 5 inches
Features:
- Smooth and powerful V-twin engine for performance and long life
- High-capacity (HC) PRO Mower Decks offer superior cut quality and versatility
- Operator station is adjustable for superior comfort
- Seat includes ComfortGlide™ suspension and adjustable springs for a smooth ride
- Three-position, adjustable foot platform to accommodate different size operators
- Serviceability is designed-in for convenience
- Controls, including an automatic motion-control lever/parking brake system, are easy to find and use
- Heavy-duty design delivers strength and durability
- Transmission offers speeds up to 9.5 mph (15.3 km/h) to maximize mowing efficiency
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
Specifications:
Key Specs
-
Engine power
24 hp
17.9 kW -
Engine model number
FS730V
-
Forward speed
0-9.5 mph
0-15.3 km/h -
Front caster tires
13x6.5-6
-
Drive tires
23X10.5-12 (54- and 60-in. decks)
-
Seat back height
High back with adjustable armrests, 22.5 in.
57.1 cm -
Width of cut
54 in.
137 cm
60 in.
152 cm -
Mulching system
Optional MulchControl™ attachment
-
Warranty
4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
24 hp
17.9 kW -
Model number
FS730V
-
Displacement
44.3 cu in.
726 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
340 CCA -
Choke/speed control
Separate control levers
-
Cooling method
Air
-
Fuel tank capacity
8 U.S. gal.
30.2 L -
Fuel gauge
Fuel level sight line
Drive train
-
Dual hydros
Hydro-gear ZT3200 with 1-in. (2.54-cm) axles
Travel speed
-
Forward speed
0-9.5 mph
0-15.3 km/h -
Reverse speed
0-4 mph
0-6.4 km/h -
Speed and direction control
Twin premium levers
-
Control adjustment
2-height/18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x6.5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
23X10.5-12 (54- and 60-in. decks)
-
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
High back with adjustable armrests, 22.5 in.
57.1 cm -
Fore-aft adjustment
While seated, +/- 2 in.
5.08 cm -
Seat suspension
Two four-position springs with ComfortGlide™ fore/aft suspension
Lift system
-
Type
Spring assisted foot lift
-
Mower cut height
1.5-5 in.
3.8-12.7 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
54 in.
137 cm
60 in.
152 cm -
Type
High-capacity (HC) PRO side discharge
-
Mower deck material
9 gauge
0.15 in.
3.8 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 125 lb-ft
169 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
49.9 in.
126.7 cm -
Overall length
82 in.
208.4 cm -
Width without mower
50.6 in.
128.4 cm -
Width with mower
54 HC, 68.2 in.
173.2 cm
60 HC, 73.3 in.
186.1 cm -
Width with mower (deflector raised for storage)
54 HC, 59.4 in.
151 cm
60 HC, 64.8 in.
164.5 cm -
Height
ROPS up - 71.1 in.
182.2 cm
ROPS down - 49.7 in.
126.2 cm -
Weight
With mower and fuel, 54 HC, 965 lb
437 kg
With mower and fuel, 60 HC, 995 lb
451 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
15 degrees; 10 degrees with MCS
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Flip-up and adjustable foot platform for easy service access
-
Warranty
4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl attachment
-
Rubber floor mat
Optional
-
Light kit
LED - fender mounted
-
Material collection system
54 HC PRO and 60 HC PRO Power Flow™ rear bagger, 6.5 bu
229.1 L
Back to Top
Details:
Z735M
ZTrak™ Zero Turn Mower
- 25-hp (18.6 kW)*, 810 cc engine
- 48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements
- 22.5-in. seat with adjustable armrests, springs and ComfortGlide™ suspension
- Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 - 5 inches
Features:
- Smooth and powerful professional-grade V-twin engine for performance and long life
- High-capacity (HC) PRO Mower Decks offer superior cut quality and versatility
- Operator station is adjustable for superior comfort
- Seat includes ComfortGlide™ suspension and adjustable springs for a smooth ride
- Three-position, adjustable foot platform to accommodate different size operators
- Serviceability is designed-in for convenience
- Controls, including an automatic motion-control lever/parking brake system, are easy to find and use
- Heavy-duty design delivers strength and durability
- Transmission offers speeds up to 9.5 mph (15.3 km/h) to maximize mowing efficiency
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
Specifications:
Key Specs
-
Engine power
25 hp
18.6 kW -
Engine model number
HTR810
-
Forward speed
0-9.5 mph
0-15.3 km/h -
Front caster tires
13x6.5-6
-
Drive tires
23x9.5-12 (48-in. decks)
23X10.5-12 (54- and 60-in. decks) -
Seat back height
High back with adjustable armrests, 22.5 in.
57.1 cm -
Width of cut
48 in.
122 cm
54 in.
137 cm
60 in.
152 cm -
Mulching system
Optional MulchControl™ attachment
-
Warranty
4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
25 hp
18.6 kW -
Model number
HTR810
-
Displacement
49.4 cu in.
810 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L -
Type
Overhead valve
-
Battery
12 V
340 CCA -
Choke/speed control
Separate control levers
-
Cooling method
Air
-
Fuel tank capacity
8 U.S. gal.
30.2 L -
Fuel gauge
Fuel level sight line
Drive train
-
Dual hydros
Hydro-gear ZT3200 with 1-in. (2.54-cm) axles
Travel speed
-
Forward speed
0-9.5 mph
0-15.3 km/h -
Reverse speed
0-4 mph
0-6.4 km/h -
Speed and direction control
Twin premium levers
-
Control adjustment
2-height/18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x6.5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
23x9.5-12 (48-in. decks)
23X10.5-12 (54- and 60-in. decks) -
Hourmeter
Yes
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
High back with adjustable armrests, 22.5 in.
57.1 cm -
Fore-aft adjustment
While seated, +/- 2 in.
5.08 cm -
Seat suspension
Two four-position springs with ComfortGlide™ fore/aft suspension
Lift system
-
Type
Spring assisted foot lift
-
Mower cut height
1.5-5 in.
3.8-12.7 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
48 in.
122 cm
54 in.
137 cm
60 in.
152 cm -
Type
High-capacity (HC) PRO side discharge
-
Mower deck material
9 gauge
0.15 in.
3.8 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 125 lb-ft
169 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
49.9 in.
126.7 cm -
Overall length
82 in.
208.4 cm -
Width without mower
48.6 in.
123.5 cm -
Width with mower
48 HC, 62.3 in.
158.2 cm
54 HC, 68.2 in.
173.2 cm
60 HC, 73.3 in.
186.1 cm -
Width with mower (deflector raised for storage)
48 HC, 53.2 in.
135.1 cm
54 HC, 59.4 in.
151 cm
60 HC, 64.8 in.
164.5 cm -
Height
ROPS up - 71.1 in.
182.2 cm
ROPS down - 49.7 in.
126.2 cm -
Weight
With mower and fuel, 48 HC, 950 lb
431 kg
With mower and fuel, 54 HC, 965 lb
437 kg
With mower and fuel, 60 HC, 990 lb
449 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
15 degrees; 10 degrees with MCS
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Flip-up and adjustable foot platform for easy service access
-
Warranty
4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl attachment
-
Rubber floor mat
Optional
-
Light kit
LED - fender mounted
-
Material collection system
48 HC PRO, 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger, 6.5 bu
229.1 L
Back to Top
Details:
Z740R
ZTrak™ Zero Turn Mower
- 23.5-hp (17.5 kW)* FX series engine
- 48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements
- 24-in. seat with fully adjustable mechanical suspension
- Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 - 5 inches
Features:
- Smooth and powerful professional grade V-twin engine for performance and long life
- High-capacity (HC) PRO Mower Decks offer superior cut quality and versatility
- Operator station is adjustable for superior comfort
- Adjustable, mechanical suspension seat with ComfortGlide™ suspension system for a smooth ride
- Three-position, adjustable foot platform to accommodate different size operators
- Serviceability is designed-in for convenience
- Controls, including an automatic motion-control lever/parking brake system, are easy to find and use
- Heavy-duty design delivers strength and durability
- Transmission offers speeds up to 10 mph (16.1 km/h) to maximize mowing efficiency
- Protective zone around the operator is provided by the rollover protective structure (ROPS)
- Optional Michelin® X® Tweel® Turf airless radial tire technology on the Z740R for extra reliability and ride quality
Specifications:
Key Specs
-
Engine power
23.5 hp
17.5 kW -
Engine model number
FX730V
-
Forward speed
0-10 mph
0-16.1 km/h -
Front caster tires
13x6.5-6
-
Drive tires
24x9.5-12 (48-in. decks)
24X12-12 (54- and 60-in. decks)
Optional - 24X12N12 Michelin® Tweel® X Turf Airless Radial (54- and 60-in. decks) -
Seat back height
High back with armrests, 24 in.
60.9 cm -
Width of cut
48 in.
122 cm
54 in.
137 cm
60 in.
152 cm -
Mulching system
Optional MulchControl™ attachment
-
Warranty
4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
-
Power
23.5 hp
17.5 kW -
Model number
FX730V
-
Displacement
44.2 cu in.
726 cc -
Cylinders
V-twin
-
Lubrication
Full pressure with replaceable filter, capacity, 2.2 U.S. qt
2.1 L -
Type
Overhead valve
-
Battery
12 V
340 CCA -
Choke/speed control
Separate control levers
-
Cooling method
Air
-
Fuel tank capacity
8 U.S. gal.
30.2 L -
Fuel gauge
Fuel level sight line
Drive train
-
Dual hydros
Hydro-gear ZT3400 with 1-in. (2.54-cm) axles
Travel speed
-
Forward speed
0-10 mph
0-16.1 km/h -
Reverse speed
0-4.5 mph
0-7.2 km/h -
Speed and direction control
Twin premium levers
-
Control adjustment
2-height/18 positions
Chassis
-
Frame
Heavy-duty frame tubing
-
Primer/paint
E-coat/powder
-
Front caster tires
13x6.5-6
-
Front caster bearings
Sealed ball bearings
-
Drive tires
24x9.5-12 (48-in. decks)
24X12-12 (54- and 60-in. decks)
24X12N12 Michelin Tweel X Turf Airless Radial (54- and 60-in. decks) -
Hourmeter
Yes with low oil pressure and low battery voltage indicators
-
Service interval decal
Yes
-
Storage compartment
Yes
-
Cup holder
Yes
Seat
-
Seat back height
High back with armrests, 24 in.
60.9 cm -
Fore-aft adjustment
While seated, 4 in.
10.2 cm -
Seat suspension
Mechanical; adjustable for weight with ComfortGlide™
Lift system
-
Type
Spring assisted foot lift
-
Mower cut height
1.5-5 in.
3.8-12.7 cm -
Cut height increments
0.25 in.
0.64 cm -
Preset cut height
Yes
Mower deck
-
Width of cut
48 in.
122 cm
54 in.
137 cm
60 in.
152 cm -
Type
High-capacity (HC) PRO side discharge
-
Mower deck material
9 gauge
0.15 in.
3.8 mm -
Mower drive system
V-belt
PTO
-
Type
Electric, 125 lb-ft
169 Nm -
Drive
V-belt
Dimensions
-
Wheelbase
49.9 in.
126.7 cm -
Overall length
82 in.
208.4 cm -
Width without mower
48.6 in.
123.5 cm
With Tweel option - 52.8 in.
134.2 cm -
Width with mower
48 HC, 62.3 in.
158.2 cm
54 HC, 68.2 in.
173.2 cm
60 HC, 73.3 in.
186.1 cm -
Width with mower (deflector raised for storage)
48 HC, 53.2 in.
135.1 cm
54 HC, 59.4 in.
151 cm
60 HC, 64.8 in.
164.5 cm -
Height
ROPS up - 71.1 in.
182.2 cm
ROPS down - 49.7 in.
126.2 cm -
Weight
With mower and fuel, 48 HC, 995 lb
451 kg
With mower and fuel, 54 HC, 1,010 lb
458 kg
With mower and fuel, 60 HC, 1,040 lb
472 kg
With Tweel option, mower, and fuel, 54 HC, 1046 lb
474 kg
With Tweel option, mower, and fuel, 60 HC, 1076 lb
488 kg
Operation
-
Rollover protective structure (ROPS)
Yes
-
Slope operating limit
15 degrees; 10 degrees with MCS
-
Operator presence system
Yes
-
Park brake interlock
Yes
-
Operator video
Yes
Buyer's notes
-
Note 1
Flip-up and adjustable foot platform for easy service access
-
Warranty
4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
-
Mulching system
Optional MulchControl attachment
-
Rubber floor mat
Optional
-
Light kit
LED - fender mounted
-
Material collection system
48 HC PRO, 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger, 6.5 bu
229.1 L
Not compatible with Tweel option
Back to Top
