Let Little’s Guide You To The Right Gator For Your Needs

Whether you’re looking to get the job done or just have some fun, John Deere Gator Utility Vehicles offer the perfect combination of power, speed, versatility and durability.

No matter your needs, our John Deere factory-trained sales staff know how to help select and customize the perfect Gator for you. We back up your purchase with:

Plus, you can take advantage of the Little’s Green Carpet Maintenance Plan, where our expertly trained service technicians come to you to perform maintenance and repairs.

Explore Our Wide Selection Of John Deere Gator Utility Vehicles

Click on products below to learn more.

Full Size Utility Vehicles

Full Size Utility Vehicles

Mid Size XUV

Mid Size XUV

HPX Utility Vehicles

HPX Utility Vehicles

Available models: XUV825M S4XUV835EXUV835MXUV835M CabXUV835M HVACXUV835RXUV855M S4XUV865EXUV865MXUV865M HVACXUV865R

DetailsFeaturesSpecifications

Details:

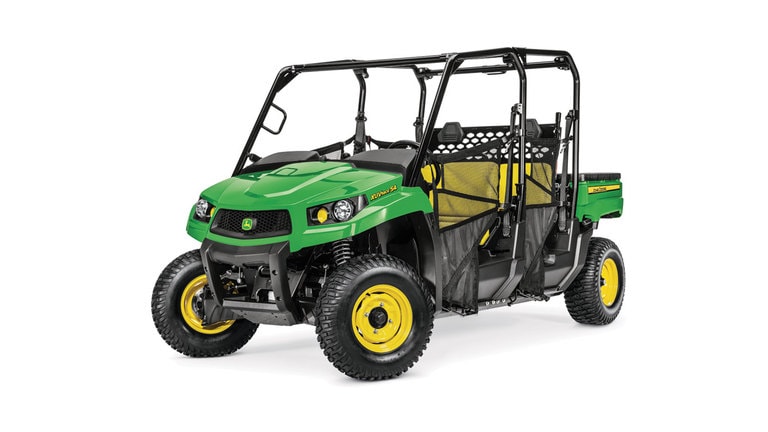

XUV825M S4

Crossover Utility Vehicle

  • Multi-passenger capability for four people
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Improved power steering for smoother operation

Features:

  • Superior terrain capability
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Equipped with power steering
  • Seating for four and rear under-seat storage

Specifications:

Key Specs

  • Engine power

    39* kW
    52 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    680 kg
    1500 lb

  • Front suspension

    Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel

  • Rear suspension

    Fully independent dual A-arm with adjustable coils and sway bar; 228.6 mm (9 in.) of travel

  • Final drive

    Park, high, low, neutral, reverse transaxle

  • Four wheel drive

    Dash switch actuated four-wheel drive system with limited slip front differential plus locking rear differential

  • Fuel capacity

    27.6 L
    7.3 U.S. gal.
Engine

  • Type

    4-cycle gas, electronic fuel injection (EFI)

  • Displacement

    812 cc

  • Power

    39* kW
    52 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Park, high, low, neutral, reverse transaxle

  • Four wheel drive

    Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Traction assist

    Positive locking, switch actuated rear differential lock

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel

  • Rear

    Fully independent dual A-arm with adjustable coils and sway bar; 228.6 mm (9 in.) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Optional factory installed secondary, hand operated
Tires / Wheels

  • Front

    27x9-R14 Maxxis® Bighorn® extreme terrain radials on steel or alloy wheels
    27x9-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels

  • Rear

    27x11-R14 Maxxis Bighorn extreme terrain radials on steel or alloy wheels
    27x11-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels
Dimensions / Capacities

  • Wheelbase

    2895.6 mm
    114 in.

  • Weight

    With fuel and fluids: 953 kg
    2101 lb

  • Length

    3921 mm
    154 in.

  • Width

    1574 mm
    62 in.

  • Height

    1903 mm
    75 in.

  • Tread centers

    1305 mm
    51.4 in.

  • Ground clearance

    280 mm
    11 in.

  • Fuel capacity

    27.6 L
    7.3 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    592 kg
    1305 lb

  • Towing capacity

    680 kg
    1500 lb

  • Hitch

    Standard receiver: 5.1 cm
    2 in.
Features

  • Color

    Green and yellow, camouflage, olive and black

  • Power steering

    Yes

  • Battery / Alternator / Power port

    480 CCA
    At 6000 rpm, regulated: 85 amp
    1020 W

  • Instrumentation

    Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)

  • Storage

    Two cup holders, under hood, glovebox, under rear seat

  • Seating

    Front and rear bench
Back to Top
DetailsFeaturesSpecifications

Details:

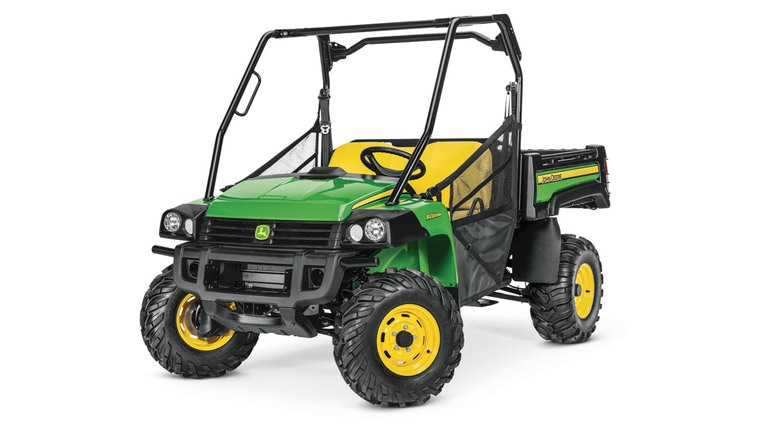

XUV835E

Crossover Utility Vehicle

  • Three person cockpit with enhanced dash display
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Our largest towing capacity at 2,000-lb (907 kg)

Features:

  • Superior terrain capability
  • Roomy and quiet operator station
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Customize with factory installed options and attachment-ready electrical system

Specifications:

Key Specs

  • Engine power

    43* kW
    54* hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle gas, Electronic Fuel Injection (EFI)

  • Displacement

    812 cc

  • Power

    43* kW
    54* hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Weight

    823 kg
    1810 lb
    With Cab and HVAC: 1019 kg
    With Cab and HVAC: 2241 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)
Back to Top
DetailsFeaturesSpecifications

Details:

XUV835M

Crossover Utility Vehicle

  • Three person cockpit with power steering
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Our largest towing capacity at 2,000-lb (907 kg)

Features:

  • Superior terrain capability
  • Equipped with power steering
  • Roomy and quiet operator station
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Customize with factory installed options and attachment-ready electrical system

Specifications:

Key Specs

  • Engine power

    43* kW
    54* hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle gas, Electronic Fuel Injection (EFI)

  • Displacement

    812 cc

  • Power

    43* kW
    54* hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Weight

    823 kg
    1810 lb
    With Cab and HVAC: 1019 kg
    With Cab and HVAC: 2241 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)
Back to Top
DetailsFeaturesSpecifications

Details:

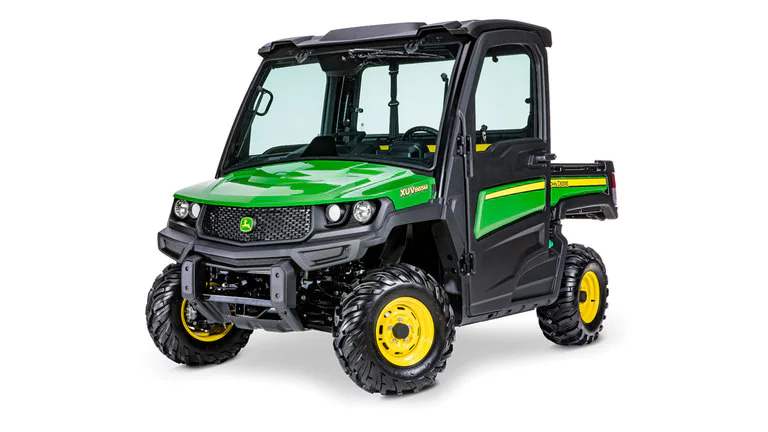

XUV835M Cab

Crossover Utility Vehicle

  • Three person cockpit with factory installed cab
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Improved power steering for smoother operation

Features:

  • Superior terrain capability
  • Roomy and quiet operator station
  • Enhanced cab comfort
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Customize with factory installed options and attachment-ready electrical system
  • Equipped with power steering

Specifications:

Key Specs

  • Engine power

    43* kW
    54* hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle gas, Electronic Fuel Injection (EFI)

  • Displacement

    812 cc

  • Power

    43* kW
    54* hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Weight

    970 kg
    2134 lb
    With Cab and HVAC: 1019 kg
    With Cab and HVAC: 2241 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1763 mm
    69.4 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1987 mm
    78.25 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)
Back to Top
DetailsFeaturesSpecifications

Details:

XUV835M HVAC

Crossover Utility Vehicle

  • Three person cab with heat and air
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Improved power steering for smoother operation

Features:

  • Superior terrain capability
  • Roomy and quiet operator station
  • Enhanced cab comfort
  • Efficient heating, ventilation, and air conditioning (HVAC) system
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Customize with factory installed options and attachment-ready electrical system
  • Equipped with power steering

Specifications:

Key Specs

  • Engine power

    43* kW
    54* hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle gas, Electronic Fuel Injection (EFI)

  • Displacement

    812 cc

  • Power

    43* kW
    54* hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Weight

    823 kg
    1810 lb
    With Cab and HVAC: 1019 kg
    With Cab and HVAC: 2241 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)
Back to Top
DetailsFeaturesSpecifications

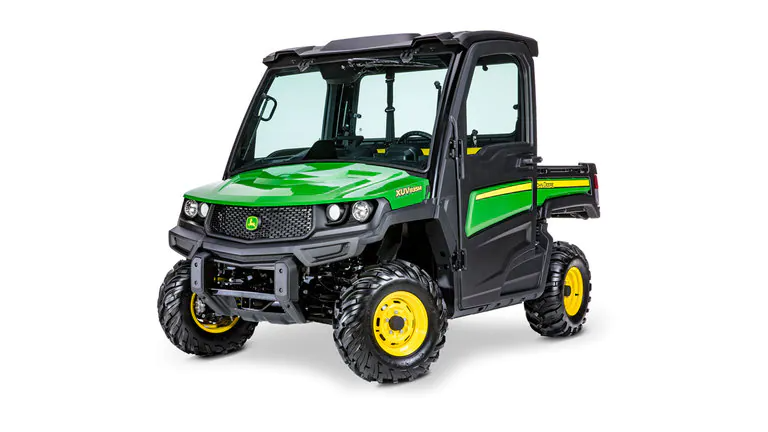

Details:

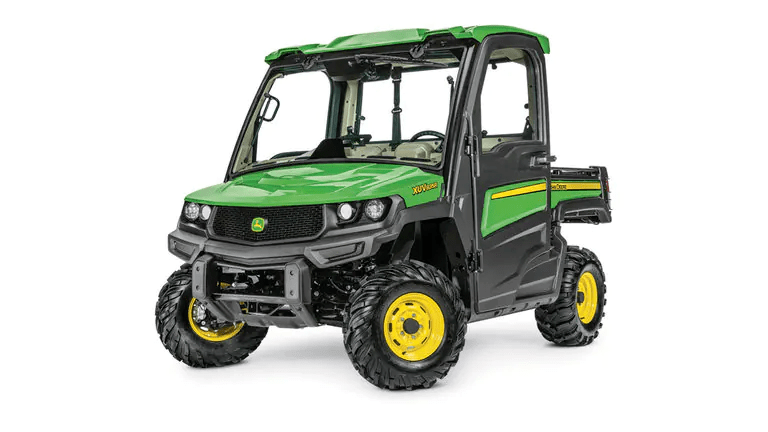

XUV835R

Crossover Utility Vehicle

  • Three person Deluxe Cab with heat and air
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Improved power steering for smoother operation

Features:

  • R-trim vehicles feature cab and headlight upgrades
  • Superior terrain capability
  • Roomy and quiet operator station
  • Enhanced cab comfort
  • Efficient heating, ventilation, and air conditioning (HVAC) system
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Customize with factory installed options and attachment-ready electrical system
  • Equipped with power steering

Specifications:

Key Specs

  • Engine power

    43* kW
    54* hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle gas, Electronic Fuel Injection (EFI)

  • Displacement

    812 cc

  • Power

    43* kW
    54* hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Weight

    823 kg
    1810 lb
    With Cab and HVAC: 1019 kg
    With Cab and HVAC: 2241 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)
Back to Top
DetailsFeaturesSpecifications

Details:

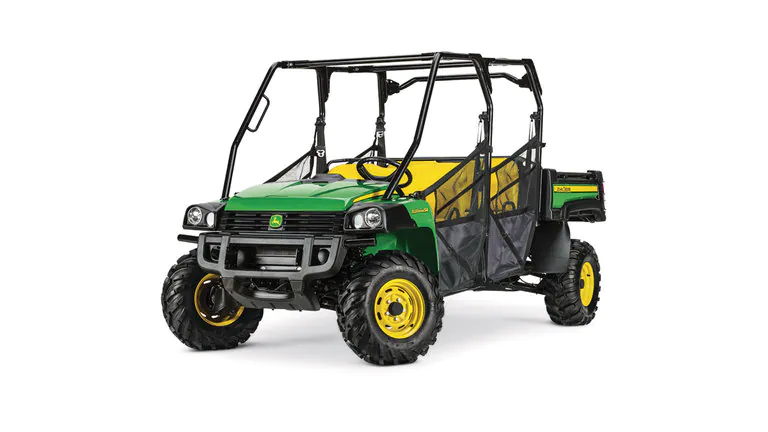

XUV855M S4

Crossover Utility Vehicle

  • Multi-passenger capability for four people
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Diesel engine and improved power steering

Features:

  • Superior terrain capability
  • Powerful diesel engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Equipped with power steering

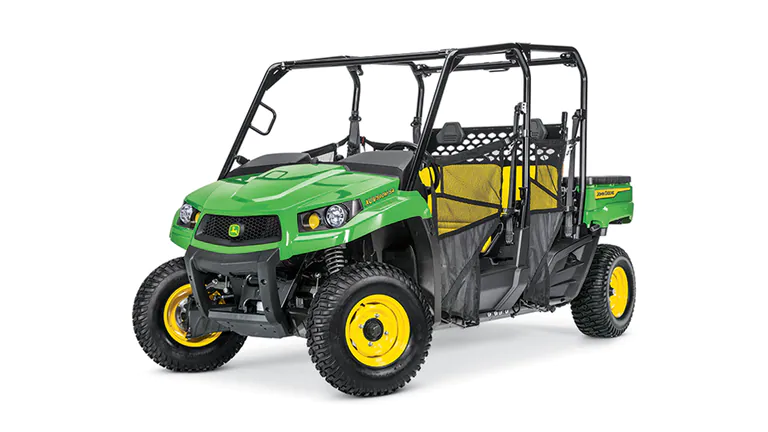

  • Seating for four and rear under-seat storage

Specifications:

Key Specs

  • Engine power

    22.8 hp
    17.0* kW

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    1500 lb
    680 kg

  • Front suspension

    Fully independent dual A-Arm with adjustable coils

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    7.3 U.S. gal.
    27.6 L
Engine

  • Type

    4-cycle diesel

  • Displacement

    854 cc

  • Power

    22.8 hp
    17.0* kW

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, hand operated
Tires / Wheels

  • Front

    27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    114 in.
    2895.6 mm

  • Weight

    2018 lb
    915.3 kg

  • Length

    154 in.
    3911 mm

  • Width

    62 in.
    1571 mm

  • Height

    75 in.
    1903 mm

  • Tread centers

    51.4 in.
    1305 mm

  • Ground clearance

    11 in.
    280 mm

  • Fuel capacity

    7.3 U.S. gal.
    27.6 L

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    1400 lb
    635 kg

  • Towing capacity

    1500 lb
    680 kg

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    Yes

  • Battery / Alternator / Power port

    480 CCA
    55 amp @ 7000 rpm regulated, 660 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, glow plug indicator, EPAS indicator)

  • Storage

    2 Cup Holders, Under Hood, Glovebox, Under Rear Seat

  • Seating

    Bench - Front and Rear
Back to Top
DetailsFeaturesSpecifications

Details:

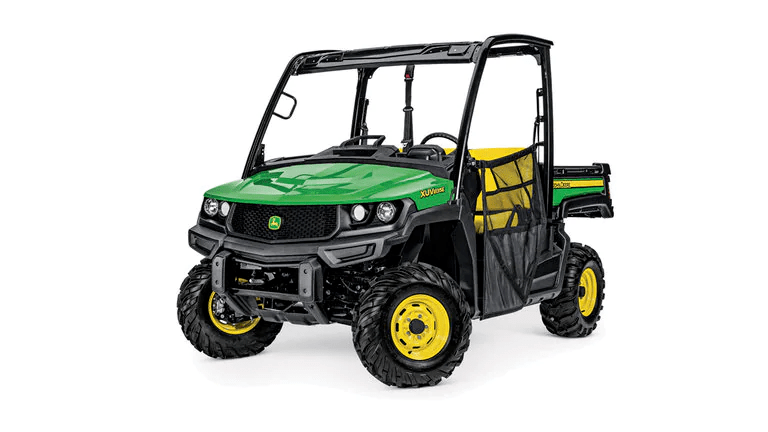

XUV865E

Crossover Utility Vehicle

  • Three person cockpit with enhanced dash display
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Diesel engine with 2,000-lb (907 kg) towing capacity

Features:

  • Superior terrain capability
  • Roomy and quiet operator station
  • Powerful diesel engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Customize with factory installed options and attachment-ready electrical system

Specifications:

Key Specs

  • Engine power

    17.0* kW
    22.8 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-arm with adjustable coils; 200.7 mm (7.9 in.) of travel

  • Rear suspension

    Fully independent dual A-arm with adjustable coils and sway bar; 231.14 mm (9.1 in.) of travel

  • Final drive

    Park, high, low, neutral, reverse transaxle

  • Four wheel drive

    Dash switch actuated four-wheel drive system with limited slip front differential plus locking rear differential

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle diesel

  • Displacement

    854 cc

  • Power

    17.0* kW
    22.8 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Park, high, low, neutral, reverse transaxle

  • Four wheel drive

    Dash switch actuated four-wheel drive system with limited slip front differential plus locking rear differential

  • Traction assist

    Positive locking, switch actuated rear differential lock

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-arm with adjustable coils; 200.7 mm (7.9 in.) of travel

  • Rear

    Fully independent dual A-arm with adjustable coils and sway bar; 231.14 mm (9.1 in.) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Park in-transmission
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT
    27x9-R14 Maxxis® Bighorn® radials on steel or alloy rims
    27x9-R14 Predator hard-surface radials on steel or alloy rims

  • Rear

    25x11-12 Terrahawk AT
    27x11-R14 Maxxis Bighorn radials on steel or alloy rims
    27x11-R14 Predator hard-surface radials on steel or alloy rims
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Operating weight (includes fuel/fluids)

    862 kg
    1845 lb
    *Additional attachments and accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    78.25 in.

  • Tread centers

    Front: 1341 mm
    52.8 in.
    Rear: 1259 mm
    49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    683 kg
    1505 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard receiver: 5.1 cm
    2 in.
Features

  • Color

    Green and yellow, camouflage, olive and black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 55 amp @ 7000 rpm, regulated, 660 watts (85 amp @ 7000 rpm, 1020 watts, for HVAC units)

  • Instrumentation

    Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)

  • Storage

    Four cup holders (two additional for cab units)
    In dash
    Under seat: 56.69 L
    2 cu ft
    Glovebox: 3.85 L
    0.136 cu ft
    Optional under hood - except for HVAC units or units with dealer-installed heater kit

  • Seating

    Bench (available bucket seats on E and M Trim)

  • Headlights

    Single-beam halogen (single-beam LED on R Trim)
Back to Top
DetailsFeaturesSpecifications

Details:

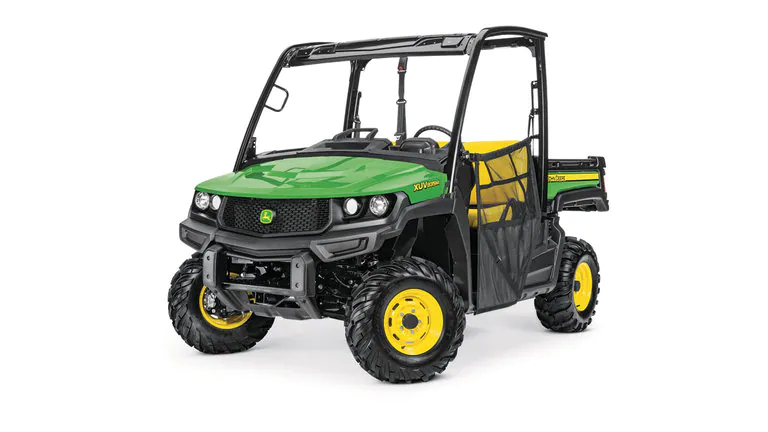

XUV865M

Crossover Utility Vehicle

  • Three person cockpit with power steering
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Diesel engine with 2,000-lb (907 kg) towing capacity

Features:

  • Superior terrain capability
  • Equipped with power steering
  • Roomy and quiet operator station
  • Powerful diesel engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Customize with factory installed options and attachment-ready electrical system

Specifications:

Key Specs

  • Engine power

    17.0* kW
    22.8 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle diesel

  • Displacement

    854 cc

  • Power

    17.0* kW
    22.8 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Weight

    839 kg
    1845 lb
    With Cab and HVAC: 1001 kg
    With Cab and HVAC: 2202 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 7000 rpm, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, glow plug indicator)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)
Back to Top
DetailsFeaturesSpecifications

Details:

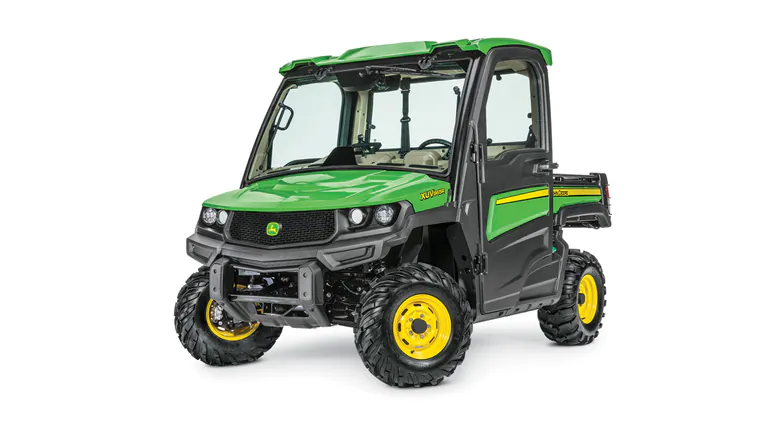

XUV865M HVAC

Crossover Utility Vehicle

  • Three person cab with heat and air
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Diesel engine and improved power steering

Features:

  • Superior terrain capability
  • Roomy and quiet operator station
  • Enhanced cab comfort
  • Efficient heating, ventilation, and air conditioning (HVAC) system
  • Powerful diesel engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Customize with factory installed options and attachment-ready electrical system
  • Equipped with power steering

Specifications:

Key Specs

  • Engine power

    17.0* kW
    22.8 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle diesel

  • Displacement

    854 cc

  • Power

    17.0* kW
    22.8 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Weight

    839 kg
    1845 lb
    With Cab and HVAC: 1001 kg
    With Cab and HVAC: 2202 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 7000 rpm, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, glow plug indicator)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)
Back to Top
DetailsFeaturesSpecifications

Details:

XUV865R

Crossover Utility Vehicle

  • Three person deluxe cab with heat and air
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Diesel engine and improved power steering

Features:

  • Superior terrain capability
  • Roomy and quiet operator station
  • Enhanced cab comfort
  • Efficient heating, ventilation, and air conditioning (HVAC) system
  • Powerful diesel engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Attachment-ready electrical system
  • Equipped with power steering
  • R trim details

Specifications:

Key Specs

  • Engine power

    17.0* kW
    22.8 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle diesel

  • Displacement

    854 cc

  • Power

    17.0* kW
    22.8 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    26x9-12 Ancla M-T (Aggressive Terrain) or 25x9-12 Terrahawk AT (All Terrain) or 27x9-R14 Maxxis Big Horn Radials (Extreme Terrain)

  • Rear

    26x11-12 Ancla M-T (aggressive terrain) or 25x11-12 Terrahawk AT (all terrain) or 27x11-R14 Maxxis Big Horn Radials (Extreme Terrain)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Weight

    839 kg
    1845 lb
    With Cab and HVAC: 1001 kg
    With Cab and HVAC: 2202 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 7000 rpm, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, glow plug indicator)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)
Back to Top

Available models: XUV560EXUV590EXUV825M S4XUV560E S4XUV590M S4

DetailsFeaturesSpecifications

Details:

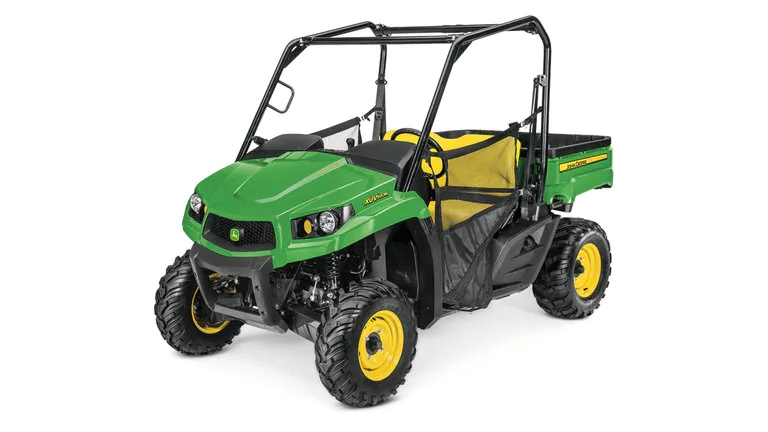

XUV560E

Crossover Utility Vehicle

  • Four-wheel independent suspension for excellent ride and handling
  • Easier shifting, with integrated park position
  • New electronic switch for instant 4WD engagement
  • New dash display with speed indicator and more

Features:

  • Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities
  • Delivers quick acceleration and provides a top speed of 45 km/h (28 mph)
  • Designed for all-day comfort with many vehicle conveniences
  • Large, extra-durable, one-piece cargo box ensures hard-driving performance and longevity
  • Four-wheel independent suspension provides unparalleled ride over challenging terrain and excellent handling through corners
  • Sleek styling exemplifies capable off-road, yet hard-working performance

Specifications:

Key Specs

  • Engine power

    11.9* kW
    16 hp

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Towing capacity

    1500 lb
    680 kg

  • Front suspension

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear suspension

    Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Fuel capacity

    18.5 L
    4.9 U.S. gal.
Engine

  • Type

    4-cycle gas, V-twin, Dynamically tuned Carb, Overhead Valves (OHV)

  • Displacement

    570 cc

  • Power

    11.9* kW
    16 hp

  • Cooling system

    Air cooled
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Traction assist

    Positive locking, mechanically actuated (hand lever operated) rear differential lock

  • Descent control

    Not available
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear

    Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Brakes

  • Type

    196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in. (34.93mm) diameter twin-piston calipers

  • Park brake

    Automotive-style foot-actuated mechanical park brake system
Tires / Wheels

  • Front

    25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x8-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys

  • Rear

    25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x10-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys
Dimensions / Capacities

  • Wheelbase

    1.86 m
    72.8 in.

  • Weight

    Wet weight (includes fuel/fluids): 576 kg
    Wet weight (includes fuel/fluids): 1270 lb

  • Length

    2870 mm
    113 in.

  • Width

    1435 mm
    56.5 in.

  • Height

    1867 mm
    73.5 in.

  • Tread centers

    Front: 1220 mm
    Front: 48 in.
    Rear: 1168 mm
    Rear: 46 in.

  • Ground clearance

    267 mm minimum
    10.5 in. minimum

  • Fuel capacity

    18.5 L
    4.9 U.S. gal.

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Payload capacity

    408 kg
    900 lb

  • Towing capacity

    1500 lb
    680 kg

  • Hitch

    Standard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with recovery loops
Features

  • Color

    Green/Yellow; Olive/Black, Camo

  • Power steering

    Not available

  • Battery / Alternator / Power port

    340 CCA
    16 amp @ 4100 rpm, regulated
    12 VDC standard outlet

  • Instrumentation

    Digital display with hour meter with maintenance and driver seatbelt reminder; optional speedometer and engine oil temperature sensor

  • Storage

    2 cupholders, sealed underhood storage, glovebox

  • Seating

    Bench seat
Back to Top
DetailsFeaturesSpecifications

Details:

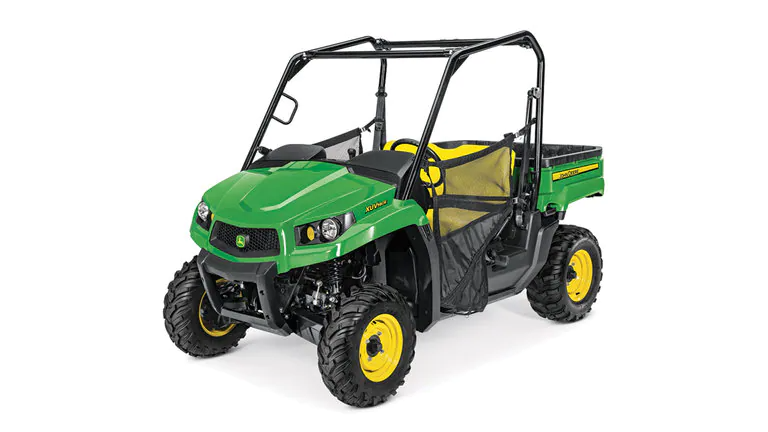

XUV590E

Crossover Utility Vehicle

  • Our fastest Mid-Size XUV with 32-hp (23.8 kW)
  • Easier shifting, with integrated park position
  • New electronic switch for instant 4WD engagement
  • Enhanced dash display for operation at a glance

Features:

  • Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities
  • Delivers quick acceleration and provides a top speed of more than 77 km/h (48 mph)
  • Designed for all-day comfort with many vehicle conveniences
  • Large, extra-durable, one-piece cargo box ensures hard-driving performance and longevity
  • Four-wheel independent suspension provides unparalleled ride over challenging terrain and excellent handling through corners

Specifications:

Key Specs

  • Engine power

    23.8* kW
    32 hp

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Towing capacity

    1500 lb
    680 kg

  • Front suspension

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear suspension

    Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Fuel capacity

    28 L
    7.4 U.S. gal.
Engine

  • Type

    4-cycle gas, Inline-twin, Electronic Fuel Injection (EFI), Overhead Valves (OHV)

  • Displacement

    586 cc

  • Power

    23.8* kW
    32 hp

  • Cooling system

    Liquid cooled
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Traction assist

    Positive locking, mechanically actuated (hand lever operated) rear differential lock

  • Descent control

    Not available
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear

    Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Brakes

  • Type

    196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in. (34.93mm) diameter twin-piston calipers

  • Park brake

    Automotive-style foot-actuated mechanical park brake system
Tires / Wheels

  • Front

    25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels

  • Rear

    25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels
Dimensions / Capacities

  • Wheelbase

    1.86 m
    72.8 in.

  • Weight

    Wet weight (includes fuel/fluids): 644 kg
    Wet weight (includes fuel/fluids): 1421 lb

  • Length

    2870 mm
    113 in.

  • Width

    1435 mm
    56.5 in.

  • Height

    1867 mm
    73.5 in.

  • Tread centers

    Front: 1220 mm
    Front: 48 in.
    Rear: 1168 mm
    Rear: 46 in.

  • Ground clearance

    267 mm minimum
    10.5 in. minimum

  • Fuel capacity

    28 L
    7.4 U.S. gal.

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Payload capacity

    408 kg
    900 lb

  • Towing capacity

    1500 lb
    680 kg

  • Hitch

    Standard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with recovery loops
Features

  • Color

    Green/Yellow; Olive/Black, Camo

  • Power steering

    Not Available

  • Battery / Alternator / Power port

    340 CCA
    65 amp @ 3400 rpm regulated
    12 VDC standard outlet

  • Instrumentation

    Digital instrument cluster displays critical vehicle information such as speed, engine rpm, fuel level, coolant temperature, trip, odometer, time

  • Storage

    2 cupholders, sealed underhood storage, glovebox

  • Seating

    Bench seat
Back to Top
DetailsFeaturesSpecifications

Details:

XUV825M S4

Crossover Utility Vehicle

  • Multi-passenger capability for four people
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Improved power steering for smoother operation

Features:

  • Superior terrain capability
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Equipped with power steering
  • Seating for four and rear under-seat storage

Specifications:

Key Specs

  • Engine power

    39* kW
    52 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    680 kg
    1500 lb

  • Front suspension

    Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel

  • Rear suspension

    Fully independent dual A-arm with adjustable coils and sway bar; 228.6 mm (9 in.) of travel

  • Final drive

    Park, high, low, neutral, reverse transaxle

  • Four wheel drive

    Dash switch actuated four-wheel drive system with limited slip front differential plus locking rear differential

  • Fuel capacity

    27.6 L
    7.3 U.S. gal.
Engine

  • Type

    4-cycle gas, electronic fuel injection (EFI)

  • Displacement

    812 cc

  • Power

    39* kW
    52 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Park, high, low, neutral, reverse transaxle

  • Four wheel drive

    Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Traction assist

    Positive locking, switch actuated rear differential lock

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel

  • Rear

    Fully independent dual A-arm with adjustable coils and sway bar; 228.6 mm (9 in.) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Optional factory installed secondary, hand operated
Tires / Wheels

  • Front

    27x9-R14 Maxxis® Bighorn® radials on steel or alloy rims
    27x9-R14 Predator hard-surface radials on steel or alloy rims

  • Rear

    27x11-R14 Maxxis Bighorn radials on steel or alloy rims
    27x11-R14 Predator hard-surface radials on steel or alloy rims
Dimensions / Capacities

  • Wheelbase

    2895.6 mm
    114 in.

  • Operating weight (includes fuel/fluids)

    953 kg
    2101 lb

  • Length

    3921 mm
    154 in.

  • Width

    1574 mm
    62 in.

  • Height

    1903 mm
    75 in.

  • Tread centers

    1305 mm
    51.4 in.

  • Ground clearance

    280 mm
    11 in.

  • Fuel capacity

    27.6 L
    7.3 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    592 kg
    1305 lb

  • Towing capacity

    680 kg
    1500 lb

  • Hitch

    Standard receiver: 5.1 cm
    2 in.
Features

  • Color

    Green and yellow, camouflage, olive and black

  • Power steering

    Yes

  • Battery / Alternator / Power port

    480 CCA
    85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)

  • Storage

    Two cup holders, under hood, glovebox, under rear seat

  • Seating

    Front and rear bench
Back to Top
DetailsFeaturesSpecifications

Details:

XUV560E S4

Crossover Utility Vehicle

  • Multi-passenger capability for four people
  • Easier shifting, with integrated park position
  • New electronic switch for instant 4WD engagement
  • New dash display with speed indicator and more

Features:

  • Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities
  • Delivers quick acceleration and provides a top speed of 45 km/h (28 mph)
  • Designed for all-day comfort with many vehicle conveniences
  • Large, extra-durable, one-piece cargo box ensures hard-driving performance and longevity
  • Four-wheel independent suspension provides unparalleled ride over challenging terrain and excellent handling through corners
  • Convertible cargo rack design offers additional cargo volume

Specifications:

Key Specs

  • Engine power

    11.9* kW
    16 hp

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Towing capacity

    1500 lb
    680 kg

  • Front suspension

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear suspension

    Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Fuel capacity

    28 L
    7.4 U.S. gal.
Engine

  • Type

    4-cycle gas, V-twin, Dynamically tuned Carb, Overhead Valves (OHV)

  • Displacement

    570 cc

  • Power

    11.9* kW
    16 hp

  • Cooling system

    Air cooled
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Traction assist

    Positive locking, mechanically actuated (hand lever operated) rear differential lock

  • Descent control

    Not available
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear

    Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Brakes

  • Type

    196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in. (34.93mm) diameter twin-piston calipers

  • Park brake

    Automotive-style foot-actuated mechanical park brake system
Tires / Wheels

  • Front

    25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x8-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys

  • Rear

    25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x10-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys
Dimensions / Capacities

  • Wheelbase

    2743 mm
    108 in.

  • Weight

    Wet weight (includes fuel/fluids): 746 kg
    Wet weight (includes fuel/fluids): 1646 lb

  • Length

    3658 mm
    144 in.

  • Width

    1435 mm
    56.5 in.

  • Height

    1880 mm
    74 in.

  • Tread centers

    Front: 1220 mm
    Front: 48 in.
    Rear: 1168 mm
    Rear: 46 in.

  • Ground clearance

    236 mm minimum
    9.3 in. minimum

  • Fuel capacity

    28 L
    7.4 U.S. gal.

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Payload capacity

    544 kg
    1200 lb

  • Towing capacity

    1500 lb
    680 kg

  • Hitch

    Standard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with recovery loops
Features

  • Color

    Green/Yellow

  • Power steering

    Not available

  • Battery / Alternator / Power port

    340 CCA
    16 amp @ 4100 rpm, regulated
    12 VDC standard outlet

  • Instrumentation

    Digital display with hour meter with maintenance and driver seatbelt reminder; optional speedometer and engine oil temperature sensor

  • Storage

    2 cupholders, sealed underhood storage, glovebox

  • Seating

    Bench seat
Back to Top
DetailsFeaturesSpecifications

Details:

XUV590M S4

Crossover Utility Vehicle

  • Multi-passenger capability for four people
  • Our fastest Mid-Size XUV with power steering
  • Easier shifting, with integrated park position
  • New electronic switch for instant 4WD engagement

Features:

  • Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities
  • Delivers quick acceleration and provides a top speed of more than 77 km/h (48 mph)
  • Designed for all-day comfort with many vehicle conveniences
  • Large, extra-durable, one-piece cargo box ensures hard-driving performance and longevity
  • Four-wheel independent suspension provides unparalleled ride over challenging terrain and excellent handling through corners
  • Power steering for excellent handling characteristics and low steering effort
  • Convertible cargo rack design offers additional cargo volume

Specifications:

Key Specs

  • Engine power

    23.8* kW
    32 hp

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Towing capacity

    1500 lb
    680 kg

  • Front suspension

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear suspension

    Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Fuel capacity

    28 L
    7.4 U.S. gal.
Engine

  • Type

    4-cycle gas, Inline-twin, Electronic Fuel Injection (EFI), Overhead Valves (OHV)

  • Displacement

    586 cc

  • Power

    23.8* kW
    32 hp

  • Cooling system

    Liquid cooled
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Traction assist

    Positive locking, mechanically actuated (hand lever operated) rear differential lock

  • Descent control

    Not available
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear

    Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Brakes

  • Type

    196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in. (34.93mm) diameter twin-piston calipers

  • Park brake

    Automotive-style foot-actuated mechanical park brake system
Tires / Wheels

  • Front

    25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x8-14 Maxxis Bighorn 2.0 6-ply rating on various color aluminum alloys

  • Rear

    25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x10-14 Maxxis Bighorn 2.0 6-ply rating on various color aluminum alloys
Dimensions / Capacities

  • Wheelbase

    2743 mm
    108 in.

  • Weight

    Wet weight (includes fuel/fluids): 752 kg
    Wet weight (includes fuel/fluids): 1659 lb

  • Length

    3658 mm
    144 in.

  • Width

    1435 mm
    56.5 in.

  • Height

    1880 mm
    74 in.

  • Tread centers

    Front: 1220 mm
    Front: 48 in.
    Rear: 1168 mm
    Rear: 46 in.

  • Ground clearance

    236 mm minimum
    9.3 in. minimum

  • Fuel capacity

    28 L
    7.4 U.S. gal.

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Payload capacity

    544 kg
    1200 lb

  • Towing capacity

    1500 lb
    680 kg

  • Hitch

    Standard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with recovery loops
Features

  • Color

    Green/Yellow; Olive/Black; Realtree™ Hardwoods HD Camo

  • Power steering

    Standard

  • Battery / Alternator / Power port

    340 CCA
    65 amp @ 3400 rpm regulated
    12 VDC standard outlet

  • Instrumentation

    Digital instrument cluster displays critical vehicle information such as speed, engine rpm, fuel level, coolant temperature, trip, odometer, time

  • Storage

    2 cupholders, sealed underhood storage, glovebox, center console, optional under seat

  • Seating

    Bench seat front/rear
Back to Top

Available models: HPX615EHPX815E

DetailsFeaturesSpecifications

Details:

HPX615E

Work Series Utility Vehicle

  • Electronic switch for instant 4WD engagement
  • New dash display, including fuel gauge
  • 16.4 cu ft (.46 cu m) cargo box with a 1,000 lb (450 kg) capacity
  • Real dumping cargo box with pickup-style tailgate

Features:

  • Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities
  • Features operator conveniences such as high-back bucket or bench seats, cup holders, glove box, and 12-V outlet
  • Heavy-duty suspension delivers excellent heavy hauling capabilities
  • Factory-installed occupant protective structure (OPS) or deluxe cab frame
  • Durable, versatile cargo box for hard-working performance

Specifications:

Key Specs

  • Engine power

    15.7* kW
    20 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    590 kg
    1300 lb

  • Front suspension

    Independent with McPherson Strut

  • Rear suspension

    Coil over shock

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    Yes

  • Fuel capacity

    20.1 L
    5.3 U.S. gal.
Engine

  • Type

    2-cylinder, 4-cycle gas

  • Displacement

    617 cc

  • Power

    15.7* kW
    20 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT)

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    Yes

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    No
Suspension

  • Front

    Independent with McPherson Strut

  • Rear

    Coil over shock
Brakes

  • Type

    Hydraulic disc brakes

  • Park brake

    Rear mechanical disk, hand operated
Tires / Wheels

  • Front

    24 x 9.5-10

  • Rear

    24 x 10.5-10
Dimensions / Capacities

  • Wheelbase

    1910 mm
    75.2 in.

  • Weight

    681 kg
    1500 lb

  • Length

    3022 mm
    119 in.

  • Width

    1486 mm
    58.5 in.

  • Height

    1867 mm
    73.5 in.

  • Tread centers

    Front: 1257.3 mm
    49.5 in.
    Rear: 1219.3 mm
    48 in.

  • Ground clearance

    152.4 mm
    6 in.

  • Fuel capacity

    20.1 L
    5.3 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    635 kg
    1400 lb

  • Towing capacity

    590 kg
    1300 lb

  • Hitch

    Standard receiver, 5.1 cm
    2 in.
Features

  • Color

    Green/yellow

  • Power steering

    No

  • Battery / Alternator / Power port

    480 CCA
    40 amp at 3200 rpm

  • Storage

    Cup holders, glovebox

  • Seating

    Bucket seats (bench available)
Back to Top
DetailsFeaturesSpecifications

Details:

HPX815E

Work Series Utility Vehicle

  • Electronic switch for instant 4WD engagement
  • New dash display, including fuel gauge
  • 16.4 cu ft (.46 cu m) cargo box with a 1,000 lb (450 kg) capacity
  • Powerful diesel engine system

Features:

  • Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities
  • Features operator conveniences such as high-back bucket or bench seats, cup holders, glove box, and 12-V outlet
  • Heavy-duty suspension delivers excellent heavy hauling capabilities
  • Factory-installed occupant protective structure (OPS) or deluxe cab frame
  • Durable, versatile cargo box for hard-working performance

Specifications:

Key Specs

  • Engine power

    13.57* kW
    18.2 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    590 kg
    1300 lb

  • Front suspension

    Independent with McPherson Strut

  • Rear suspension

    Coil over shock

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    Yes

  • Fuel capacity

    20.1 L
    5.3 U.S. gal.
Engine

  • Type

    3-cylinder, 4-cycle diesel

  • Displacement

    854 cc

  • Power

    13.57* kW
    18.2 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT)

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    Yes

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    No
Suspension

  • Front

    Independent with McPherson Strut

  • Rear

    Coil over shock
Brakes

  • Type

    Hydraulic disc brakes

  • Park brake

    Rear mechanical disk, hand operated
Tires / Wheels

  • Front

    24 x 9.5-10

  • Rear

    24 x 12.0-10
Dimensions / Capacities

  • Wheelbase

    1910 mm
    75.2 in.

  • Weight

    681 kg
    1526 lb

  • Length

    3022 mm
    119 in.

  • Width

    1486 mm
    58.5 in.

  • Height

    1867 mm
    73.5 in.

  • Tread centers

    Front: 1257.3 mm
    49.5 in.
    Rear: 1219.3 mm
    48 in.

  • Ground clearance

    152.4 mm
    6 in.

  • Fuel capacity

    20.1 L
    5.3 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    635 kg
    1400 lb

  • Towing capacity

    590 kg
    1300 lb

  • Hitch

    Standard receiver, 5.1 cm
    2 in.
Features

  • Color

    Green/yellow

  • Power steering

    No

  • Battery / Alternator / Power port

    480 CCA
    40 amp at 3200 rpm

  • Storage

    Cup holders, glovebox

  • Seating

    Bucket seats (bench available)
Back to Top
T Series Work Utility Vehicles

T Series Work Utility Vehicles

Available models: TS 4x2TX 4x2TH 6x4 GasTE 4x2 ElectricTH 6x4 Diesel

DetailsFeaturesSpecifications

Details:

TS 4x2

Traditional Utility Vehicle

  • Best in class work capability
  • Enhanced stability for better performance in difficult terrain
  • Best in class durability
  • Freight not included in list price

Features:

  • Système d'entraînement de précision
  • Offre des caractéristiques pratiques pour le conducteur comme des sièges baquets coussinés, des porte-gobelets, une prise 12 V, une boîte à gants et une jauge à carburant
  • Grande caisse de chargement durable pour le transport de charges lourdes

Specifications:

Key Specs

  • Engine power

    10.1 kW
    13.5 hp

  • Cargo box dimensions

    100.3 x 124.5 x 22.9 cm
    39.5 x 49 x 9 in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Towing capacity

    408 kg
    900 lb

  • Front suspension

    Independent spring-over-shock, single A-arm

  • Rear suspension

    Two high-floatation, low pressure tires (solid axles)

  • Final drive

    Fully enclosed; oil bath

  • Four wheel drive

    No

  • Fuel capacity

    18.9 L
    5 U.S. gal.
Engine

  • Type

    Four-cycle gas

  • Displacement

    400 cc
    24.4 cu in.

  • Power

    10.1 kW
    13.5 hp

  • Cooling system

    Air
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT)

  • Final drive

    Fully enclosed; oil bath

  • Four wheel drive

    No

  • Traction assist

    Mechanically activated differential lock

  • Descent control

    No
Suspension

  • Front

    Independent spring-over-shock, single A-arm

  • Rear

    Two high-floatation, low pressure tires (solid axles)
Brakes

  • Type

    Wet disk in transaxle

  • Park brake

    Wet disk, hand operated
Tires / Wheels

  • Front

    Two 22.5x10-8 4PR all-terrain on steel wheels
    Two 22.5x10-8 4PR turf on steel wheels

  • Rear

    Two 25x13-9 4PR all-terrain on steel wheels
    Two 25x12-9 4PR turf on steel wheels
Dimensions / Capacities

  • Wheelbase

    1770 mm
    69.7 in.

  • Weight

    Dry: 415 kg
    915 lb

  • Length

    2642 mm
    104 in.

  • Width

    1525 mm
    60 in.

  • Height

    1108 mm
    43.6 in.

  • Tread centers

    Front: 1270 mm
    50 in.
    Rear: 1220 mm
    48 in.

  • Ground clearance

    Under transaxle: 15.2 cm
    6 in.
    Foot platform: 24.9 cm
    9.8 in.

  • Fuel capacity

    18.9 L
    5 U.S. gal.

  • Cargo box dimensions

    100.3 x 124.5 x 22.9 cm
    39.5 x 49 x 9 in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Payload capacity

    408 kg
    900 lb

  • Towing capacity

    408 kg
    900 lb

  • Hitch

    Optional: 3.175 cm
    1.25 in.
Features

  • Color

    Green/yellow

  • Power steering

    No

  • Battery / Alternator / Power port

    340 CCA
    At 3700 rpm: 16.6 amp
    Regulated, 12-V outlet

  • Instrumentation

    Fuel gauge, hour meter

  • Storage

    Cup holders, glove box

  • Seating

    Bucket seats
Back to Top
DetailsFeaturesSpecifications

Details:

TX 4x2

Traditional Utility Vehicle

  • Best in class work capability
  • Wide stance for enhanced stability
  • Best in class cargo box

Features:

  • Powered by 11.6-kW (15.5-hp)*, 675-cc (41.2-cu in.), V-twin, four-cycle gas engine
  • Precision-engineered drive system
  • All-wheel hydraulic disc braking with dual master cylinder
  • Automotive-type rack and pinion steering with fully independent, single A-arm suspension
  • Stable design
  • Tires
  • Features operating conveniences such as high-back seats, cup holders, 12-V outlet, glove box, and fuel gauge
  • Equipped with rear receiver hitch
  • Durable deluxe cargo box

Specifications:

Key Specs

  • Engine power

    11.6 kW
    15.5 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    272 kg
    600 lb

  • Towing capacity

    454 kg
    1000 lb

  • Front suspension

    Independent spring-over-shock, single A-arm

  • Rear suspension

    Semi-independent coil over shock (COS) system

  • Final drive

    Fully enclosed; oil bath

  • Four wheel drive

    No

  • Fuel capacity

    18.9 L
    5 U.S. gal.
Engine

  • Type

    Four-cycle gas

  • Displacement

    675 cc
    41.2 cu in.

  • Power

    11.6 kW
    15.5 hp

  • Cooling system

    Air
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT)

  • Final drive

    Fully enclosed; oil bath

  • Four wheel drive

    No

  • Traction assist

    Mechanically activated differential lock

  • Descent control

    No
Suspension

  • Front

    Independent spring-over-shock, single A-arm

  • Rear

    Semi-independent COS system
Brakes

  • Type

    All-wheel hydraulic disc

  • Park brake

    Rear mechanical disk, hand operated
Tires / Wheels

  • Front

    Two 22x9.5-10 4PR all-terrain on steel wheels
    Two 22x9.5-10 4PR turf on steel wheels

  • Rear

    Two 24x10.5-10 4PR all-terrain on steel wheels
    Two 24x12-10 4PR turf on steel wheels
Dimensions / Capacities

  • Wheelbase

    1955.8 mm
    77 in.

  • Length

    2745.7 mm
    108.1 in.

  • Width

    1525 mm
    60 in.

  • Height

    1108 mm
    43.6 in.

  • Tread centers

    Front: 1270 mm
    50 in.
    Rear: 1220 mm
    48 in.

  • Ground clearance

    14.5 cm
    5.7 in.

  • Fuel capacity

    18.9 L
    5 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    272 kg
    600 lb

  • Payload capacity

    454 kg
    1000 lb

  • Towing capacity

    454 kg
    1000 lb

  • Hitch

    Standard: receiver hitch, 5.1 cm
    2 in.
Features

  • Color

    Green/yellow

  • Power steering

    No

  • Battery / Alternator / Power port

    340 CCA
    At 3700 rpm: 16.6 amp
    Regulated, 12-V outlet

  • Instrumentation

    Fuel gauge, hour meter

  • Storage

    Cup holders, glove box

  • Seating

    Bucket seats
Back to Top
DetailsFeaturesSpecifications

Details:

TH 6x4 Gas

Traditional Utility Vehicle

  • Top of the line heavy duty work vehicle
  • Best in class work capability
  • Wide stance for enhanced stability

Features:

  • Powered by 11.6-kW (15.5-hp)*, 675-cc (41.2-cu in.), air-cooled, V-twin, four-cycle gas engine
  • Precision-engineered drive system optimizes hauling, towing, and hill-climbing capabilities
  • Features operating conveniences such as high-back seats, cup holders, 12-V outlet, glove box, and fuel gauge
  • Durable deluxe cargo box is spacious and allows for easy loading and unloading

Specifications:

Key Specs

  • Engine power

    11.6 kW
    15.5 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    544 kg
    1200 lb

  • Towing capacity

    635 kg
    1400 lb

  • Front suspension

    Independent spring-over-shock, single A-arm

  • Rear suspension

    Two high-floatation, low pressure tires (solid axles)

  • Final drive

    Fully enclosed; oil bath

  • Four wheel drive

    All four rear wheels are driven, two front wheels are not driven

  • Fuel capacity

    18.9 L
    5 U.S. gal.
Engine

  • Type

    Four-cycle gas

  • Displacement

    675 cc
    41.2 cu in.

  • Power

    11.6 kW
    15.5 hp

  • Cooling system

    Air
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT)

  • Final drive

    Fully enclosed; oil bath

  • Four wheel drive

    All four rear wheels are driven, two front wheels are not driven

  • Traction assist

    Mechanically activated differential lock

  • Descent control

    No
Suspension

  • Front

    Independent spring-over-shock, single A-arm

  • Rear

    Two high-floatation, low pressure tires (solid axles)
Brakes

  • Type

    Wet disk in transaxle

  • Park brake

    Wet disk, hand operated
Tires / Wheels

  • Front

    Two 22.5x10-8 4PR all-terrain on steel wheels
    Two 22.5x10-8 4PR turf on steel wheels

  • Rear

    Four 25x13-9 4PR all-terrain on steel wheels
    Four 25x12-9 4PR turf on steel wheels
Dimensions / Capacities

  • Wheelbase

    Front to rear: 2006 mm
    79 in.
    Mid to rear: 680 mm
    26.8 in.

  • Length

    2642 mm
    104 in.

  • Width

    1525 mm
    60 in.

  • Height

    1108 mm
    43.6 in.

  • Tread centers

    Front: 1270 mm
    50 in.
    Rear: 1220 mm
    48 in.

  • Ground clearance

    Transaxle: 15.2 cm
    6 in.
    Foot platform: 24.9 cm
    9.8 in.

  • Fuel capacity

    18.9 L
    5 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    544 kg
    1200 lb

  • Payload capacity

    635 kg
    1400 lb

  • Towing capacity

    635 kg
    1400 lb

  • Hitch

    Optional: 3.175 cm
    1.25 in.
Features

  • Color

    Green/yellow

  • Power steering

    No

  • Battery / Alternator / Power port

    340 CCA
    At 3700 rpm: 16.6 amp
    Regulated, 12-V outlet

  • Instrumentation

    Fuel gauge, hour meter

  • Storage

    Cup holders, glove box

  • Seating

    Bucket seats
Back to Top
DetailsFeaturesSpecifications

Details:

TE 4x2 Electric

Utility Vehicle

  • Quiet electric operation
  • Wide stance for enhanced stability
  • Best in class cargo box
  • Zero emissions/zero fuel consumption

Features:

  • Drive system provides plenty of power to accelerate faster and climb hills better
  • Onboard battery charger
  • Heavy-duty frame
  • Features operating conveniences such as high-back cushioned seats, glove box, and automotive-style controls
  • Durable deluxe cargo box is spacious and allows for easy loading and unloading

Specifications:

Key Specs

  • Electrical system

    48 volt w/8 Trojan T-145 batteries

  • Brake type

    Dual rear wheel mechanical drum

  • Speed

    0-13 mph
    20.92 km/h
    (Can be adjusted with handheld programmer)

  • Front suspension

    Independent, spring over shock, single A-arm

  • Payload capacity

    900 lb
    408 kg

  • Towing capacity

    600 lb
    272 kg

  • Cargo capacity

    600 lb
    272 kg

  • Cargo box volume

    16.4 cu ft
    0.46 m3

  • Charger type

    High frequency switched-mode
Drive system

  • Motor

    Wound direct drive, 48VDC separately excited

  • Controller

    Separately excited, 400 amp max., Anti-roll away braking and alarm. Antistall motor protection. Regenerative braking. Diagnostic indicator. Full torque, reduced speed reverse.

  • Transaxle

    16.99:1 ratio with helical gearing

  • Electrical system

    48 volt w/8 Trojan T-145 batteries

  • Speed

    0-13 mph
    20.92 km/h
    (Can be adjusted with handheld programmer)

  • Gear selection

    Forward, Neutral, Reverse

  • Torque converter

    N/A

  • Battery

    Trojan T-145

  • Extended run time battery

    Not Available
Brakes

  • Type

    Dual rear wheel mechanical drum

  • Park brake

    Hand operated, multi-latch
Tires

  • Front

    2 - 22x9.5-10, 4-ply high-flotation turf

  • Rear

    2 - 24x12-10, 4-ply high-flotation turf
Suspension and Steering

  • Front

    Total Travel
    5 in.
    127 mm
    Independent, spring over shock, single A-arm

  • Rear

    Total travel
    Not Available
    2 hi-flotation, low pressure tires

  • Steering

    Rack and pinion
Dimensions

  • Height

    44.5 in.
    1130 mm

  • Width

    60 in.
    1524 mm

  • Length

    Without bumper
    104.9 in.
    2664 mm
    With bumper
    107.4 in.
    2728 mm

  • Ground Clearance

    Under transaxle
    196 mm
    7.7 in.
    Under foot platform
    7.3 in.
    185 mm

  • Front tread centers

    50 in.
    1270 mm

  • Rear tread centers

    48 in.
    1219 mm

  • Wheelbase

    76.4 in.
    194 cm

  • Vehicle weight

    1389 lb
    630 kg

  • Turning clearance circle

    22 ft
    6.7 m

  • Payload capacity

    900 lb
    408 kg

  • Towing capacity

    600 lb
    272 kg
Seats

  • Type

    Professional high back bucket, tilt forward

  • Seating capacity

    2

  • Seat adjustment

    Optional
Cargo box

  • Length

    45 in.
    1143 mm

  • Width

    52 inside in.
    1321 inside mm

  • Depth

    12 in.
    304.8 mm

  • Capacity

    600 lb
    272 kg

  • Volume

    16.4 cu ft
    0.46 m3

  • Height above ground

    30 in.
    762 mm

  • Material

    Polypropylene side panels and tailgate; steel floor and load guard

  • Tailgate

    Hinged at bottom, removable; side panels are removable

  • Dump

    Manual, power lift (optional)
Ground pressure

  • With 200 lb. operator only

    8.6 psi (fully loaded)
Frame

  • Type

    Mig welded uni-body, high strength steel
Charger

  • Type

    High frequency switched-mode

  • Input voltage

    120 VAC 60 Hz.

  • Input amperage (Nominal)

    12 A (15 A breaker max.)

  • Output voltage

    48 VDC nominal

  • Output amperage

    21 ADC

  • AC input connector

    IEC320/C14

  • AC power cord

    94 in.
    2.4 m
Machine

  • Other standard features

    Battery discharge indicator, reverse warning indicator, operator presence switch, hour meter, headlight switch, two cup holders, glove box
Fenders and hood

  • Type

    TPO - Rubber and Polypropylene
Back to Top
DetailsFeaturesSpecifications

Details:

TH 6x4 Diesel

Traditional Utility Vehicle

  • Top of the line heavy duty work vehicle
  • Diesel toughness and durability
  • Wide stance for enhanced stability
  • In-store pickup or delivery available

Features:

  • Powered by 13.6-kW (18.2-hp)*, 993-cc (60.6-cu in.), 3-cylinder, liquid-cooled, four-cycle diesel engine
  • Precision-engineered drive system optimizes hauling, towing, and hill-climbing capabilities
  • Features operating conveniences such as high-back seats, cup holders, 12-V outlet, glove box, and fuel gauge
  • Durable deluxe cargo box is spacious and allows for easy loading and unloading

Specifications:

Key Specs

  • Engine power

    13.6 kW
    18.2 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    544 kg
    1200 lb

  • Towing capacity

    635 kg
    1400 lb

  • Front suspension

    Independent spring-over-shock, single A-arm

  • Rear suspension

    Two high-floatation, low pressure tires (solid axles)

  • Final drive

    Fully enclosed; oil bath

  • Four wheel drive

    All four rear wheels are driven, two front wheels are not driven

  • Fuel capacity

    18.9 L
    5 U.S. gal.
Engine

  • Type

    3-cylinder, four-cycle diesel

  • Displacement

    854 cc
    52.1 cu in.

  • Power

    13.6 kW
    18.2 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT)

  • Final drive

    Fully enclosed; oil bath

  • Four wheel drive

    All four rear wheels are driven, two front wheels are not driven

  • Traction assist

    Mechanically activated differential lock

  • Descent control

    No
Suspension

  • Front

    Independent spring-over-shock, single A-arm

  • Rear

    Two high-floatation, low pressure tires (solid axles)
Brakes

  • Type

    Wet disk in transaxle

  • Park brake

    Wet disk, hand operated
Tires / Wheels

  • Front

    Two 22.5x10-8 4PR all-terrain on steel wheels
    Two 22.5x10-8 4PR turf on steel wheels

  • Rear

    Four 25x13-9 4PR all-terrain on steel wheels
    Four 25x12-9 4PR turf on steel wheels
Dimensions / Capacities

  • Wheelbase

    Front to rear: 2006 mm
    79 in.
    Mid to rear: 680 mm
    26.8 in.

  • Length

    2769 mm
    109 in.

  • Width

    1525 mm
    60 in.

  • Height

    1108 mm
    43.6 in.

  • Tread centers

    Front: 1270 mm
    50 in.
    Rear: 1220 mm
    48 in.

  • Ground clearance

    16.25 cm
    6.4 in.

  • Fuel capacity

    18.9 L
    5 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    544 kg
    1200 lb

  • Payload capacity

    726 kg
    1600 lb

  • Towing capacity

    635 kg
    1400 lb

  • Hitch

    Optional: 3.175 cm
    1.25 in.
Features

  • Color

    Green/yellow

  • Power steering

    No

  • Battery / Alternator / Power port

    340 CCA
    40 amp
    12-V outlet

  • Instrumentation

    Fuel gauge, hour meter

  • Storage

    Cup holders, glove box

  • Seating

    Bucket seats
Back to Top
Full Size Utility Vehicles

Full Size Utility Vehicles

Mid Size XUV

Mid Size XUV

HPX Utility Vehicles

HPX Utility Vehicles

Available models: XUV825M S4XUV835EXUV835MXUV835M CabXUV835M HVACXUV835RXUV855M S4XUV865EXUV865MXUV865M HVACXUV865R

DetailsFeaturesSpecifications

Details:

XUV825M S4

Crossover Utility Vehicle

  • Capacity to Comfortably Seat 4
  • Convertible Rear Seat/Cargo Space
  • Deluxe Cargo Box Versatility
XUV825M S4

Features:

  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Superior terrain capability
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Equipped with power steering
  • Seating for four and rear under-seat storage

Specifications:

Key Specs

  • Engine power

    39* kW
    52 hp

  • Maximum traveling speed

    0-44 hi forward, 0-27 lo forward, 0-30 reverse mph mph
    0-71 hi forward, 0-43 lo forward, 0-48 reverse km/h km/h

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    1500 lb
    680 kg

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 8 inches (203 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9 inches (228.6 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    7.3 U.S. gal.
    27.6 L
Engine

  • Type

    4-cycle gas, Electronic Fuel Injection (EFI)

  • Displacement

    812 cc

  • Power

    39* kW
    52 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes

  • Maximum traveling speed

    0-44 hi forward, 0-27 lo forward, 0-30 reverse mph mph
    0-71 hi forward, 0-43 lo forward, 0-48 reverse km/h km/h
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 8 inches (203 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9 inches (228.6 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, hand operated
Tires / Wheels

  • Front

    27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    114 in.
    2895.6 mm

  • Dry weight

    1992 lb
    903.5 kg

  • Length

    154 in.
    3921 mm

  • Width

    62 in.
    1574 mm

  • Height

    75 in.
    1903 mm

  • Tread centers

    51.4 in.
    1305 mm

  • Ground clearance

    11 in.
    280 mm

  • Fuel capacity

    7.3 U.S. gal.
    27.6 L

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    1400 lb
    635 kg

  • Towing capacity

    1500 lb
    680 kg

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    Yes

  • Battery / Alternator / Power port

    480 CCA
    85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, EPAS indicator)

  • Storage

    2 Cup Holders, Under Hood, Glovebox, Under Rear Seat

  • Seating

    Bench - Front and Rear
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV835E

Crossover Utility Vehicle

  • Three person cockpit
  • Adjustable driver’s seat with tilt steering
  • Over 16 gallons (57 L) of enclosed storage
  • Over 45 mph (72 KM/H) top speed
XUV835E

Features:

  • Roomy and quiet operator station
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Superior terrain capability
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • E-trim details and electrical system

Specifications:

Key Specs

  • Engine power

    43* kW
    54* hp

  • Maximum traveling speed

    0-45+ hi forward, 0-29 lo forward, 0-33 reverse mph
    0-72 hi forward, 0-47 lo forward, 0-53 reverse km/h

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle gas, Electronic Fuel Injection (EFI)

  • Displacement

    812 cc

  • Power

    43* kW
    54* hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes

  • Maximum traveling speed

    0-45+ hi forward, 0-29 lo forward, 0-33 reverse mph
    0-72 hi forward, 0-47 lo forward, 0-53 reverse km/h
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Dry weight

    823 kg
    1810 lb
    With Cab and HVAC: 1019 kg
    With Cab and HVAC: 2241 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)

  • Headlights

    Halogen - Single Beam (LED Dual Beam on R Trim)
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV835M

Crossover Utility Vehicle

  • Three person cockpit
  • Power steering for maneuverability
  • Over 16 gallons (57 L) of enclosed storage
XUV835M

Features:

  • Roomy and quiet operator station
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Superior terrain capability
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Attachment-ready electrical system
  • Equipped with power steering
  • M trim details

Specifications:

Key Specs

  • Engine power

    43* kW
    54* hp

  • Maximum traveling speed

    0-45+ hi forward, 0-29 lo forward, 0-33 reverse mph
    0-72 hi forward, 0-47 lo forward, 0-53 reverse km/h

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle gas, Electronic Fuel Injection (EFI)

  • Displacement

    812 cc

  • Power

    43* kW
    54* hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes

  • Maximum traveling speed

    0-45+ hi forward, 0-29 lo forward, 0-33 reverse mph
    0-72 hi forward, 0-47 lo forward, 0-53 reverse km/h
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Dry weight

    823 kg
    1810 lb
    With Cab and HVAC: 1019 kg
    With Cab and HVAC: 2241 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)

  • Headlights

    Halogen - Single Beam (LED Dual Beam on R Trim)
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV835M Cab

Crossover Utility Vehicle

  • Three person cockpit
  • Power steering for maneuverability
  • Over 16 gallons (57 L) of enclosed storage
  • Factory-installed cab
XUV835M Cab

Features:

  • Roomy and quiet operator station
  • Enhanced cab comfort
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Superior terrain capability
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Attachment-ready electrical system
  • Equipped with power steering
  • M trim details

Specifications:

Key Specs

  • Engine power

    43* kW
    54* hp

  • Maximum traveling speed

    0-45+ hi forward, 0-29 lo forward, 0-33 reverse mph
    0-72 hi forward, 0-47 lo forward, 0-53 reverse km/h

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle gas, Electronic Fuel Injection (EFI)

  • Displacement

    812 cc

  • Power

    43* kW
    54* hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes

  • Maximum traveling speed

    0-45+ hi forward, 0-29 lo forward, 0-33 reverse mph
    0-72 hi forward, 0-47 lo forward, 0-53 reverse km/h
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Dry weight

    970 kg
    2134 lb
    With Cab and HVAC: 1019 kg
    With Cab and HVAC: 2241 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1763 mm
    69.4 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1987 mm
    78.25 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)

  • Headlights

    Halogen - Single Beam (LED Dual Beam on R Trim)
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV835M HVAC

Crossover Utility Vehicle

  • Three person cockpit
  • Power steering for maneuverability
  • Over 16 gallons (57 L) of enclosed storage
  • Factory-installed cab with heat and A/C
XUV835M HVAC

Features:

  • Roomy and quiet operator station
  • Enhanced cab comfort
  • Efficient heating, ventilation, and air conditioning (HVAC) system
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Superior terrain capability
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Attachment-ready electrical system
  • Equipped with power steering
  • M trim details

Specifications:

Key Specs

  • Engine power

    43* kW
    54* hp

  • Maximum traveling speed

    0-45+ hi forward, 0-29 lo forward, 0-33 reverse mph
    0-72 hi forward, 0-47 lo forward, 0-53 reverse km/h

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle gas, Electronic Fuel Injection (EFI)

  • Displacement

    812 cc

  • Power

    43* kW
    54* hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes

  • Maximum traveling speed

    0-45+ hi forward, 0-29 lo forward, 0-33 reverse mph
    0-72 hi forward, 0-47 lo forward, 0-53 reverse km/h
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Dry weight

    823 kg
    1810 lb
    With Cab and HVAC: 1019 kg
    With Cab and HVAC: 2241 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)

  • Headlights

    Halogen - Single Beam (LED Dual Beam on R Trim)
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV835R

Crossover Utility Vehicle

  • Three person cockpit
  • Power steering for maneuverability
  • Long lasting LED lights, standard
  • Cab with heat and A/C, standard
XUV835R

Features:

  • Roomy and quiet operator station
  • Enhanced cab comfort
  • Efficient heating, ventilation, and air conditioning (HVAC) system
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Superior terrain capability
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Attachment-ready electrical system
  • Equipped with power steering
  • R trim details

Specifications:

Key Specs

  • Engine power

    43* kW
    54* hp

  • Maximum traveling speed

    0-45+ hi forward, 0-29 lo forward, 0-33 reverse mph
    0-72 hi forward, 0-47 lo forward, 0-53 reverse km/h

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle gas, Electronic Fuel Injection (EFI)

  • Displacement

    812 cc

  • Power

    43* kW
    54* hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes

  • Maximum traveling speed

    0-45+ hi forward, 0-29 lo forward, 0-33 reverse mph
    0-72 hi forward, 0-47 lo forward, 0-53 reverse km/h
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Dry weight

    823 kg
    1810 lb
    With Cab and HVAC: 1019 kg
    With Cab and HVAC: 2241 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)

  • Headlights

    Halogen - Single Beam (LED Dual Beam on R Trim)
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV855M S4

Crossover Utility Vehicle

  • Capacity to Comfortably Seat 4
  • Convertible Rear Seat/Cargo Space
  • Superior Terrain Capability
XUV855M S4

Features:

  • Powerful diesel engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Superior terrain capability
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Equipped with power steering
  • Seating for four and rear under-seat storage

Specifications:

Key Specs

  • Engine power

    22.8 hp
    17.0* kW

  • Maximum traveling speed

    0-32 hi forward, 0-15 lo forward, 0-17 reverse mph
    0-51 hi forward, 0-24 lo forward, 0-27 reverse km/h

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    1500 lb
    680 kg

  • Front suspension

    Fully independent dual A-Arm with adjustable coils

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    7.3 U.S. gal.
    27.6 L
Engine

  • Type

    4-cycle diesel

  • Displacement

    854 cc

  • Power

    22.8 hp
    17.0* kW

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes

  • Maximum traveling speed

    0-32 hi forward, 0-15 lo forward, 0-17 reverse mph
    0-51 hi forward, 0-24 lo forward, 0-27 reverse km/h
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, hand operated
Tires / Wheels

  • Front

    27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    114 in.
    2895.6 mm

  • Dry weight

    2018 lb
    915.3 kg

  • Length

    154 in.
    3911 mm

  • Width

    62 in.
    1571 mm

  • Height

    75 in.
    1903 mm

  • Tread centers

    51.4 in.
    1305 mm

  • Ground clearance

    11 in.
    280 mm

  • Fuel capacity

    7.3 U.S. gal.
    27.6 L

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    1400 lb
    635 kg

  • Towing capacity

    1500 lb
    680 kg

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    Yes

  • Battery / Alternator / Power port

    480 CCA
    55 amp @ 7000 rpm regulated, 660 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, glow plug indicator, EPAS indicator)

  • Storage

    2 Cup Holders, Under Hood, Glovebox, Under Rear Seat

  • Seating

    Bench - Front and Rear
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV865E

Crossover Utility Vehicle

  • Three person cockpit
  • Adjustable driver’s seat with tilt steering
  • Over 16 gallons (57 L) of enclosed storage
  • Powerful diesel engine system
XUV865E

Features:

  • Roomy and quiet operator station
  • Powerful diesel engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Superior terrain capability
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • E-trim details and electrical system

Specifications:

Key Specs

  • Engine power

    17.0* kW
    22.8 hp

  • Maximum traveling speed

    0-32 hi forward, 0-15 lo forward, 0-18 reverse mph
    0-51 hi forward, 0-24 lo forward, 0-29 reverse km/h

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle diesel

  • Displacement

    854 cc

  • Power

    17.0* kW
    22.8 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes

  • Maximum traveling speed

    0-32 hi forward, 0-15 lo forward, 0-18 reverse mph
    0-51 hi forward, 0-24 lo forward, 0-29 reverse km/h
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Dry weight

    839 kg
    1845 lb
    With Cab and HVAC: 1101 kg
    With Cab and HVAC: 2202 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    1400 lb
    635 kg

  • Towing capacity

    680 kg
    1500 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 55 amp @ 7000 rpm, regulated, 660 watts (85 amp @ 7000 rpm, 1020 watts, for HVAC units)

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, glow plug indicator)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)

  • Headlights

    Halogen - Single Beam (LED Dual Beam on R Trim)
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV865M

Crossover Utility Vehicle

  • Three person cockpit
  • Power steering for maneuverability
  • Over 15 gallons (56 L) of enclosed storage
  • Powerful diesel engine system
XUV865M

Features:

  • Roomy and quiet operator station
  • Powerful diesel engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Superior terrain capability
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Attachment-ready electrical system
  • Equipped with power steering
  • M trim details

Specifications:

Key Specs

  • Engine power

    17.0* kW
    22.8 hp

  • Maximum traveling speed

    0-32 hi forward, 0-15 lo forward, 0-18 reverse mph
    0-51 hi forward, 0-24 lo forward, 0-29 reverse km/h

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle diesel

  • Displacement

    854 cc

  • Power

    17.0* kW
    22.8 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes

  • Maximum traveling speed

    0-32 hi forward, 0-15 lo forward, 0-18 reverse mph
    0-51 hi forward, 0-24 lo forward, 0-29 reverse km/h
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Dry weight

    839 kg
    1845 lb
    With Cab and HVAC: 1101 kg
    With Cab and HVAC: 2202 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    1400 lb
    635 kg

  • Towing capacity

    680 kg
    1500 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 55 amp @ 7000 rpm, regulated, 660 watts (85 amp @ 7000 rpm, 1020 watts, for HVAC units)

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, glow plug indicator)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)

  • Headlights

    Halogen - Single Beam (LED Dual Beam on R Trim)
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV865M HVAC

Crossover Utility Vehicle

  • Three person cockpit
  • Power steering for maneuverability
  • Over 16 gallons (57 L) of enclosed storage
  • Powerful diesel engine system
  • Factory-installed cab with heat and A/C
XUV865M HVAC

Features:

  • Roomy and quiet operator station
  • Enhanced cab comfort
  • Efficient heating, ventilation, and air conditioning (HVAC) system
  • Powerful diesel engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Superior terrain capability
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Attachment-ready electrical system
  • Equipped with power steering
  • M trim details

Specifications:

Key Specs

  • Engine power

    17.0* kW
    22.8 hp

  • Maximum traveling speed

    0-32 hi forward, 0-15 lo forward, 0-18 reverse mph
    0-51 hi forward, 0-24 lo forward, 0-29 reverse km/h

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle diesel

  • Displacement

    854 cc

  • Power

    17.0* kW
    22.8 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes

  • Maximum traveling speed

    0-32 hi forward, 0-15 lo forward, 0-18 reverse mph
    0-51 hi forward, 0-24 lo forward, 0-29 reverse km/h
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)

  • Rear

    25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Dry weight

    839 kg
    1845 lb
    With Cab and HVAC: 1101 kg
    With Cab and HVAC: 2202 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    1400 lb
    635 kg

  • Towing capacity

    680 kg
    1500 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 7000 rpm, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, glow plug indicator)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)

  • Headlights

    Halogen - Single Beam (LED Dual Beam on R Trim)
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV865R

Crossover Utility Vehicle

  • Three person cockpit
  • Power steering for maneuverability
  • Long lasting LED lights, standard
  • Powerful diesel engine system with cab, heat, and A/C, standard
XUV865R

Features:

  • Roomy and quiet operator station
  • Enhanced cab comfort
  • Efficient heating, ventilation, and air conditioning (HVAC) system
  • Powerful diesel engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Superior terrain capability
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Attachment-ready electrical system
  • Equipped with power steering
  • R trim details

Specifications:

Key Specs

  • Engine power

    17.0* kW
    22.8 hp

  • Maximum traveling speed

    0-32 hi forward, 0-15 lo forward, 0-18 reverse mph
    0-51 hi forward, 0-24 lo forward, 0-29 reverse km/h

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    907 kg
    2000 lb

  • Front suspension

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear suspension

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.
Engine

  • Type

    4-cycle diesel

  • Displacement

    854 cc

  • Power

    17.0* kW
    22.8 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    On-demand true four-wheel drive system

  • Traction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    Yes

  • Maximum traveling speed

    0-32 hi forward, 0-15 lo forward, 0-18 reverse mph
    0-51 hi forward, 0-24 lo forward, 0-29 reverse km/h
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel

  • Rear

    Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Driveline, internal wet multi-disc, foot operated (hand release)
Tires / Wheels

  • Front

    26x9-12 Ancla M-T (Aggressive Terrain) or 25x9-12 Terrahawk AT (All Terrain) or 27x9-R14 Maxxis Big Horn Radials (Extreme Terrain)

  • Rear

    26x11-12 Ancla M-T (aggressive terrain) or 25x11-12 Terrahawk AT (all terrain) or 27x11-R14 Maxxis Big Horn Radials (Extreme Terrain)
Dimensions / Capacities

  • Wheelbase

    2146 mm
    84.5 in.

  • Dry weight

    839 kg
    1845 lb
    With Cab and HVAC: 1001 kg
    With Cab and HVAC: 2202 lb
    *Additional Attachments and Accessories will add weight

  • Length

    3228 mm
    127 in.

  • Width

    1618 mm
    63.7 in.
    With doors: 1763 mm
    With doors: 69.4 in.

  • Height

    1981 mm
    78 in.
    With roof: 1987 mm
    With roof: 78.25 in.

  • Tread centers

    Front: 1341 mm
    Front: 52.8 in.
    Rear: 1259 mm
    Rear: 49.6 in.

  • Ground clearance

    284 mm
    11.2 in.

  • Fuel capacity

    42.4 L
    11.2 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    680 kg
    1500 lb

  • Towing capacity

    907 kg
    2000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow, Camouflage, Olive and Black

  • Power steering

    No on E Trim; Yes on M and R Trim

  • Battery / Alternator / Power port

    480 CCA 85 amp @ 7000 rpm, 1020 watts

  • Instrumentation

    Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, glow plug indicator)

  • Storage

    4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit

  • Seating

    Bench (Available Bucket Seats on E and M Trim)

  • Headlights

    Halogen - Single Beam (LED Dual Beam on R Trim)
Additional information

  • Country of Manufacture

    U.S.
Back to Top

Available models: XUV560EXUV590EXUV590MXUV825M S4XUV560E S4XUV590M S4

DetailsFeaturesSpecifications

Details:

XUV560E

Crossover Utility Vehicle

  • Four-wheel independent suspension for excellent ride and handling
  • Ergonomic operator station with easy-to-use controls
  • Versatile customization
XUV560E

Features:

  • Delivers quick acceleration and provides a top speed of 28 mph (45 km/h)
  • Designed for all-day comfort with many vehicle conveniences
  • Large, extra-durable, one-piece cargo box ensures hard-driving performance and longevity
  • Four-wheel independent suspension provides unparalleled ride over challenging terrain and excellent handling through corners
  • Sleek styling exemplifies capable off-road, yet hard-working performance

Specifications:

Key Specs

  • Engine power

    11.9* kW
    16 hp

  • Maximum traveling speed

    0-28 mph (0-45 kph) High Forward, 0-21 mph (0-34 kph) Low Forward, 0-16 mph (0-26 kph) Reverse

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Towing capacity

    1500 lb
    680 kg

  • Front suspension

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear suspension

    Fully independent with lower H-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Fuel capacity

    18.5 L
    4.9 U.S. gal.
Engine

  • Type

    4-cycle gas, V-twin, Dynamically tuned Carb, Overhead Valves (OHV)

  • Displacement

    570 cc

  • Power

    11.9* kW
    16 hp

  • Cooling system

    Air cooled
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Traction assist

    Positive locking, mechanically actuated (hand lever operated) rear differential lock

  • Descent control

    Not available

  • Maximum traveling speed

    0-28 mph (0-45 kph) High Forward, 0-21 mph (0-34 kph) Low Forward, 0-16 mph (0-26 kph) Reverse
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear

    Fully independent with lower H-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Brakes

  • Type

    196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in. (34.93mm) diameter twin-piston calipers

  • Park brake

    Automotive-style foot-actuated mechanical park brake system
Tires / Wheels

  • Front

    25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x8-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys

  • Rear

    25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x10-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys
Dimensions / Capacities

  • Wheelbase

    1.86 m
    72.8 in.

  • Dry weight

    Wet weight (includes fuel/fluids): 576 kg
    Wet weight (includes fuel/fluids): 1270 lb

  • Length

    2870 mm
    113 in.

  • Width

    1435 mm
    56.5 in.

  • Height

    1867 mm
    73.5 in.

  • Tread centers

    Front: 1220 mm
    Front: 48 in.
    Rear: 1168 mm
    Rear: 46 in.

  • Ground clearance

    267 mm minimum
    10.5 in. minimum

  • Fuel capacity

    18.5 L
    4.9 U.S. gal.

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Payload capacity

    408 kg
    900 lb

  • Towing capacity

    1500 lb
    680 kg

  • Hitch

    Standard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with recovery loops
Features

  • Color

    Green/Yellow; Olive/Black, Camo

  • Power steering

    Not available

  • Battery / Alternator / Power port

    340 CCA
    16 amp @ 4100 rpm, regulated
    12 VDC standard outlet

  • Instrumentation

    Digital display with hour meter with maintenance and driver seatbelt reminder; optional speedometer and engine oil temperature sensor

  • Storage

    2 cupholders, sealed underhood storage, glovebox

  • Seating

    Bench seat
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV590E

Crossover Utility Vehicle

  • Four-wheel independent suspension for excellent ride and handling
  • Balanced acceleration and top speed
  • Quiet and comfortable operator station
XUV590E

Features:

  • Delivers quick acceleration and provides a top speed of more than 77 km/h (48 mph)
  • Designed for all-day comfort with many vehicle conveniences
  • Large, extra-durable, one-piece cargo box ensures hard-driving performance and longevity
  • Four-wheel independent suspension provides unparalleled ride over challenging terrain and excellent handling through corners

Specifications:

Key Specs

  • Engine power

    23.8* kW
    32 hp

  • Maximum traveling speed

    0-48 mph (0-77 kph) High Forward, 0-28 mph (0-45 kph) Low Forward, 0-22 mph (0-35 kph) Reverse

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Towing capacity

    1500 lb
    680 kg

  • Front suspension

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear suspension

    Fully independent with lower H-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Fuel capacity

    28 L
    7.4 U.S. gal.
Engine

  • Type

    4-cycle gas, Inline-twin, Electronic Fuel Injection (EFI), Overhead Valves (OHV)

  • Displacement

    586 cc

  • Power

    23.8* kW
    32 hp

  • Cooling system

    Liquid cooled
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Traction assist

    Positive locking, mechanically actuated (hand lever operated) rear differential lock

  • Descent control

    Not available

  • Maximum traveling speed

    0-48 mph (0-77 kph) High Forward, 0-28 mph (0-45 kph) Low Forward, 0-22 mph (0-35 kph) Reverse
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear

    Fully independent with lower H-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Brakes

  • Type

    196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in. (34.93mm) diameter twin-piston calipers

  • Park brake

    Automotive-style foot-actuated mechanical park brake system
Tires / Wheels

  • Front

    25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels

  • Rear

    25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels
Dimensions / Capacities

  • Wheelbase

    1.86 m
    72.8 in.

  • Dry weight

    Wet weight (includes fuel/fluids): 644 kg
    Wet weight (includes fuel/fluids): 1421 lb

  • Length

    2870 mm
    113 in.

  • Width

    1435 mm
    56.5 in.

  • Height

    1867 mm
    73.5 in.

  • Tread centers

    Front: 1220 mm
    Front: 48 in.
    Rear: 1168 mm
    Rear: 46 in.

  • Ground clearance

    267 mm minimum
    10.5 in. minimum

  • Fuel capacity

    28 L
    7.4 U.S. gal.

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Payload capacity

    408 kg
    900 lb

  • Towing capacity

    1500 lb
    680 kg

  • Hitch

    Standard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with recovery loops
Features

  • Color

    Green/Yellow; Olive/Black, Camo

  • Power steering

    Not Available

  • Battery / Alternator / Power port

    340 CCA
    65 amp @ 3400 rpm regulated
    12 VDC standard outlet

  • Instrumentation

    Digital instrument cluster displays critical vehicle information such as speed, engine rpm, fuel level, coolant temperature, trip, odometer, time

  • Storage

    2 cupholders, sealed underhood storage, glovebox

  • Seating

    Bench seat
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV590M

Crossover Utility Vehicle

  • Four-wheel independent suspension for excellent ride and handling
  • Balanced acceleration and top speed
  • Quiet and comfortable operator station
XUV590M

Features:

  • Delivers quick acceleration and provides a top speed of more than 77 km/h (48 mph)
  • Designed for all-day comfort with many vehicle conveniences
  • Large, extra-durable, one-piece cargo box ensures hard-driving performance and longevity
  • Four-wheel independent suspension provides unparalleled ride over challenging terrain and excellent handling through corners
  • Power steering for excellent handling characteristics and low steering effort
  • Occupant protective structure (OPS) and occupant side retention (OSR)

Specifications:

Key Specs

  • Engine power

    23.8* kW
    32 hp

  • Maximum traveling speed

    High forward: 0-77 km/h
    0-48 mph
    Low forward: 0-45 km/h
    0-28 mph
    Reverse: 0-35 km/h
    0-22 mph

  • Cargo box dimensions

    82 cm x 120.9 cm x 29.7 cm (0.25 m3)
    32.3 in. x 47.6 in. x 11.7 in. (8.9 cu ft)

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Towing capacity

    680 kg
    1500 lb

  • Front suspension

    Fully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar

  • Rear suspension

    Fully independent with lower H-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash-lever-actuated four-wheel drive system with limited slip front differential plus locking rear differential

  • Fuel capacity

    28 L
    7.4 U.S. gal.
Engine

  • Type

    4-cycle gas, inline-twin, electronic fuel injection (EFI), overhead valves (OHV)

  • Displacement

    586 cc

  • Power

    23.8* kW
    32 hp

  • Cooling system

    Liquid cooled
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash-lever-actuated four-wheel drive system with limited slip front differential plus locking rear differential

  • Traction assist

    Positive locking, mechanically actuated (hand-lever-operated) rear differential lock

  • Descent control

    Not available

  • Maximum traveling speed

    High forward: 0-77 km/h
    0-48 mph
    Low forward: 0-45 km/h
    0-28 mph
    Reverse: 0-35 km/h
    0-22 mph
Suspension

  • Front

    Fully independent dual A-arm with adjustable coil-over shocks, 203 mm (8 in.) travel, anti-roll bar

  • Rear

    Fully independent with lower H-arm and upper camber link with adjustable coil-over shocks, 203 mm (8 in.) travel
Brakes

  • Type

    196 mm (7.7 in.) ventilated four-wheel stainless-steel disc brakes with 34.93 mm (1.375 in.) diameter hydraulic twin-piston calipers

  • Park brake

    Automotive-style, foot-actuated mechanical park brake system
Tires / Wheels

  • Rear

    25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels
    Optional: 26x10-14 Maxxis Bighorn 2.0 6-ply rating on various color aluminum alloys
Dimensions / Capacities

  • Wheelbase

    1.86 m
    72.8 in.

  • Dry weight

    Wet weight (includes fuel/fluids): 650 kg
    Wet weight (includes fuel/fluids): 1434 lb

  • Length

    2870 mm
    113 in.

  • Width

    1435 mm
    56.5 in.

  • Height

    1867 mm
    73.5 in.

  • Tread centers

    Front: 1220 mm
    Front: 48 in.
    Rear: 1168 mm
    Rear: 46 in.

  • Ground clearance

    267 mm minimum
    10.5 in. minimum

  • Fuel capacity

    28 L
    7.4 U.S. gal.

  • Cargo box dimensions

    82 cm x 120.9 cm x 29.7 cm (0.25 m3)
    32.3 in. x 47.6 in. x 11.7 in. (8.9 cu ft)

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Payload capacity

    408 kg
    900 lb

  • Towing capacity

    680 kg
    1500 lb

  • Hitch

    Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops
Features

  • Color

    Green/yellow, olive/black, or Realtree™ Hardwoods HD Camo

  • Power steering

    Standard

  • Battery / Alternator / Power port

    340 CCA
    65 amp @ 3400 rpm regulated
    12 VDC standard outlet

  • Instrumentation

    Digital instrument cluster displays critical vehicle information such as speed, engine rpm, fuel level, coolant temperature, trip, odometer, time

  • Storage

    Two cupholders, sealed underhood storage, glovebox

  • Seating

    Bench seat
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV825M S4

Crossover Utility Vehicle

  • Multi-passenger capability for four people
  • Easier shifting, with integrated park position
  • Electronic switch for instant 4WD engagement
  • Improved power steering for smoother operation
XUV825M S4

Features:

  • Superior terrain capability
  • Powerful gas engine delivers superb starting, idling, and throttle response
  • Dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics
  • Extra-durable deluxe cargo box ensures hard-working performance and longevity
  • Equipped with power steering
  • Seating for four and rear under-seat storage

Specifications:

Key Specs

  • Engine power

    39* kW
    52 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    680 kg
    1500 lb

  • Front suspension

    Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel

  • Rear suspension

    Fully independent dual A-arm with adjustable coils and sway bar; 228.6 mm (9 in.) of travel

  • Final drive

    Park, high, low, neutral, reverse transaxle

  • Four wheel drive

    Dash switch actuated four-wheel drive system with limited slip front differential plus locking rear differential

  • Fuel capacity

    27.6 L
    7.3 U.S. gal.
Engine

  • Type

    4-cycle gas, electronic fuel injection (EFI)

  • Displacement

    812 cc

  • Power

    39* kW
    52 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    Park, high, low, neutral, reverse transaxle

  • Four wheel drive

    Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Traction assist

    Positive locking, switch actuated rear differential lock

  • Descent control

    Yes
Suspension

  • Front

    Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel

  • Rear

    Fully independent dual A-arm with adjustable coils and sway bar; 228.6 mm (9 in.) of travel
Brakes

  • Type

    Front/rear hydraulic disc with twin piston front calipers

  • Park brake

    Optional factory installed secondary, hand operated
Tires / Wheels

  • Front

    27x9-R14 Maxxis® Bighorn® radials on steel or alloy rims
    27x9-R14 Predator hard-surface radials on steel or alloy rims

  • Rear

    27x11-R14 Maxxis Bighorn radials on steel or alloy rims
    27x11-R14 Predator hard-surface radials on steel or alloy rims
Dimensions / Capacities

  • Wheelbase

    2895.6 mm
    114 in.

  • Dry weight

    953 kg
    2101 lb

  • Length

    3921 mm
    154 in.

  • Width

    1574 mm
    62 in.

  • Height

    1903 mm
    75 in.

  • Tread centers

    1305 mm
    51.4 in.

  • Ground clearance

    280 mm
    11 in.

  • Fuel capacity

    27.6 L
    7.3 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    592 kg
    1305 lb

  • Towing capacity

    680 kg
    1500 lb

  • Hitch

    Standard receiver: 5.1 cm
    2 in.
Features

  • Color

    Green and yellow, camouflage, olive and black

  • Power steering

    Yes

  • Battery / Alternator / Power port

    480 CCA
    85 amp @ 6000 rpm, regulated, 1020 watts

  • Instrumentation

    Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)

  • Storage

    Two cup holders, under hood, glovebox, under rear seat

  • Seating

    Front and rear bench
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV560E S4

Crossover Utility Vehicle

  • Multi-passenger capability for four people
  • Easier shifting, with integrated park position
  • New electronic switch for instant 4WD engagement
  • New dash display with speed indicator and more
XUV560E S4

Features:

  • Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities
  • Delivers quick acceleration and provides a top speed of 45 km/h (28 mph)
  • Designed for all-day comfort with many vehicle conveniences
  • Large, extra-durable, one-piece cargo box ensures hard-driving performance and longevity
  • Four-wheel independent suspension provides unparalleled ride over challenging terrain and excellent handling through corners
  • Convertible cargo rack design offers additional cargo volume

Specifications:

Key Specs

  • Engine power

    11.9* kW
    16 hp

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Towing capacity

    1500 lb
    680 kg

  • Front suspension

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear suspension

    Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Fuel capacity

    28 L
    7.4 U.S. gal.
Engine

  • Type

    4-cycle gas, V-twin, Dynamically tuned Carb, Overhead Valves (OHV)

  • Displacement

    570 cc

  • Power

    11.9* kW
    16 hp

  • Cooling system

    Air cooled
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus
    locking rear differential

  • Traction assist

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Descent control

    Not available
Suspension

  • Front

    Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar

  • Rear

    Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel
Brakes

  • Type

    196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in.
    (34.93mm) diameter twin-piston calipers

  • Park brake

    Automotive-style foot-actuated mechanical park brake system
Tires / Wheels

  • Front

    25x8-12 Terrahawk AT (All Terrain) 4-ply rating yellow steel wheels or 26x8-14 Maxxis® Bighorn® 2.0 6-ply rating yellow steel wheels

  • Rear

    25x10-12 Terrahawk AT (All Terrain) 4-ply rating yellow steel wheels or 26x10-14 Maxxis Bighorn 2.0 6-ply rating yellow steel wheels
Dimensions / Capacities

  • Wheelbase

    2743 mm
    108 in.

  • Weight

    Wet weight (includes fuel/fluids): 746 kg
    Wet weight (includes fuel/fluids): 1646 lb

  • Length

    3658 mm
    144 in.

  • Width

    1435 mm
    56.5 in.

  • Height

    1880 mm
    74 in.

  • Tread centers

    Front: 1220 mm
    Front: 48 in.
    Rear: 1168 mm
    Rear: 46 in.

  • Ground clearance

    236 mm minimum
    9.3 in. minimum

  • Fuel capacity

    28 L
    7.4 U.S. gal.

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Payload capacity

    544 kg
    1200 lb

  • Towing capacity

    1500 lb
    680 kg

  • Hitch

    Standard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with recovery loops
Features

  • Color

    Green/Yellow

  • Power steering

    Not available

  • Battery / Alternator / Power port

    340 CCA
    16 amp @ 4100 rpm, regulated
    12 VDC standard outlet

  • Instrumentation

    Digital display with hour meter with maintenance and driver seatbelt reminder; optional speedometer and engine oil temperature sensor

  • Storage

    2 cupholders, sealed underhood storage, glovebox

  • Seating

    Bench seat
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

XUV590M S4

Crossover Utility Vehicle

  • Multi-passenger capability for four people
  • Our fastest Mid-Size XUV with power steering
  • Easier shifting, with integrated park position
  • New electronic switch for instant 4WD engagement
XUV590M S4

Features:

  • Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities
  • Delivers quick acceleration and provides a top speed of more than 77 km/h (48 mph)
  • Designed for all-day comfort with many vehicle conveniences
  • Large, extra-durable, one-piece cargo box ensures hard-driving performance and longevity
  • Four-wheel independent suspension provides unparalleled ride over challenging terrain and excellent handling through corners
  • Power steering for excellent handling characteristics and low steering effort
  • Convertible cargo rack design offers additional cargo volume

Specifications:

Key Specs

  • Engine power

    23.8* kW
    32 hp

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Towing capacity

    1500 lb
    680 kg

  • Front suspension

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar

  • Rear suspension

    Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential

  • Fuel capacity

    28 L
    7.4 U.S. gal.
Engine

  • Type

    4-cycle gas, Inline-twin, Electronic Fuel Injection (EFI), Overhead Valves (OHV)

  • Displacement

    586 cc

  • Power

    23.8* kW
    32 hp

  • Cooling system

    Liquid cooled
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT) with clutch enclosure

  • Final drive

    High, Low, Neutral, Reverse Transaxle

  • Four wheel drive

    Dash lever actuated four-wheel drive system with limited slip front differential, plus
    locking rear differential

  • Traction assist

    Positive locking, mechanically actuated (hand lever operated) rear differential lock

  • Descent control

    Not available
Suspension

  • Front

    Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel,
    Anti-roll bar

  • Rear

    Fully independent with lower A-arm and upper camber link with adjustable coil over
    shocks, 8 in. (203 mm) travel
Brakes

  • Type

    196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in.
    (34.93mm) diameter twin-piston calipers

  • Park brake

    Automotive-style foot-actuated mechanical park brake system
Tires / Wheels

  • Front

    25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT
    (All Terrain) 4-ply rating steel wheels; optional 26x8-14 Maxxis Bighorn 2.0 6-ply rating
    on various color aluminum alloys

  • Rear

    25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk
    AT (All Terrain) 4-ply rating steel wheels; optional 26x10-14 Maxxis Bighorn 2.0 6-ply
    rating on various color aluminum alloys
Dimensions / Capacities

  • Wheelbase

    2743 mm
    108 in.

  • Operating weight (includes fuel/fluids)

    Wet weight (includes fuel/fluids): 752 kg
    Wet weight (includes fuel/fluids): 1659 lb

  • Length

    3658 mm
    144 in.

  • Width

    1435 mm
    56.5 in.

  • Height

    1880 mm
    74 in.

  • Tread centers

    Front: 1220 mm
    48 in.
    Rear: 1168 mm
    46 in.

  • Ground clearance

    236 mm minimum
    9.3 in. minimum

  • Fuel capacity

    28 L
    7.4 U.S. gal.

  • Cargo box dimensions

    82L x 120.9W x 29.7D (0.25 m3) cm
    32.3L x 47.6W x 11.7D (8.9 ft3) in.

  • Cargo box capacity (weight)

    227 kg
    500 lb

  • Payload capacity

    544 kg
    1200 lb

  • Towing capacity

    1500 lb
    680 kg

  • Hitch

    Standard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with
    recovery loops
Features

  • Color

    Green/Yellow; Olive/Black; Realtree™ Hardwoods HD Camo

  • Power steering

    Standard

  • Battery / Alternator / Power port

    340 CCA
    65 amp @ 3400 rpm regulated
    12 VDC standard outlet

  • Instrumentation

    Digital instrument cluster displays critical vehicle information such as speed, engine rpm, fuel level, coolant temperature, trip, odometer, time

  • Storage

    2 cupholders, sealed underhood storage, glovebox, center console, optional under seat

  • Seating

    Bench seat front/rear
Additional information

  • Country of Manufacture

    U.S.
Back to Top

Available models: HPX615EHPX815E

DetailsFeaturesSpecifications

Details:

HPX615E

Work Series Utility Vehicle

  • 4-wheel drive, standard
  • 16.4 cu ft (.46 cu m) cargo box with a 1,000 lb (450 kg) capacity
  • Pickup-style tailgate
  • Real dumping cargo box
HPX615E

Features:

  • Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities
  • Features operator conveniences such as high-back bucket or bench seats, cup holders, glove box, and 12-V outlet
  • Heavy-duty suspension delivers excellent heavy hauling capabilities
  • Factory-installed occupant protective structure (OPS) or deluxe cab frame
  • Durable, versatile cargo box for hard-working performance

Specifications:

Key Specs

  • Engine power

    15.7* kW
    20 hp

  • Maximum traveling speed

    0-25 mph (0-40 km/h) forward
    0-12 mph (0-19 km/h) reverse

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    590 kg
    1300 lb

  • Front suspension

    Independent with McPherson Strut

  • Rear suspension

    Coil over shock

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    Yes

  • Fuel capacity

    20.1 L
    5.3 U.S. gal.
Engine

  • Type

    2cyl, 4-cycle gas

  • Displacement

    617 cc

  • Power

    15.7* kW
    20 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT)

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    Yes

  • CTraction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    No

  • Maximum traveling speed

    0-25 mph (0-40 km/h) forward
    0-12 mph (0-19 km/h) reverse
Suspension

  • Front

    Independent with McPherson Strut

  • Rear

    Coil over shock
Brakes

  • Type

    Hydraulic Disc brakes

  • Park brake

    Rear mechanical disk, hand operated
Tires / Wheels

  • Front

    24 x 9.5-10

  • Rear

    24 x 10.5-10
Dimensions / Capacities

  • Wheelbase

    1910 mm
    75.2 in.

  • Dry weight

    681 kg
    1500 lb

  • Length

    2743 mm
    108 in.

  • Width

    1506 mm
    59.3 in.

  • Height

    1867 mm
    73.5 in.

  • Tread centers

    Front: 1257.3 mm
    Front: 49.5 in.
    Rear: 1219.3 mm
    Rear: 48 in.

  • Ground clearance

    152.4 mm
    6 in.

  • Fuel capacity

    20.1 L
    5.3 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    635 kg
    1400 lb

  • Towing capacity

    590 kg
    1300 lb

  • Hitch

    Standard 2-in receiver
Features

  • Color

    Green/Yellow

  • Power steering

    No

  • Battery / Alternator / Power port

    480 CCA 40 amp @ 3200 rpm

  • Storage

    Cup Holders, Glovebox

  • Seating

    Bucket Seats (Bench Available)

  • Headlights

    Halogen
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

HPX815E

Work Series Utility Vehicle

  • 4-wheel drive, standard
  • 16.4 cu ft (.56 cu m) cargo box with a 1,000 lb (450 kg) capacity
  • Pickup-style tailgate
  • Powerful diesel engine system
HPX815E

Features:

  • Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities
  • Features operator conveniences such as high-back bucket or bench seats, cup holders, glove box, and 12-V outlet
  • Heavy-duty suspension delivers excellent heavy hauling capabilities
  • Factory-installed occupant protective structure (OPS) or deluxe cab frame
  • Durable, versatile cargo box for hard-working performance

Specifications:

Key Specs

  • Engine power

    13.57* kW
    18.2 hp

  • Maximum traveling speed

    0-25 mph (0-40 km/h) forward
    0-12 mph (0-19 km/h) reverse

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Towing capacity

    590 kg
    1300 lb

  • Front suspension

    Independent with McPherson Strut

  • Rear suspension

    Coil over shock

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    Yes

  • Fuel capacity

    20.1 L
    5.3 U.S. gal.
Engine

  • Type

    3 cyl, 4-cycle diesel

  • Displacement

    854 cc

  • Power

    13.57* kW
    18.2 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously Variable Transmission (CVT)

  • Final drive

    Two speed, oil bath

  • Four wheel drive

    Yes

  • CTraction assist

    Positive locking, mechanically actuated (hand-operated)

  • Descent control

    No

  • Maximum traveling speed

    0-25 mph (0-40 km/h) forward
    0-12 mph (0-19 km/h) reverse
Suspension

  • Front

    Independent with McPherson Strut

  • Rear

    Coil over shock
Brakes

  • Type

    Hydraulic Disc brakes

  • Park brake

    Rear mechanical disk, hand operated
Tires / Wheels

  • Front

    24 x 9.5-10

  • Rear

    24 x 12.0-10
Dimensions / Capacities

  • Wheelbase

    1910 mm
    75.2 in.

  • Dry weight

    681 kg
    1500 lb

  • Length

    2743 mm
    108 in.

  • Width

    1506 mm
    59.3 in.

  • Height

    1867 mm
    73.5 in.

  • Tread centers

    Front: 1257.3 mm
    Front: 49.5 in.
    Rear: 1219.3 mm
    Rear: 48 in.

  • Ground clearance

    152.4 mm
    6 in.

  • Fuel capacity

    20.1 L
    5.3 U.S. gal.

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity (weight)

    454 kg
    1000 lb

  • Payload capacity

    635 kg
    1400 lb

  • Towing capacity

    590 kg
    1300 lb

  • Hitch

    Standard 2-in receiver
Features

  • Color

    Green/Yellow

  • Power steering

    No

  • Battery / Alternator / Power port

    480 CCA 40 amp @ 3200 rpm

  • Storage

    Cup Holders, Glovebox

  • Seating

    Bucket Seats (Bench Available)

  • Headlights

    Halogen
Additional information

  • Country of Manufacture

    U.S.
Back to Top
T Series Work Utility Vehicles

T Series Work Utility Vehicles

Available models: TS 4x2TX 4x2TH 6x4 GasTE 4x2 ElectricTH 6x4 Diesel

DetailsFeaturesSpecifications

Details:

TS 4x2

Traditional Utility Vehicle

  • Best in class work capability
  • Enhanced stability for better performance in difficult terrain
  • Best in class durability
  • Freight not included in list price
TS 4x2

Features:

  • Precision-engineered drive system
  • Features operating conveniences such as cushioned bucket seating, cup holders, 12-V outlet, glove box, and fuel gauge
  • Large, durable cargo box for heavy hauling

Specifications:

Key Specs

  • Engine power

    10.1* kW
    13.5 hp

  • Maximum traveling speed

    0-20 (0-32 km/h) forward, 0-19.4 (0-31.2 km/h) reverse

  • Cargo box dimensions

    39.5 (L) x 49 (W) x 9 (H) in.

  • Cargo box capacity

    227 kg
    500 lb

  • Towing capacity

    408 kg
    900 lb

  • Front suspension

    Independent spring over shock, single A-arm

  • Rear suspension

    Two high-floatation, low pressure tires (solid axles)

  • Final drive

    Fully enclosed; oil bath

  • Four wheel drive

    No

  • Fuel capacity

    5 g
Engine

  • Type

    4-cycle gas

  • Displacement

    400 cc
    24.4 cu in.

  • Power

    10.1* kW
    13.5 hp

  • Cooling system

    Air
Drivetrain

  • Transmission

    Continuously variable transmission (CVT)

  • Final drive

    Fully enclosed; oil bath

  • Four wheel drive

    No

  • Traction assist

    Mechanically Activated Differential Lock

  • Descent control

    No

  • Maximum traveling speed

    0-20 (0-32 km/h) forward, 0-19.4 (0-31.2 km/h) reverse
Suspension

  • Front

    Independent spring over shock, single A-arm

  • Rear

    Two high-floatation, low pressure tires (solid axles)
Brakes

  • Type

    Wet disk in transaxle

  • Park brake

    Wet disk, hand operated
Tires

  • Front

    Two 22.5x10.00-8, 2 PR hi-flotation

  • Rear

    Two 25x12.00-9, 2 PR hi-flotation

  • Dry weight

    915 lb
Dimensions / Capacities

  • Wheelbase

    1770 mm
    69.7 in.

  • Front tread centers

    1270 mm
    50 in.

  • Rear tread centers

    1220 mm
    48 in.

  • Height

    1108 mm
    43.6 in.

  • Width

    1525 mm
    60 in.

  • Length

    104 in.

  • Ground clearance

    6.0 (under transaxle) in.
    9.8 (foot platform) in.

  • Fuel capacity

    5 g

  • Cargo box dimensions

    39.5 (L) x 49 (W) x 9 (H) in.

  • Cargo box capacity

    227 kg
    500 lb

  • Payload capacity

    408 kg
    900 lb

  • Towing capacity

    408 kg
    900 lb

  • Hitch

    1.25in hitch is available as an option (BM23839)
Features

  • Color

    Green/Yellow

  • Power steering

    No

  • Battery

    340 @ -18 C (0 F) CCA

  • Alternator

    16.6 @ 3700 rpm (regulated) amp

  • Instrumentation

    Fuel Gauge, Hour Meter listed in the Sales Manual

  • Storage

    Cup Holder, Glovebox

  • Seating

    Bucket Seats
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

TX 4x2

Traditional Utility Vehicle

  • Best in class work capability
  • Wide stance for enhanced stability
  • Best in class cargo box
TX 4x2

Features:

  • Powered by 11.6-kw (15.5-hp)*, 675-cc (41.2-cu in.), V-twin, four-cycle gas engine
  • Precision-engineered drive system
  • All-wheel hydraulic disc braking with dual master cylinder
  • Automotive-type rack and pinion steering with fully independent, single A-arm suspension
  • Stable design
  • Tires
  • Features operating conveniences such as high-back seats, cup holders, 12-V outlet, glove box, and fuel gauge
  • Equipped with rear receiver hitch
  • Durable deluxe cargo box

Specifications:

Key Specs

  • Engine power

    11.6* kW
    15.5 hp

  • Maximum traveling speed

    0-32 forward km/h
    0-20 forward mph
    0-31.2 reverse km/h
    0-19.4 reverse mph

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm

  • Cargo box capacity

    272 kg
    600 lb

  • Towing capacity

    454 kg
    1000 lb

  • Front suspension

    Independent spring over shock, single A-arm

  • Rear suspension

    Semi-independent coil over shock (COS) system

  • Final drive

    Fully enclosed; oil bath

  • Four wheel drive

    No

  • Fuel capacity

    5 g
Engine

  • Type

    4-cycle gas

  • Displacement

    675 cc cc
    41.2 cu in.

  • Power

    11.6* kW
    15.5 hp

  • Cooling system

    Air
Drivetrain

  • Transmission

    Continuously variable transmission (CVT)

  • Final drive

    Fully enclosed; oil bath

  • Four wheel drive

    No

  • Traction assist

    Mechanically Activated Differential Lock

  • Descent control

    No

  • Maximum traveling speed

    0-32 forward km/h
    0-20 forward mph
    0-31.2 reverse km/h
    0-19.4 reverse mph
Suspension

  • Front

    Independent spring over shock, single A-arm

  • Rear

    Semi-independent coil over shock (COS) system
Brakes

  • Type

    All-wheel hydraulic disc

  • Park brake

    Rear mechanical disc, hand operated
Tires

  • Front

    Two 22x9.50-10, 4 PR,

  • Dry weight

    1120 lb
Dimensions / Capacities

  • Wheelbase

    1955.8 mm
    77 in.

  • Front tread centers

    1270 mm
    50 in.

  • Rear tread centers

    1219.3 mm
    48 in.

  • Height

    1108 mm
    43.6 in.

  • Width

    1525 mm
    60 in.

  • Length

    2.75 mm
    108.1 in.

  • Ground clearance

    14.4 cm
    5.7 in.

  • Fuel capacity

    5 g

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity

    272 kg
    600 lb

  • Payload capacity

    454 kg
    1000 lb

  • Towing capacity

    454 kg
    1000 lb

  • Hitch

    Standard 2-in. receiver
Features

  • Color

    Green/Yellow

  • Power steering

    No

  • Battery

    340 Cold Cranking Amps @ -18C (0F)

  • Alternator

    16.6 @ 3700 rpm (regulated) amp

  • Instrumentation

    Fuel Gauge, Hour Meter listed in the Sales Manual

  • Storage

    Cup Holders, Glove Box

  • Seating

    Bucket Seats
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

TH 6x4 Gas

Traditional Utility Vehicle

  • Top of the line heavy duty work vehicle
  • Best in class work capability
  • Wide stance for enhanced stability
  • In-store pickup or delivery available
TH 6x4 Gas

Features:

  • Features operating conveniences such as high-back seats, cup holders, 12-V outlet, glove box, and fuel gauge
  • Precision-engineered drive system optimizes hauling, towing, and hill-climbing capabilities
  • Durable deluxe cargo box is spacious and allows for easy loading and unloading
  • Powered by 15.5-hp* (11.6-kW*), 675-cc, air-cooled, V-twin, four-cycle gas engine

Specifications:

Key Specs

  • Engine power

    11.6* kW
    15.5 hp

  • Maximum traveling speed

    0-20 (0-32 km/h) forward, 0-19.4 (0-31.4 km/h) reverse

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity

    454 kg
    1000 lb

  • Towing capacity

    635 kg
    1400 lb

  • Front suspension

    Independent spring over shock, single A-arm

  • Rear suspension

    Two high-floatation, low pressure tires (solid axles)

  • Final drive

    Fully enclosed, oil bath

  • Fuel capacity

    5.0 G listed in the Sales Manual
Engine

  • Type

    4-cycle gas

  • Displacement

    675 cc
    41.2 cu in.

  • Power

    11.6* kW
    15.5* hp

  • Cooling system

    Air
Drivetrain

  • Transmission

    Continuously variable transmission (CVT)

  • Final drive

    Fully enclosed; oil bath

  • Traction assist

    Mechanically Activated Differential Lock

  • Descent control

    No

  • Maximum traveling speed

    0-20 (0-32 km/h) forward, 0-19.4 (0-31.4 km/h) reverse
Suspension

  • Front

    Independent spring over shock, single A-arm

  • Rear

    Two high-floatation, low pressure tires (solid axles)
Brakes

  • Type

    Wet disk in transaxle

  • Park brake

    Wet disk, hand operated
Tires

  • Front

    Two 22.5x10.00-8, 2 PR hi-flotation

  • Rear

    Four 25x12.00-9, 2 PR hi-flotation

  • Dry weight

    1087 lb
Dimensions / Capacities

  • Wheelbase

    79 (2006 mm) front to rear, 26.8 (680 mm) mid to rear

  • Front tread centers

    1270 mm
    50 in.

  • Rear tread centers

    1220 mm
    48 in.

  • Height

    1108 mm
    43.6 in.

  • Width

    1525 mm
    60 in.

  • Length

    2642 mm
    104 in.

  • Ground clearance

    6.0 in (transaxle) 9.8 in (foot platform)

  • Fuel capacity

    5.0 G listed in the Sales Manual

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity

    454 kg
    1000 lb

  • Payload capacity

    635 kg
    1400 lb

  • Towing capacity

    635 kg
    1400 lb

  • Hitch

    1.25in (optional) listed in the Sales Manual
Features

  • Color

    Green/Yellow

  • Power steering

    No

  • Battery

    340 Cold Cranking Amps @ -18C (0F)

  • Alternator

    16.6 Amp @ 3700 rpm (regulated)

  • Instrumentation

    Fuel Gauge, Hour Meter listed in the Sales Manual

  • Storage

    Cup holders, Glovebox

  • Seating

    Bucket Seats
Additional information

  • Country of Manufacture

    U.S.
Back to Top
DetailsFeaturesSpecifications

Details:

TE 4x2 Electric

Utility Vehicle

  • Quiet electric operation
  • Wide stance for enhanced stability
  • Best in class cargo box
  • Zero emissions/zero fuel consumption
TE 4x2 Electric

Features:

  • On-board battery charger
  • Drive system provides plenty of power to accelerate faster and climb hills better
  • Features operating conveniences such as high-back cushioned seats, glove box, and automotive-style controls
  • Durable deluxe cargo box is spacious and allows for easy loading and unloading
  • Heavy-duty frame

Specifications:

Key Specs

  • Electrical system

    48 volt w/8 Trojan T-145 batteries

  • Brake type

    Dual rear wheel mechanical drum

  • Speed

    0-13 (Can be adjusted with handheld programmer) mph
    24.1 km/h

  • Front suspension

    Independent, spring over shock, single A-arm

  • Payload capacity

    900 lb
    1400 lb

  • Towing capacity

    500 lb
    227 kg

  • Cargo box volume

    16.4 cu ft
    0.46 m3

  • Charger type

    High frequency switched-mode
Drive system

  • Motor

    Wound direct drive, 48VDC separately excited

  • Controller

    Separately excited, 400 amp max., Anti-roll away braking and alarm. Antistall motor protection. Regenerative braking. Diagnostic indicator. Full torque, reduced speed reverse.

  • Transaxle

    16.99:1 ratio with helical gearing

  • Electrical system

    48 volt w/8 Trojan T-145 batteries

  • Speed

    0-13 (Can be adjusted with handheld programmer) mph
    24.1 km/h

  • Gear selection

    Forward, Neutral, Reverse

  • Torque converter

    N/A

  • Battery

    Trojan T-145

  • Extended run time battery

    Not Available
Brakes

  • Type

    Dual rear wheel mechanical drum

  • Park brake

    Hand operated, multi-latch
Tires

  • Front

    2 - 22x9.5-10, 4-ply high-flotation turf

  • Rear

    2 - 24x12-10, 4-ply high-flotation turf

  • Dry weight

    1302 lb
Suspension and Steering

  • Front

    Total Travel
    5 in.
    127 mm
    Independent, spring over shock, single A-arm

  • Rear

    Total travel
    Not Available
    2 hi-flotation, low pressure tires

  • Steering

    Rack and pinion
Dimensions

  • Height

    44.5 in.
    1130 mm

  • Width

    60 in.
    1524 mm

  • Length

    Without bumper
    104.9 in.
    2664 mm
    With bumper
    107.4 in.
    2728 mm

  • Ground clearance

    Under transaxle
    196 mm
    7.7 in.
    Under foot platform
    7.3 in.
    185 mm

  • Front tread centers

    50 in.
    1270 mm

  • Rear tread centers

    48 in.
    1219 mm

  • Wheelbase

    76.4 in.
    194 cm

  • Vehicle weight

    1389 lb
    630 kg

  • Turning clearance circle

    22 ft
    6.7 m

  • Payload capacity

    900 lb
    408 kg

  • Towing capacity

    500 lb
    227 kg
Seats

  • Type

    Professional high back bucket, tilt forward

  • Seating capacity

    2

  • Seat adjustment

    Optional
Cargo box

  • Length

    45 in.
    1143 mm

  • Width

    52 inside in.
    1321 inside mm

  • Depth

    12 in.
    304.8 mm

  • Capacity

    500 lb
    227 kg

  • Volume

    16.4 cu ft
    0.46 m3

  • Height above ground

    30 in.
    762 mm

  • Material

    Polypropylene side panels and tailgate; steel floor and load guard

  • Tailgate

    Hinged at bottom, removable; side panels are removable

  • Dump

    Manual, power lift (optional)
Charger

  • Type

    High frequency switched-mode

  • Input voltage

    120 VAC 60 Hz.

  • Input amperage (Nominal)

    12 A (15 A breaker max.)

  • Output voltage

    48 VDC nominal

  • Output amperage

    21 ADC

  • AC input connector

    IEC320/C14

  • AC power cord

    94 in.
    2.4 m
Back to Top
DetailsFeaturesSpecifications

Details:

TH 6x4 Diesel

Traditional Utility Vehicle

  • Top of the line heavy duty work vehicle
  • Diesel toughness and durability
  • Wide stance for enhanced stability
  • In-store pickup or delivery available
TH 6x4 Diesel

Features:

  • Powered by 13.6-kW (18.2-hp)*, 993-cc (60.6-cu in.), 3-cylinder, liquid-cooled, four-cycle diesel engine
  • Precision-engineered drive system optimizes hauling, towing, and hill-climbing capabilities
  • Features operating conveniences such as high-back seats, cup holders, 12-V outlet, glove box, and fuel gauge
  • Durable deluxe cargo box is spacious and allows for easy loading and unloading

Specifications:

Key Specs

  • Engine power

    13.57* kW
    18.2 hp

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm

  • Cargo box capacity

    508 kg
    1200 lb

  • Towing capacity

    635 kg
    1400 lb

  • Front suspension

    Independent spring over shock, single A-arm

  • Rear suspension

    Two high-floatation, low pressure tires (solid axles)

  • Final drive

    Fully enclosed, oil bath

  • Fuel capacity

    5 g
Engine

  • Type

    3 cyl, 4 cycle diesel

  • Displacement

    854 cc

  • Power

    13.57* kW
    18.2 hp

  • Cooling system

    Liquid
Drivetrain

  • Transmission

    Continuously variable transmission (CVT)

  • Final drive

    Fully enclosed, oil bath

  • Four wheel drive

    No

  • Traction assist

    Mechanically Actuated Differential Lock

  • Descent control

    No
Suspension

  • Front

    Independent spring over shock, single A-arm

  • Rear

    Two high-floatation, low pressure tires (solid axles)
Brakes

  • Type

    Wet disk in transaxle

  • Park brake

    Wet disk, hand operated
Tires

  • Front

    Two 22.5x10.00-8, 2 PR hi-flotation

  • Rear

    Four 25x12.00-9, 2 PR hi-flotation

  • Dry weight

    1389 lb
Dimensions / Capacities

  • Wheelbase

    79 in. (2006 mm) front to rear
    26.8 in. (680 mm) mid to rear

  • Front tread centers

    1270 mm
    50 in.

  • Rear tread centers

    1220 mm
    48 in.

  • Height

    1108 mm
    43.6 in.

  • Width

    1525 mm
    60 in.

  • Length

    2769 mm
    109 in.

  • Ground clearance

    162.56 mm
    6.4 in.

  • Fuel capacity

    5 g

  • Cargo box dimensions

    1143 x 304.8 x 1320 mm
    45 x 12 x 52 in.

  • Cargo box capacity

    508 kg
    1200 lb

  • Payload capacity

    726 kg
    1600 lb

  • Towing capacity

    635 kg
    1400 lb
Features

  • Color

    Green/Yellow

  • Power steering

    No

  • Battery

    340 @ -18C (0F) CCA

  • Alternator

    40 amp

  • Storage

    Cup Holders, Glovebox

  • Seating

    Bucket Seats
Additional information

  • Country of Manufacture

    U.S.
Back to Top
Learn How To Get Any Job Done Around Your Property Visit The John Deere Tips Notebook


Visit Little’s To Explore Your Gator Utility Vehicle Options

Stop by one of our five locations to see your John Deere Gator Utility Vehicle options up close and take one for a test drive. Your Little’s sales guide can help you explore your options and provide more information on our financing and leasing options.

Fulfill Your Lawn Care Needs, Big Or Small

Request My Quote Now
Need Help? Talk with an expert
Grass
