Mow All Day With Best-In-Class Mowers
If you need best-in-class operator positioning, maneuverability and stability to power your commercial mowing business, you need John Deere QuikTrak stand-on mowers. Our expert sales staff and highly trained maintenance technicians will help guide you to the right mower for your operations, and then support you with uptime-boosting service and repair.
At Little’s, we carry a wide variety of these stand-on mowers and support you with:
- John Deere’s NeverStop™ Loaner Guarantee
- Our Same Day and Next Day Parts Guarantees
- John Deere Financial Financing and Leasing Options
- GreenFleet Loyalty Rewards
Explore Our Wide Selection Of John Deere Quiktrak Stand On Mowers
Click on products below to learn more.
E Series
M Series
R Series
E Series
Available models: 652EQ810EQ820E
Details:

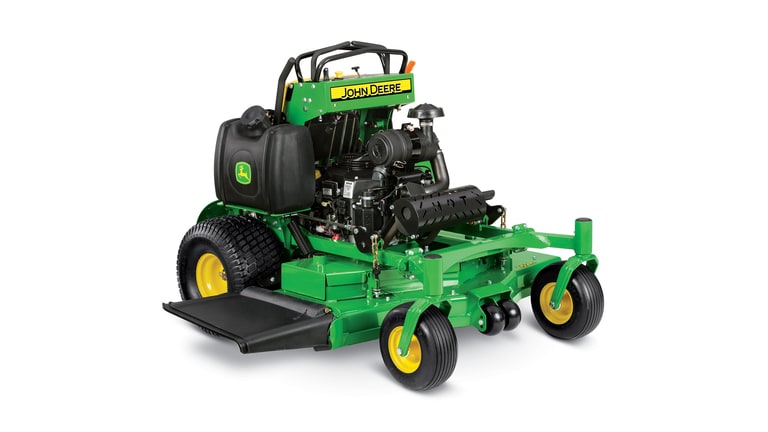

652E
QuikTrak™ Stand-On Mower
- Compact design for easy hauling
- Hydrostatic drive system
- Commercial-quality engine
- Easy to maintain
Features:
- Commercial-quality engine is reliable and provides excellent performance and life
- 52-in. (132-cm) fabricated, fixed mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive two-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
- Field-installed propane conversion kits for commercial walk-behind mowers, QuikTrak™ mowers, and commercial ZTrak™ mowers
Specifications:
-
Engine Manufacturer/model
FX691V
-
Engine Power
Gross at 3,600 rpm: 22 hp
16.4 kW -
Fuel tank capacity
5.6 U.S. gal.
21.2 L -
Mower deck Size
52 in.
132 cm -
Blade tip speed
18,900 fpm
5,761 m/min -
Transmission
Hydrostatic
-
Speed range
0-9.5 mph
0-15.3 km/h -
Drive wheels
20x10-8 Turf Master
-
Caster wheels
11x4-5
-
Warranty
24 months
-
Manufacturer/Model
FX691V
-
Power
Gorss at 3,600 rpm: 22 hp
16.4 kW -
Displacement
44.3 cu in.
726 cc -
Cylinders
Two, V-twin
-
Crankcase capacity
With filter, 2.2 qt
2.1 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air
-
Air cleaner
Heavy-duty canister type with safety element
-
Fuel type
Gasoline
-
Fuel tank capacity
5.6 U.S. gal.
21.2 L -
Fuel tank switch/shut-off valve
Yes
-
Charge system
At 3,600 rpm, 20 amp
-
Battery voltage
12 V
-
Hour meter
Digital
-
Operator presence starting system
Yes
-
Transmission
Hydrostatic
-
Hydraulic pumps
Hydro-Gear with fans, 0.73 cu in.
12 cc -
Wheel motors
Hydro-Gear, 15 cu in.
246 cc -
Travel speed
Speed range
0-9.5 mph
0-15.3 km/h
Forward
0-9.5 mph
0-15.3 km/h
Reverse
0-5.5 mph
0-8.9 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
With filter-wet, 2.9 qt
2.7 L
Dry, 5 qt
4.7 L -
Filter
Spin-on replaceable
-
Warranty
24 months
-
Drive wheels
20x10-8 Turf Master
-
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Tire engagement
-
Park brake actuation
Hand lever
-
Type
Electro-Magnetic with brake, 200 lb-ft
271 Nm -
Drive
Dual B-section V-belt with Kevlar® cord
-
Size
52 in.
132 cm -
Deck construction
Fabricated steel, fixed mounting
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5
3.8-12.7 -
Cutting width
52 in.
132 cm
-
Blade tip speed
18,900 fpm
5,761 m/min -
Number
Three
-
Caster wheel type
No-flat semi-pneumatic with sealed bearings
-
Caster wheels
11x4-5
-
Front anti-scalp rollers
Center, left
-
Length
66 in.
167.6 cm -
Width
Deflector down, 66 in.
167.6 cm -
Height
47 in.
119 cm -
Weight
927 lb
420.5 kg
Details:

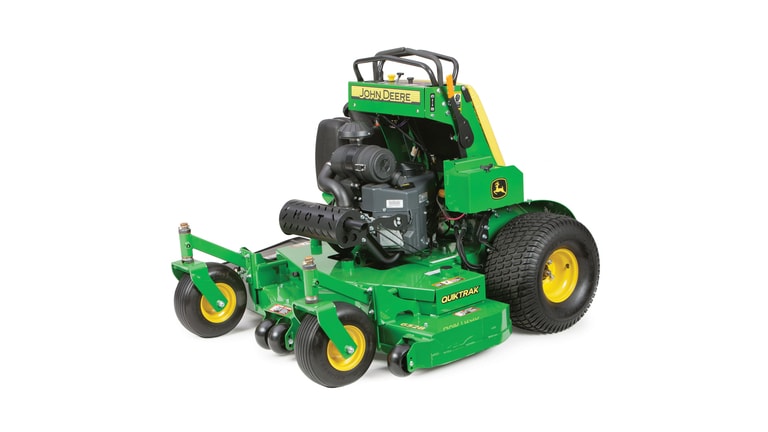

Q810E
QuikTrak™ Stand-On Mower
- 19-hp (14.2-kW)
- 36 inch deck, 7-gauge fabricated deck
- Mow up to 8 mph
- Warranty: 36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation
Features:
- Commercial-quality engine is reliable and provides excellent performance and life
- Fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive three-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
Specifications:
Details:

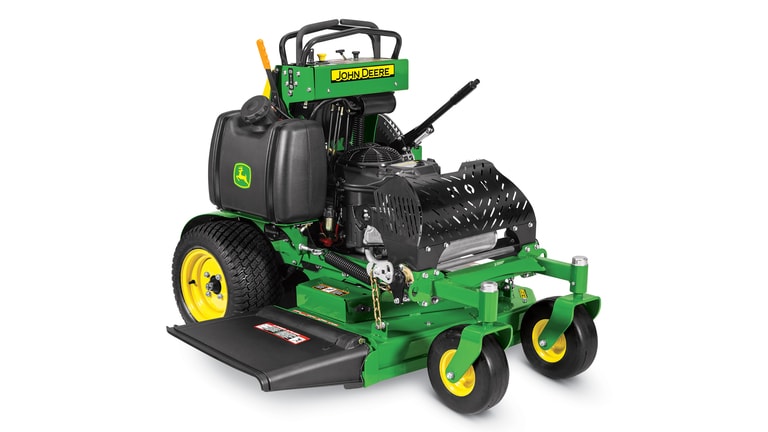

Q820E
QuikTrak™ Stand-On Mower
- 23.5-hp (17.5-kW)
- 48 inch deck, 7-gauge fabricated deck
- Mow up to 8 mph
- Warranty: 36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation
Features:
- Commercial-quality engine is reliable and provides excellent performance and life
- Fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive three-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
Specifications:
M Series
Available models: 636M648M652MQ820MQ850M
Details:
636M
QuikTrak™ Stand-On Mower
- Compact design for easy hauling
- Hydrostatic drive system
- Commercial-quality engine
- Easy to maintain
Features:
- Commercial-quality engine is reliable and provides excellent performance and life
- 36-in. (91-cm) fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive two-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
Specifications:
-
Engine Manufacturer/model
FS600V
-
Engine power
Gross at 3,600 rpm: 18.5 hp
13.8 kW -
Fuel tank capacity
5.5 U.S. gal.
20.8 L -
Mower deck size
36 in.
91.4 cm -
Blade tip speed
18,900 fpm
5,761 m/min -
Transmission
Hydrostatic
-
Speed range
0-8.2 mph
0-13.2 km/h -
Drive wheels
18x8.5-10 Turf Master
-
Caster wheels
11x4-5
-
Warranty
24 months
-
Manufacturer/Model
FS600V
-
Power
Gross at 3,600 rpm, 18.5 hp
13.8 kW -
Displacement
36.8 cu in.
603 cc -
Cylinders
Two, V-twin
-
Crankcase capacity
With filter, 2.2 qt
2.1 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air
-
Air cleaner
Dry type, dual stage
-
Fuel type
Gasoline
-
Fuel tank capacity
5.5 U.S. gal.
20.8 L -
Fuel tank switch/shut-off valve
Yes
-
Charge system
At 3,600 rpm, 15 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Digital
-
Operator presence starting system
Yes
-
Transmission
Hydrostatic
-
Hydraulic pumps
Hydro-Gear, 0.61 cu in.
10 cc -
Wheel motors
Hydro-Gear HGM-P, 12 cu in.
196 cc -
Travel speed
Speed range
0-8.2 mph
0-13.2 km/h
Forward
Infinite, 0-8.2 mph
Infinite, 0-13.2 km/h
Reverse
Infinite, 0-3.5 mph
Infinite, 0-5.6 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
With filter, dry, 5 qt
4.7 L -
Hydraulic oil cooler
Yes
-
Filter
Spin-on replaceable
-
Warranty
2 months
-
Drive wheels
18x8.5-10 Turf Master
-
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Tire engagement
-
Park brake actuation
Hand lever
-
Type
Electro-magnetic with brake, 125 lb-ft
169 Nm -
Drive
Dual B-section V-belt with Kevlar® cord
-
Size
36 in.
91.4 cm -
Deck construction
Fabricated steel, floating mount system
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
36 in.
91 cm
-
Length
18 in.
45.7 cm -
Thickness
0.203 in.
0.516 cm -
Blade tip speed
18,900 fpm
5,761 m/min -
Number
Two
-
Caster wheel type
No-flat semi-pneumatic with sealed bearings
-
Caster wheels
11x4-5
-
Length
62 in.
157.5 cm -
Width
Deflector down, 49.5 in.
125.7 cm -
Height
46 in.
117 cm -
Weight
With full fuel and oil, 731 lb
332 kg
Details:
648M
QuikTrak™ Stand-On Mower
- Compact design for easy hauling
- Hydrostatic drive system
- Commercial-quality engine
- Easy to maintain
Features:
- Commercial-quality engine is reliable and provides excellent performance and life
- 48-in. (122-cm) fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive two-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
- Field-installed propane conversion kits for commercial walk-behind mowers, QuikTrak™ mowers, and commercial ZTrak™ mowers
Specifications:
-
Engine Manufacturer/model
FX691V
-
Engine Power
Gross at 3,600 rpm: 22 hp
16.4 kW -
Fuel tank capacity
5.5 U.S. gal.
20.8 L -
Mower deck Size
48 in.
122 cm -
Blade tip speed
18,900 fpm
5,761 m/min -
Transmission
Hydrostatic
-
Speed range
0-8.2 mph
0-13.2 km/h -
Drive wheels
18x10.5-10 Turf Master
-
Caster wheels
11x4.5-6
-
Warranty
24 months
-
Manufacturer/Model
FX691V
-
Power
Gross at 3,600 rpm: 22 hp
16.4 kW -
Displacement
44.3 cu in.
726 cc -
Cylinders
Two, V-twin
-
Crankcase capacity
With filter, 2.2 qt
2.1 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air
-
Air cleaner
Dry type, dual stage
-
Fuel type
Gasoline
-
Fuel tank capacity
5.5 U.S. gal.
20.8 L -
Fuel tank switch/shut-off valve
Yes
-
Charge system
At 3,600 rpm, 15 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Digital
-
Operator presence starting system
Yes
-
Transmission
Hydrostatic
-
Wheel motors
Hydro-Gear HGM-P, 12 cu in.
196 cc -
Travel speed
Speed range
0-8.2 mph
0-13.2 km/h
Forward
Infinite, 0-8.2 mph
Infinite, 0-13.2 km/h
Reverse
Infinite, 0-3.5 mph
Infinite, 0-5.6 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
With filter, dry, 5 qt
4.7 L -
Hydraulic oil cooler
Yes
-
Filter
Spin-on replaceable
-
Drive wheels
18x10.5-10 Turf Master
-
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Tire engagement
-
Park brake actuation
Hand lever
-
Type
Electro-magnetic with brake, 125 lb-ft
169 Nm -
Drive
Dual B-section V-belt with Kevlar® cord
-
Size
48 in.
122 cm -
Deck construction
Fabricated steel, floating mount system
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
48 in.
122 cm
-
Length
16.5 in.
41.9 cm -
Thickness
0.203 in.
0.516 cm -
Blade tip speed
18,900 fpm
5,761 m/min -
Number
Three
-
Caster wheel type
No-flat semi-pneumatic with sealed bearings
-
Caster wheels
11x4.5-6
-
Front anti-scalp rollers
Double-captured center
-
Length
59.75 in.
151.8 cm -
Width
Deflector down, 62 in.
157.4 cm -
Height
46 in.
117 cm -
Weight
With full fuel and oil, 820 lb
372 kg
Details:
652M
QuikTrak™ Stand-On Mower
- Compact design for easy hauling
- Hydrostatic drive system
- Commercial-quality engine
- Easy to maintain
Features:
- Commercial-quality engine is reliable and provides excellent performance and life
- 52-in. (132-cm) fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive two-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
- Field-installed propane conversion kits for commercial walk-behind mowers, QuikTrak™ mowers, and commercial ZTrak™ mowers
Specifications:
-
Engine Manufacturer/model
FX691V
-
Engine Power
Gross at 3,600 rpm: 22 hp
16.4 kW -
Fuel tank capacity
5.5 U.S. gal.
20.8 L -
Mower deck Size
52 in.
132 cm -
Blade tip speed
18,900 fpm
5,761 m/min -
Transmission
Hydrostatic
-
Speed range
0-8.2 mph
0-13.2 km/h -
Drive wheels
18x10.5-10 Turf Master
-
Caster wheels
11x4.5-6
-
Warranty
24 months
-
Manufacturer/Model
FX691V
-
Power
Gross at 3,600 rpm: 22 hp
16.4 kW -
Displacement
44.3 cu in.
726 cc -
Cylinders
Two, V-twin
-
Crankcase capacity
With filter, 2.2 qt
2.1 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air
-
Air cleaner
Dry type, dual stage
-
Fuel type
Gasoline
-
Fuel tank capacity
5.5 U.S. gal.
20.8 L -
Fuel tank switch/shut-off valve
Yes
-
Charge system
At 3,600 rpm, 15 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 amp
-
Hour meter
Digital
-
Operator presence starting system
Yes
-
Transmission
Hydrostatic
-
Hydraulic pumps
Hydro-Gear®, 0.61 cu in.
10 cc -
Wheel motors
Hydro-Gear HGM-P, 12 cu in.
196 cc -
Travel speed
Speed range
0-8.2 mph
0-13.2 km/h
Forward
Infinite: 0-8.2 mph
Infinite, 0-13.2 km/h
Reverse
Infinite, 0-3.5 mph
Infinite, 0-5.6 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
With filter, dry, 5 qt
4.7 L -
Hydraulic oil cooler
Yes
-
Filter
Spin-on replaceable
-
Warranty
24 months
-
Drive wheels
18x10.5-10 Turf Master
-
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Tire engagement
-
Park brake actuation
Hand lever
-
Type
Electro-magnetic with brake, 125 lb-ft
169 Nm -
Drive
Dual B-section V-belt with Kevlar® cord
-
Size
52 in.
132 cm -
Deck construction
Fabricated steel, floating mount system
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
52 in.
132 cm
-
Length
18 in.
45.7 cm -
Thickness
0.203 in.
5.16 mm -
Blade tip speed
18,900 fpm
5,761 m/min -
Number
Three
-
Caster wheel type
No-flat semi-pneumatic with sealed bearings
-
Caster wheels
11x4.5-6
-
Front anti-scalp rollers
Single left, double-captured center
-
Length
59.75 in.
151.8 cm -
Width
Deflector down, 66 in.
167.6 cm -
Height
46 in.
117 cm -
Weight
With full fuel and oil, 828 lb
375 kg
Details:
Q820M
QuikTrak™ Stand-On Mower
- 23.5-hp (17.5-kW)
- 48”, 54”, and 60” 7Iron™ PRO decks
- Mow up to 10 mph
- Warranty: 36 months or 1200 hours, whichever comes first; First 24 months, no hour limitation
Features:
- Commercial-quality engine is reliable and provides excellent performance and life
- Durability and mowing performance from 7Iron™ PRO Mower Decks forged from a single piece of steel
- Spacious operator platform gives operators room to move
- Get operators up to speed with user-friendly controls
- Exclusive three-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Simple to clean and maintain
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Integrated transaxles have few potential leak points
- Safety features are built-in to protect the operator and bystanders
- Michelin® X® Tweel® Turf rear tire solution for QuikTrak™ R Series Mowers eliminates downtime
Specifications:
-
Engine Manufacturer/model
FX730V
-
Engine Power
Gross at 3,600 rpm: 23.5 hp
17.5 kW -
Fuel tank capacity
12 U.S. gal.
45.3 L -
Mower deck Size
48 in.
122 cm 7Iron™ PRO side-discharge
54 in.
137 cm 7Iron™ PRO side-discharge
60 in.
152 cm 7Iron™ PRO side-discharge -
Blade tip speed
18,000 fpm
5,486 m/min -
Transmission
Tuff Torq TZT13 IHT
-
Speed range
0-10 mph
0-16.1 km/h -
Drive wheels
22x10-12 pneumatic (48 in.)
22x12-12 pneumatic(54-60 in)
22x11-12 Tweel -
Caster wheels
13x5-6
-
Warranty
36 months
-
Manufacturer/Model
FX730V
-
Power
Gross at 3,600 rpm: 23.5 hp
17.5 kW -
Displacement
44.3 cu in.
726 cc -
Cylinders
Two, V-twin
-
Crankcase capacity
With filter, 2.2 qt
2.1 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air, with integrated clean out ports
-
Air cleaner
Heavy-duty type with safety element
-
Fuel type
Gasoline
-
Fuel tank capacity
12 U.S. gal.
45.3 L -
Fuel tank switch/shut-off valve
No
-
Charge system
At 3,600 rpm, 20 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 CCA
-
Hour meter
Display panel including hour meter, fuel level, engine speed, system voltage, low engine oil pressure indicator, starting interlock indicators (PTO, operator presence, park brake), caution warning, stop warning, and on-board diagnostics
-
Operator presence starting system
Yes
-
Transmission
Tuff Torq TZT13 IHT
-
Hydraulic pumps
0.79 cu in.
13 cc -
Wheel motors
13 cu in.
213 cc -
Travel speed
Speed range
0-10 mph
0-16.1 km/h
Forward
Infinite: 0-10 mph
Infinite, 0-16.1 km/h
Reverse
Infinite, 0-5 mph
Infinite, 0-8 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
6 qt
5.7 L -
Hydraulic oil cooler
Two 8.5 in (22 cm) fans
-
Filter
Two internal and replaceable
-
Warranty
36 months
-
Drive wheels
20x10-12 pneumatic
22x12-12 pneumatic
22x11N12 Tweel -
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Internal wet desk
-
Park brake actuation
Hand lever
-
Type
Electro-magnetic with brake, 125 lb-ft
169 Nm
Electro-magnetic with brake, 200 lb-ft
271 Nm -
Drive
V-belt
-
Size
48 in.
122 cm 7Iron™ PRO side-discharge
54 in.
137 cm 7Iron™ PRO side-discharge
60 in.
152 cm 7Iron™ PRO side-discharge -
Deck construction
7-Iron™ PRO: one-piece forged steel
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
48 in.
122 cm 7Iron™ PRO side-discharge
54 in.
137 cm 7Iron™ PRO side-discharge
60 in.
152 cm 7Iron™ PRO side-discharge
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
18,000 fpm
5,486 m/min -
Number
Three
-
Caster wheel type
Flat free
-
Caster wheels
13x5-6
-
Front anti-scalp rollers
RH, center, LH
-
Length
Foot platform up, 67.25 in.
171 cm
Foot platform down, 72 in.
183 cm -
Width
With chute down, 62, 68, 74 in.
157, 173, 188 cm -
Height
48 in.
122 cm -
Weight
1045, 1070, 1095lb
474, 485, 497kg
Details:
Q850M
QuikTrak™ Stand-On Mower
- 27-hp (20.1-kW)
- 54” and 60” 7Iron™ PRO decks
- Mow up to 10 mph
- Warranty: 36 months or 1200 hours, whichever comes first; First 24 months, no hour limitation
Features:
- Commercial-quality engine is reliable and provides excellent performance and life
- Durability and mowing performance from 7Iron™ PRO Mower Decks forged from a single piece of steel
- Spacious operator platform gives operators room to move
- Get operators up to speed with user-friendly controls
- Exclusive three-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Simple to clean and maintain
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Integrated transaxles have few potential leak points
- Safety features are built-in to protect the operator and bystanders
- Michelin® X® Tweel® Turf rear tire solution for QuikTrak™ R Series Mowers eliminates downtime
Specifications:
-
Engine Manufacturer/model
FX850V
-
Engine Power
Gross at 3,600 rpm: 27 hp
20.1 kW -
Fuel tank capacity
12 U.S. gal.
45.3 L -
Mower deck Size
54 in.
137 cm 7Iron™ PRO side-discharge
60 in.
152 cm 7Iron™ PRO side-discharge -
Blade tip speed
18,000 fpm
5,486 m/min -
Transmission
Tuff Torq TZT13 IHT
-
Speed range
0-10 mph
0-16.1 km/h -
Drive wheels
22x12-12 pneumatic
22x11-12 Tweel -
Caster wheels
13x5-6
-
Warranty
36 months
-
Manufacturer/Model
FX850V
-
Power
Gross at 3,600 rpm: 27 hp
20.1 kW -
Displacement
52 cu in.
852 cc -
Cylinders
Two, V-twin
-
Crankcase capacity
With filter, 2.4 qt
2.3 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air, with integrated clean out ports and oil cooler
-
Air cleaner
Heavy-duty type with safety element
-
Fuel type
Gasoline
-
Fuel tank capacity
12 U.S. gal.
45.3 L -
Fuel tank switch/shut-off valve
No
-
Charge system
At 3,600 rpm, 20 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 CCA
-
Hour meter
Display panel including hour meter, fuel level, engine speed, system voltage, low engine oil pressure indicator, starting interlock indicators (PTO, operator presence, park brake), caution warning, stop warning, and on-board diagnostics
-
Operator presence starting system
Yes
-
Transmission
Tuff Torq TZT13 IHT
-
Hydraulic pumps
0.79 cu in.
13 cc -
Wheel motors
13 cu in.
213 cc -
Travel speed
Speed range
0-10 mph
0-16.1 km/h
Forward
Infinite: 0-10 mph
Infinite, 0-16.1 km/h
Reverse
Infinite, 0-5 mph
Infinite, 0-8 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
6 qt
5.7 L -
Hydraulic oil cooler
Two 8.5 in (22 cm) fans
-
Filter
Two internal and replaceable
-
Warranty
36 months
-
Drive wheels
22x12-12 pneumatic
22x11N12 Tweel -
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Internal wet desk
-
Park brake actuation
Hand lever
-
Type
Electro-magnetic with brake, 200 lb-ft
271 Nm -
Drive
V-belt
-
Size
54 in.
137 cm 7Iron™ PRO side-discharge
60 in.
152 cm 7Iron™ PRO side-discharge -
Deck construction
7-Iron™ PRO: one-piece forged steel
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
54 in.
137 cm 7Iron™ PRO side-discharge
60 in.
152 cm 7Iron™ PRO side-discharge
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
18,000 fpm
5,486 m/min -
Number
Three
-
Caster wheel type
Flat free
-
Caster wheels
13x5-6
-
Front anti-scalp rollers
RH, center, LH
-
Length
Foot platform up, 67.25 in.
171 cm
Foot platform down, 72 in.
183 cm -
Width
With chute down, 68, 74 in.
173, 188 cm -
Height
48 in.
122 cm -
Weight
1095, 1120 lb
497, 508kg
R Series
Available models: 648R652R652R EFI661R661R EFIQ850RQ865R EFI
Details:
648R
QuikTrak™ Stand-On Mower
- Compact design for easy hauling
- Hydrostatic drive system
- Commercial-quality engine
- Easy to maintain
Features:
- Commercial-quality engine is reliable and provides excellent performance and life
- 48-in. (122-cm) fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive two-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
- Michelin® X® Tweel® Turf rear tire solution for QuikTrak™ R Series Mowers eliminates downtime
- Field-installed propane conversion kits for commercial walk-behind mowers, QuikTrak™ mowers, and commercial ZTrak™ mowers
Specifications:
-
Engine Manufacturer/model
FX691V
-
Engine Power
Gross at 3,600 rpm: 22 hp
16.4 kW -
Fuel tank capacity
5.6 U.S. gal.
21.2 L -
Mower deck Size
48 in.
122 cm -
Blade tip speed
18,900 fpm
5,761 m/min -
Transmission
Hydrostatic
-
Speed range
0-9.6 mph
0-15.4 km/h -
Drive wheels
20x10-8 Turf Master
-
Caster wheels
13x6.5-6
-
Warranty
24 months
-
Manufacturer/Model
FX691V
-
Power
Gross at 3,600 rpm: 22 hp
16.4 kW -
Displacement
44.3 cu in.
726 cc -
Cylinders
Two, V-twin
-
Crankcase capacity
With filter, 2.2 U.S. qt
2.1 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air
-
Air cleaner
Heavy-duty canister type with safety element
-
Fuel type
Gasoline
-
Fuel tank capacity
5.6 U.S. gal.
21.2 L -
Fuel tank switch/shut-off valve
Yes
-
Charge system
At 3,600 rpm, 20 amp
-
Battery voltage
12 V
-
Hour meter
Digital
-
Operator presence starting system
Yes
-
Transmission
Hydrostatic
-
Hydraulic pumps
Hydro-Gear with fans, 0.73 cu in.
12 cc -
Wheel motors
Hydro-Gear, 15 cu in.
246 cc -
Travel speed
Forward
0-9.6 mph
0-15.4 km/h
Reverse
0-5.5 mph
0-8.9 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
With filter-wet, 2.9 qt
2.7 L
Dry, 5 qt
4.7 L -
Filter
Spin-on replaceable
-
Warranty
24 months
-
Drive wheels
20x10-8 Turf Master
-
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Tire engagement
-
Park brake actuation
Hand lever
-
Type
Electro-Magnetic with brake, 200 lb-ft
271 Nm -
Drive
Dual B-section V-belt with Kevlar® cord
-
Size
48 in.
122 cm -
Deck construction
Fabricated steel, floating mount system
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
48 in.
122 cm
-
Blade tip speed
18,900 fpm
5,761 m/min -
Number
Three
-
Caster wheel type
No-flat semi-pneumatic with sealed bearings
-
Caster wheels
13x6.5-6
-
Length
66 in.
167.6 cm -
Width
Deflector down, 62 in.
157.4 cm -
Height
47 in.
119 cm -
Weight
910 lb
412.8 kg
Details:
652R
QuikTrak™ Stand-On Mower
- Compact design for easy hauling
- Hydrostatic drive system
- Commercial-quality engine
- Easy to maintain
Features:
- Commercial-quality engine is reliable and provides excellent performance and life
- 52-in. (132-cm) fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive two-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
- Michelin® X® Tweel® Turf rear tire solution for QuikTrak™ R Series Mowers eliminates downtime
- Field-installed propane conversion kits for commercial walk-behind mowers, QuikTrak™ mowers, and commercial ZTrak™ mowers
Specifications:
-
Engine Manufacturer/model
FX730V
-
Engine Power
Gross at 3,600 rpm: 23.5 hp
17.5 kW -
Fuel tank capacity
5.6 U.S. gal.
21.2 L -
Mower deck Size
52 in.
132 cm -
Blade tip speed
18,900 fpm
5,761 m/min -
Transmission
Hydrostatic
-
Speed range
0-9.6 mph
0-15.4 km/h -
Drive wheels
20x10-8 Turf Master
-
Caster wheels
13x6.5-6
-
Warranty
24 months
-
Manufacturer/Model
FX730V
-
Power
Gross at 3,600 rpm: 23.5 hp
17.5 kW -
Displacement
44.3 cc
726 cu in. -
Cylinders
Two, V-twin
-
Crankcase capacity
With filter, 2.2 qt
2.1 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air
-
Air cleaner
Heavy-duty canister type with safety element
-
Fuel type
Gasoline
-
Fuel tank capacity
5.6 U.S. gal.
21.2 L -
Fuel tank switch/shut-off valve
Yes
-
Charge system
At 3,600 rpm, 20 amp
-
Battery voltage
12 V
-
Hour meter
Digital
-
Operator presence starting system
Yes
-
Transmission
Hydrostatic
-
Hydraulic pumps
Hydro-Gear with fans, 0.73 cu in.
12 cc -
Wheel motors
Hydro-Gear, 15 cu in.
246 cc -
Travel speed
Speed range
0-9.6 mph
0-15.4 km/h
Forward
0-9.6 mph
0-15.4 km/h
Reverse
0-5.5 mph
0-8.9 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
With filter-wet, 2.9 qt
2.7 L
Dry, 5 qt
4.7 L -
Filter
Spin-on replaceable
-
Warranty
24 months
-
Drive wheels
20x10-8 Turf Master
-
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Tire engagement
-
Park brake actuation
Hand lever
-
Type
Electro-Magnetic with brake, 200 lb-ft
271 Nm -
Drive
Dual B-section V-belt with Kevlar® cord
-
Size
52 in.
132 cm -
Deck construction
Fabricated steel, floating mount system
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
52 in.
132 cm
-
Blade tip speed
18,900 fpm
5,761 m/min -
Number
Three
-
Caster wheel type
No-flat semi-pneumatic with sealed bearings
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
Center, left
-
Length
66 in.
167.6 cm -
Width
Deflector down, 66 in.
167.6 cm -
Height
47 in.
119 cm -
Weight
927 lb
420.5 kg
Details:
652R EFI
QuikTrak™ Stand-On Mower
- Compact design for easy hauling
- Hydrostatic drive system
- Commercial-quality engine
- Easy to maintain
Features:
- Maximize performance and efficiency with a powerful, electronic fuel injection (EFI) engine
- 52-in. (132-cm) fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive two-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
- Michelin® X® Tweel® Turf rear tire solution for QuikTrak™ R Series Mowers eliminates downtime
Specifications:
-
Engine Manufacturer/model
ECV740 EFI
-
Engine Power
Gross at 3,600 rpm: 20 hp
18.6 kW -
Fuel tank capacity
5.6 U.S. gal.
21.2 L -
Mower deck Size
52 in.
132 cm -
Blade tip speed
18,900 fpm
5,761 m/min -
Transmission
Hydrostatic
-
Speed range
0-9.5 mph
0-15.3 km/h -
Drive wheels
20x10-8 Turf Master
-
Caster wheels
13x6.5-6
-
Warranty
24 months
-
Manufacturer/Model
ECV740 EFI
-
Power
Gross at 3,600 rpm: 20 hp
18.6 kW -
Displacement
45.6 cu in.
747 cc -
Cylinders
Two, V-twin
-
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air
-
Air cleaner
Heavy-duty canister with safety element
-
Fuel type
Gasoline, electronic fuel injection
-
Fuel tank capacity
5.6 U.S. gal.
21.2 L -
Fuel tank switch/shut-off valve
Yes
-
Charge system
At 3,600 rpm, 20 amp
-
Battery voltage
12 V
-
Hour meter
Digital
-
Operator presence starting system
Yes
-
Transmission
Hydrostatic
-
Hydraulic pumps
Hydro-Gear with fans, 0.73 cu in.
12 cc -
Wheel motors
Hydro-Gear, 15 cu in.
246 cc -
Travel speed
Speed range
0-9.5 mph
0-15.3 km/h
Forward
0-9.5 mph
0-15.3 km/h
Reverse
0-5.5 mph
0-8.9 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
With filter-wet, 2.9 qt
2.7 L
Dry, 5 qt
4.7 L -
Filter
Spin-on replaceable
-
Warranty
24 months
-
Drive wheels
20x10-8 Turf Master
-
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Tire engagement
-
Park brake actuation
Hand lever
-
Type
Electro-Magnetic with brake, 200 lb-ft
271 Nm -
Drive
Dual B-section V-belt with Kevlar® cord
-
Size
52 in.
132 cm -
Deck construction
Fabricated steel, floating mount system
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
52 in.
132 cm
-
Blade tip speed
18,900 fpm
5,761 m/min -
Number
Three
-
Caster wheel type
No-flat semi-pneumatic with sealed bearings
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
Center, left
-
Length
66 in.
167.6 cm -
Width
Deflector down, 66 in.
167.6 cm -
Height
47 in.
119 cm -
Weight
927 lb
420.5 kg
Details:
661R
QuikTrak™ Stand-On Mower
- Compact design for easy hauling
- Hydrostatic drive system
- Commercial-quality engine
- Easy to maintain
Features:
- Commercial-quality engine is reliable and provides excellent performance and life
- 61-in. (155-cm) fabricated mower deck is stamped from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive two-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
- Michelin® X® Tweel® Turf rear tire solution for QuikTrak™ R Series Mowers eliminates downtime
- Field-installed propane conversion kits for commercial walk-behind mowers, QuikTrak™ mowers, and commercial ZTrak™ mowers
Specifications:
-
Engine Manufacturer/model
FX730V
-
Engine power
Gross at 3,600 rpm: 23.5 hp
17.5 kW -
Fuel tank capacity
5.6 U.S. gal.
21.2 L -
Mower deck size
61 in.
155 cm -
Blade tip speed
18,900 rpm
5,761 rpm -
Transmission
Hydrostatic
-
Speed range
0-9.6 mph
0-15.4 km/h -
Drive wheels
20x10-8 Turf Master
-
Caster wheels
13x6.5-6
-
Warranty
24 months
-
Manufacturer/Model
FX730V
-
Power
Gross at 3,600 rpm: 23.5 hp
17.5 kW -
Displacement
44.3 cu in.
726 cc -
Cylinders
Two, V-twin
-
Crankcase capacity
With filter, 2.2 qt
2.1 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air
-
Air cleaner
Heavy-duty canister type with safety element
-
Fuel type
Gasoline
-
Fuel tank capacity
5.6 U.S. gal.
21.2 L -
Fuel tank switch/shut-off valve
Yes
-
Charge system
At 3,600 rpm, 20 amp
-
Battery voltage
12 V
-
Hour meter
Digital
-
Operator presence starting system
Yes
-
Transmission
Hydrostatic
-
Hydraulic pumps
Hydro-Gear with fans, 0.73 cu in.
12 cc -
Wheel motors
Hydro-Gear, 15 cu in.
246 cc -
Travel speed
Speed range
0-9.6 mph
Forward
0-9.6 mph
0-15.4 km/h
Reverse
0-5.5 mph
0-8.9 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
With filter-wet, 2.9 qt
2.7 L
Dry, 5 qt
4.7 L -
Filter
Spin-on replaceable
-
Warranty
24 months
-
Drive wheels
20x10-8 Turf Master
-
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Tire engagement
-
Park brake actuation
Hand lever
-
Type
Electro-Magnetic with brake, 200 lb-ft
271 Nm -
Drive
Dual B-section V-belt with Kevlar® cord
-
Size
61 in.
155 cm -
Deck construction
Fabricated steel, floating mount system
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
61 in.
155 cm
-
Blade tip speed
18,900 fpm
5,761 m/min -
Number
Three
-
Caster wheel type
No-flat semi-pneumatic with sealed bearings
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
Center, left
-
Length
68 in.
172.7 cm -
Width
Deflector down, 75 in.
190.5 cm -
Height
47 in.
119 cm -
Weight
998 lb
452.7 kg
Details:
661R EFI
QuikTrak™ Stand-On Mower
- Compact design for easy hauling
- Hydrostatic drive system
- Commercial-quality engine
- Easy to maintain
Features:
- Maximize performance and efficiency with a powerful, electronic fuel injection (EFI) engine
- 61-in. (155-cm) fabricated mower deck is stamped from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive two-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
- Michelin® X® Tweel® Turf rear tire solution for QuikTrak™ R Series Mowers eliminates downtime
Specifications:
-
Engine Manufacturer/model
ECV740 EFI
-
Engine Power
Gross at 3,600 rpm: 25 hp
18.6 kW -
Fuel tank capacity
5.6 U.S. gal.
21.2 L -
Mower deck Size
61 in.
155 cm -
Blade tip speed
18,900 fpm
5,761 m/min -
Transmission
Hydrostatic
-
Speed range
0-9.6 mph
0-15.4 km/h -
Drive wheels
20x10-8 Turf Master
-
Caster wheels
13x6.5-6
-
Warranty
24 months
-
Manufacturer/Model
ECV740 EFI
-
Power
Gross at 3,600 rpm: 25 hp
18.6 kW -
Displacement
45.6 cu in.
747 cc -
Cylinders
Two, V-twin
-
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air
-
Air cleaner
Heavy-duty canister with safety element
-
Fuel type
Gasoline, electronic fuel injection,
-
Fuel tank capacity
5.6 U.S. gal.
21.2 L -
Fuel tank switch/shut-off valve
Yes
-
Charge system
At 3,600 rpm. 20 amp
-
Battery voltage
12 V
-
Hour meter
Digital
-
Operator presence starting system
Yes
-
Transmission
Hydrostatic
-
Hydraulic pumps
Hydro-Gear with fans, 0.73 cu in.
12 cc -
Wheel motors
Hydro-Gear, 15 cu in.
246 cc -
Travel speed
Speed range
0-9.6 mph
0-15.4 km/h
Forward
0-9.6 mph
0-15.4 km/h
Reverse
0-5.5 mph
0-8.9 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
With filter-wet, 2.9 qt
2.7 L
Dry, 5 qt
4.7 L -
Filter
Spin-on replaceable
-
Warranty
24 months
-
Drive wheels
20x10-8 Turf Master
-
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Tire engagement
-
Park brake actuation
Hand lever
-
Type
Electro-Magnetic with brake, 200 lb-ft
271 Nm -
Drive
Dual B-section V-belt with Kevlar® cord
-
Size
61 in.
155 cm -
Deck construction
Fabricated steel, floating mount system
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
61 in.
155 cm
-
Blade tip speed
18,900 fpm
5,761 m/min -
Number
Three
-
Caster wheel type
No-flat semi-pneumatic with sealed bearings
-
Caster wheels
13x6.5-6
-
Front anti-scalp rollers
Center, left
-
Length
68 in.
172.7 cm -
Width
Deflector down, 75 in.
190.5 cm -
Height
47 in.
119 cm -
Weight
998 lb
452.7 kg
Details:
Q850R
QuikTrak™ Stand-On Mower
- 27-hp (20.1-kW)
- 54” and 60” 7Iron™ PRO decks
- Mow up to 12 mph
- Warranty: 36 months or 1500 hours, whichever comes first; First 24 months, no hour limitation
Features:
- Commercial-quality engine is reliable and provides excellent performance and life
- Durability and mowing performance from 7Iron™ PRO Mower Decks forged from a single piece of steel
- Spacious operator platform gives operators room to move
- Get operators up to speed with user-friendly controls
- Exclusive three-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Simple to clean and maintain
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Integrated transaxles have few potential leak points
- Safety features are built-in to protect the operator and bystanders
- Michelin® X® Tweel® Turf rear tire option eliminates downtime
Specifications:
-
Engine Manufacturer/model
FX850V
-
Engine Power
Gross at 3,600 rpm: 27 hp
20.1 kW -
Fuel tank capacity
12 U.S. gal.
45.3 L -
Mower deck Size
54 in.
137 cm 7Iron™ PRO side-discharge
60 in.
152 cm 7Iron™ PRO side-discharge -
Blade tip speed
18,000 fpm
5,486 m/min -
Transmission
Tuff Torq TZT13 IHT
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
24x12-12 pneumatic
24x12N12 Tweel -
Caster wheels
13x5-6
-
Warranty
36 months
-
Manufacturer/Model
FX850V
-
Power
Gross at 3,600 rpm: 27 hp
20.1 kW -
Displacement
52 cu in.
852 cc -
Cylinders
Two, V-twin
-
Crankcase capacity
With filter, 2.4 qt
2.3 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air, with integrated clean out ports and oil cooler
-
Air cleaner
Heavy-duty canister type with safety element
-
Fuel type
Gasoline
-
Fuel tank capacity
12 U.S. gal.
45.3 L -
Fuel tank switch/shut-off valve
No
-
Charge system
At 3,600 rpm, 20 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 CCA
-
Hour meter
Display panel including hour meter, fuel level, engine speed, system voltage, low engine oil pressure indicator, starting interlock indicators (PTO, operator presence, park brake), caution warning, stop warning, and on-board diagnostics
-
Operator presence starting system
Yes
-
Transmission
Tuff Torq TZT13 IHT
-
Hydraulic pumps
0.79 cu in.
13 cc -
Wheel motors
13 cu in.
213 cc -
Travel speed
Speed range
0-12 mph
0-19.3 km/h
Forward
Infinite: 0-12 mph
Infinite, 0-19.3 km/h
Reverse
Infinite, 0-6 mph
Infinite, 0-9.7 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
6 qt
5.7 L -
Hydraulic oil cooler
Two 8.5 in (22 cm) fans
-
Filter
Two internal and replaceable
-
Warranty
36 months
-
Drive wheels
24x12-12 pneumatic
24x12N12 Tweel -
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Internal wet desk
-
Park brake actuation
Hand lever
-
Type
Electro-magnetic with brake, 200 lb-ft
271 Nm -
Drive
V-belt
-
Size
54 in.
137 cm 7Iron™ PRO side-discharge
60 in.
152 cm 7Iron™ PRO side-discharge -
Deck construction
7-Iron™ PRO: one-piece forged steel
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
54 in.
137 cm 7Iron™ PRO side-discharge
60 in.
152 cm 7Iron™ PRO side-discharge
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
18,000 fpm
5,486 m/min -
Number
Three
-
Caster wheel type
Flat free
-
Caster wheels
13x5-6
-
Front anti-scalp rollers
RH, center, LH
-
Length
Foot platform up, 70 in.
183 cm
Foot platform down, 74.75 in.
190 cm -
Width
With chute down, 68, 74 in.
173, 188 cm -
Height
48 in.
122 cm -
Weight
1135, 1155 lb
515, 524kg
Details:
Q865R EFI
QuikTrak™ Stand-On Mower
- 34.5-hp (25.7-kW) EFI
- 60” 7Iron™ PRO deck
- Mow up to 12 mph
- Warranty: 36 months or 1500 hours, whichever comes first; First 24 months, no hour limitation
Features:
- V-twin engine has electronic fuel injection (EFI) and electronic throttle control for quick starts and superior performance
- Durability and mowing performance from 7Iron™ PRO Mower Decks forged from a single piece of steel
- Spacious operator platform gives operators room to move
- Get operators up to speed with user-friendly controls
- Exclusive three-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Simple to clean and maintain
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Integrated transaxles have few potential leak points
- Safety features are built-in to protect the operator and bystanders
- Michelin® X® Tweel® Turf rear tire option eliminates downtime
Specifications:
-
Engine Manufacturer/model
FX820V EFI
-
Engine Power
Gross at 3,600 rpm: 34.5 hp
25.7 kW -
Fuel tank capacity
12 U.S. gal.
45.3 L -
Mower deck Size
60 in.
152 cm 7Iron™ PRO side-discharge -
Blade tip speed
18,000 fpm
5,486 m/min -
Transmission
Tuff Torq TZT13 IHT
-
Speed range
0-12 mph
0-19.3 km/h -
Drive wheels
24x12-12 pneumatic
24x12N12 Tweel -
Caster wheels
13x5-6
-
Warranty
36 months
-
Manufacturer/Model
FX820V EFI
-
Power
Gross at 3,600 rpm: 34.5 hp
25.7 kW -
Displacement
50.2 cu in.
822 cc -
Cylinders
Two, V-twin
-
Crankcase capacity
With filter, 2.2 qt
2.1 L -
Oil filter
Full flow, replaceable
-
Lubrication
Full pressure
-
Cooling
Forced air, with integrated clean out ports and oil cooler
-
Air cleaner
Heavy-duty canister type with safety element
-
Fuel type
Gasoline
-
Fuel tank capacity
12 U.S. gal.
45.3 L -
Fuel tank switch/shut-off valve
No
-
Charge system
At 3,600 rpm, 30 amp
-
Battery voltage
12 V
-
Cold cranking amp
300 CCA
-
Hour meter
Display panel including hour meter, fuel level, engine speed, system voltage, low engine oil pressure indicator, starting interlock indicators (PTO, operator presence, park brake), caution warning, stop warning, and on-board diagnostics
-
Operator presence starting system
Yes
-
Transmission
Tuff Torq TZT13 IHT
-
Hydraulic pumps
0.79 cu in.
13 cc -
Wheel motors
13 cu in.
213 cc -
Travel speed
Speed range
0-12 mph
0-19.3 km/h
Forward
Infinite: 0-12 mph
Infinite, 0-19.3 km/h
Reverse
Infinite, 0-6 mph
Infinite, 0-9.7 km/h -
Speed and direction control
Twin hand-controlled levers
-
Hydraulic capacity
6 qt
5.7 L -
Hydraulic oil cooler
Two 8.5 in (22 cm) fans
-
Filter
Two internal and replaceable
-
Warranty
36 months
-
Drive wheels
24x12-12 pneumatic
24x12N12 Tweel -
Load rating
4 PR
-
Dynamic braking
Dual hand-controlled levers
-
Park brake
Internal wet desk
-
Park brake actuation
Hand lever
-
Type
Electro-magnetic with brake, 225 lb-ft
305 Nm -
Drive
V-belt
-
Size
60 in.
152 cm 7Iron™ PRO side-discharge -
Deck construction
7-Iron™ PRO: one-piece forged steel
-
Deck thickness
7 gauge
0.18 in.
4.6 mm -
Discharge
Side
-
Height-of-cut range
Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm -
Cutting width
60 in.
152 cm 7Iron™ PRO side-discharge
-
Thickness
0.25 in.
0.64 cm -
Blade tip speed
18,000 fpm
5,486 m/min -
Number
Three
-
Caster wheel type
Flat free
-
Caster wheels
13x5-6
-
Front anti-scalp rollers
RH, center, LH
-
Length
Foot platform up, 70 in.
183 cm
Foot platform down, 74.75 in.
190 cm -
Width
With chute down, 74 in.
188 cm -
Height
49 in.
124 cm -
Weight
1165 lb
528kg
Visit Little’s To Explore Your John Deere QuikTrak Mower Options
Stop by one of our five locations to get a close look at your John Deere stand-on QuikTrak mower options and take one for a test drive. Your Little’s sales guide is ready to help you find the right mower for your needs and provide more information on our financing and leasing options.
FIND A STORE NEAR ME
